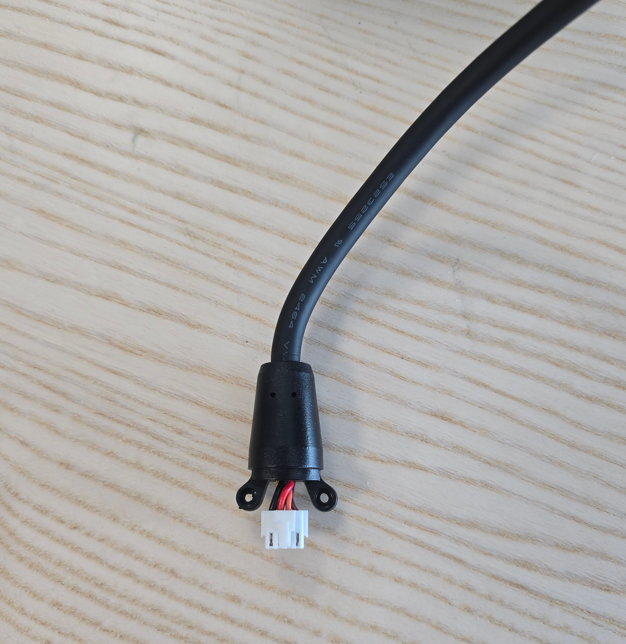

1. Extruder Cable
2. Cutter Sensor
3. X-Axis Limit Switch Cable

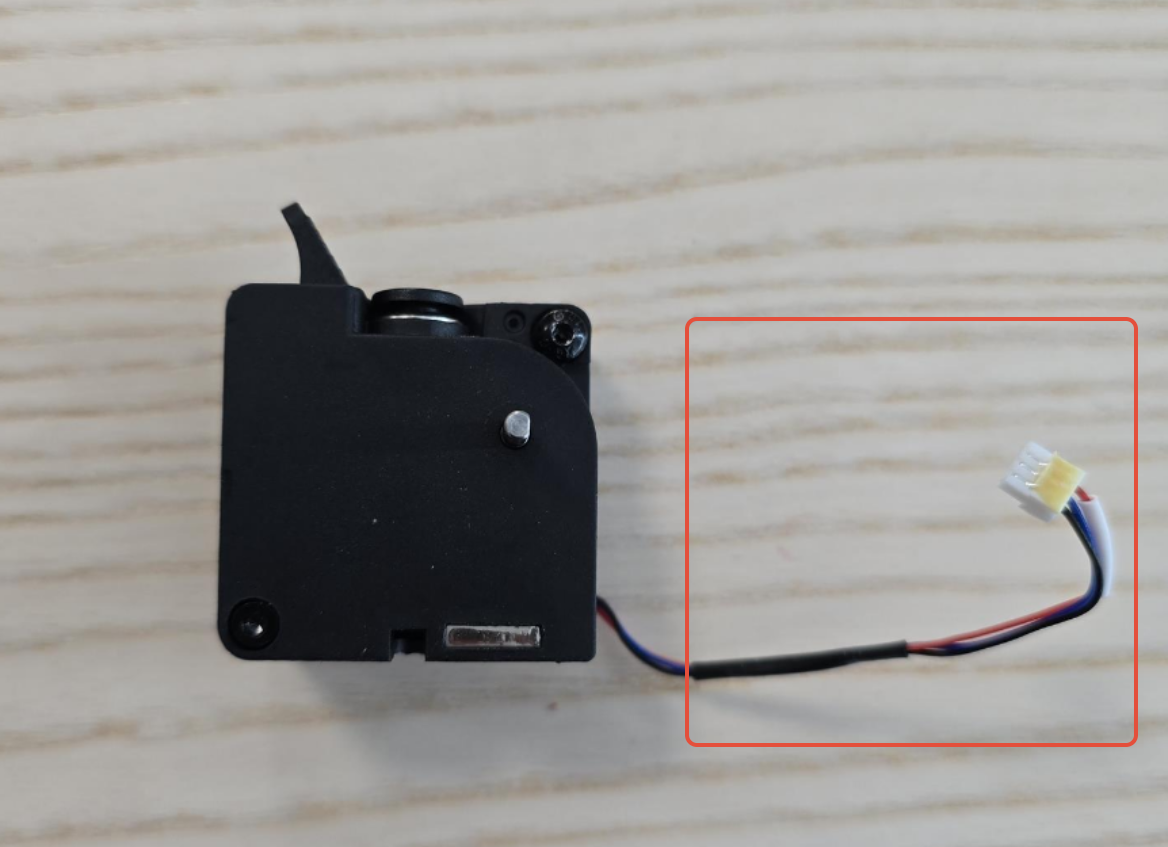

4. Filament Sensor Cable
5. Strain Gauge

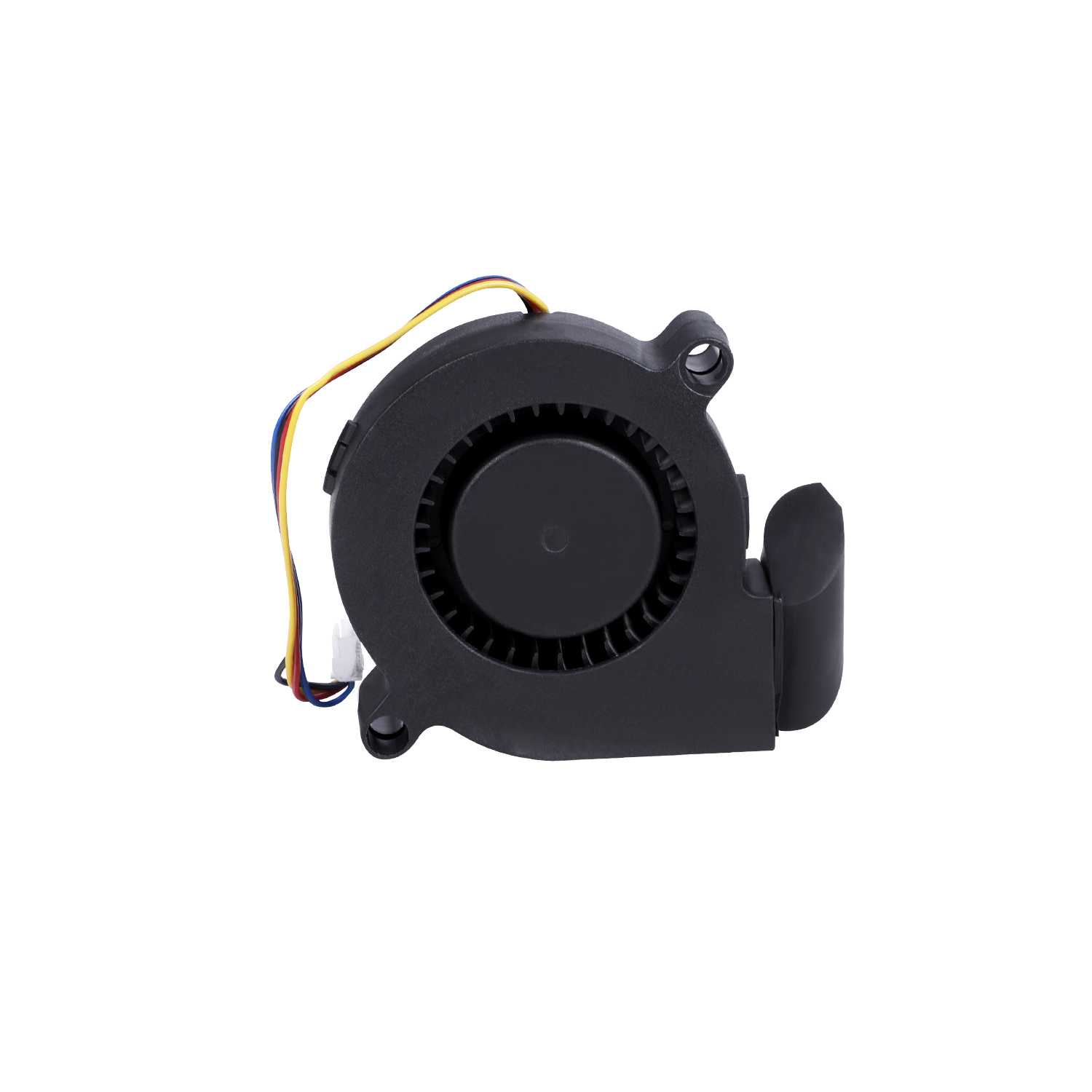

6. Right Model Fan

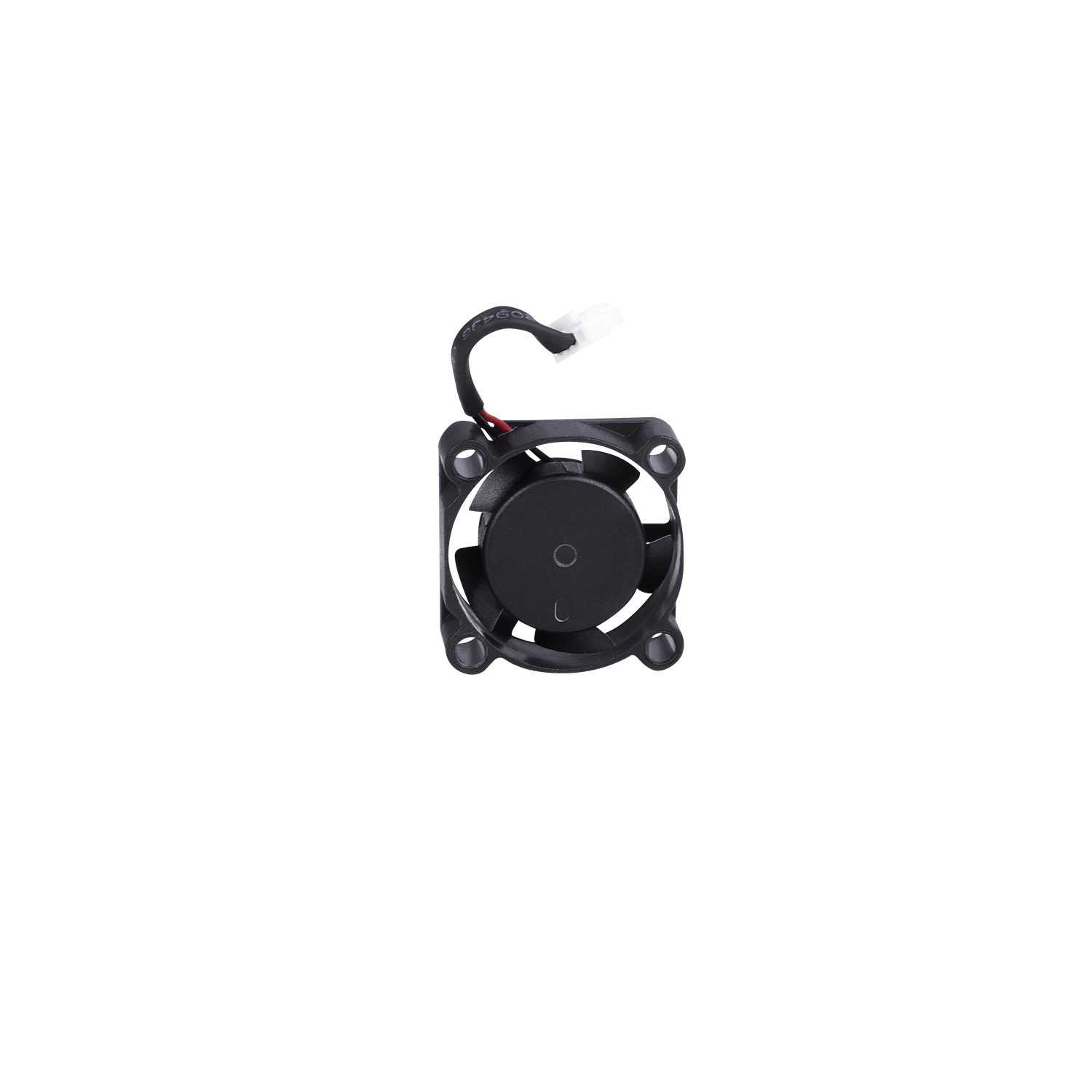

7. Hotend Fan
8. Left Model Fan

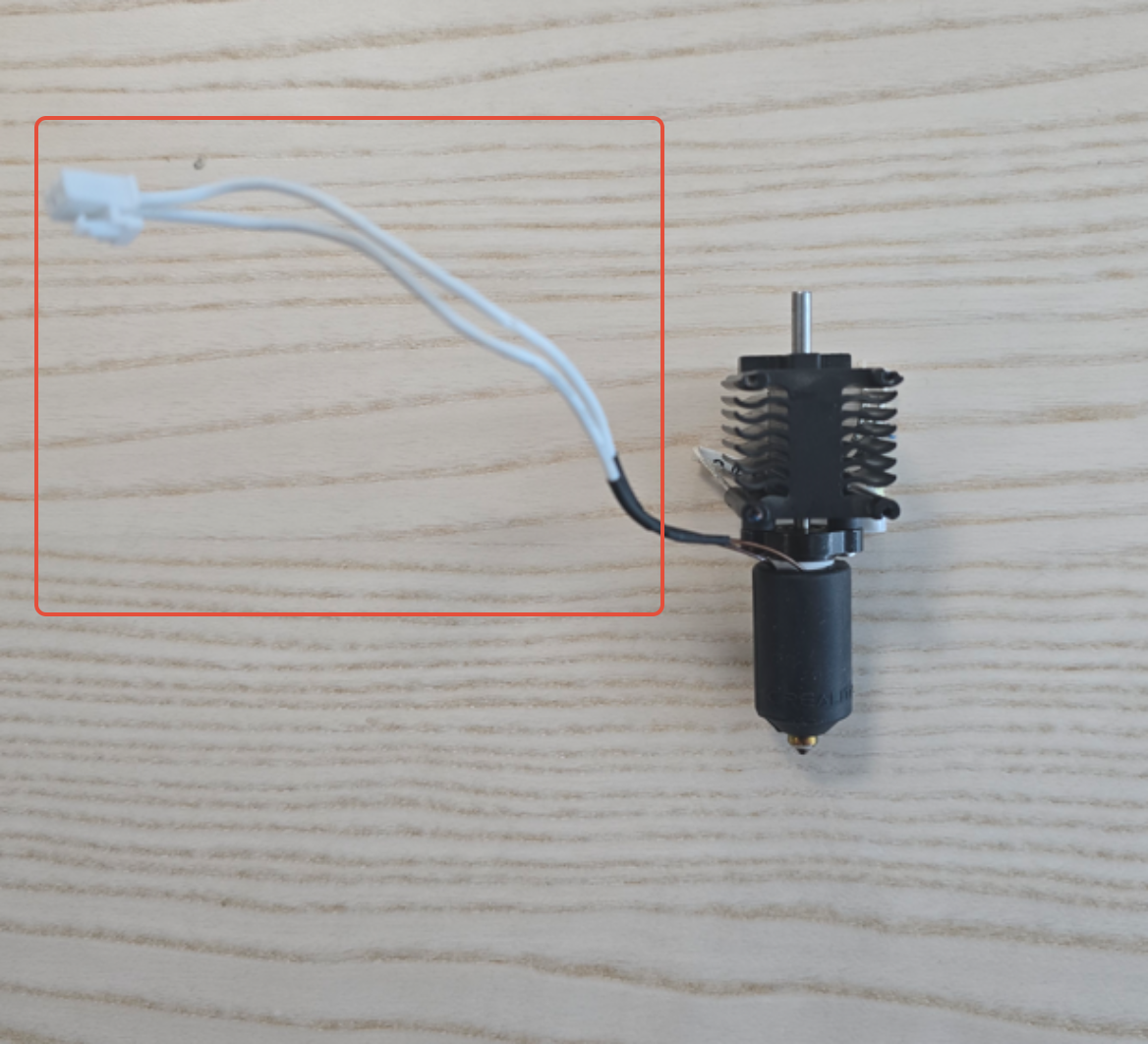

9. Thermistor

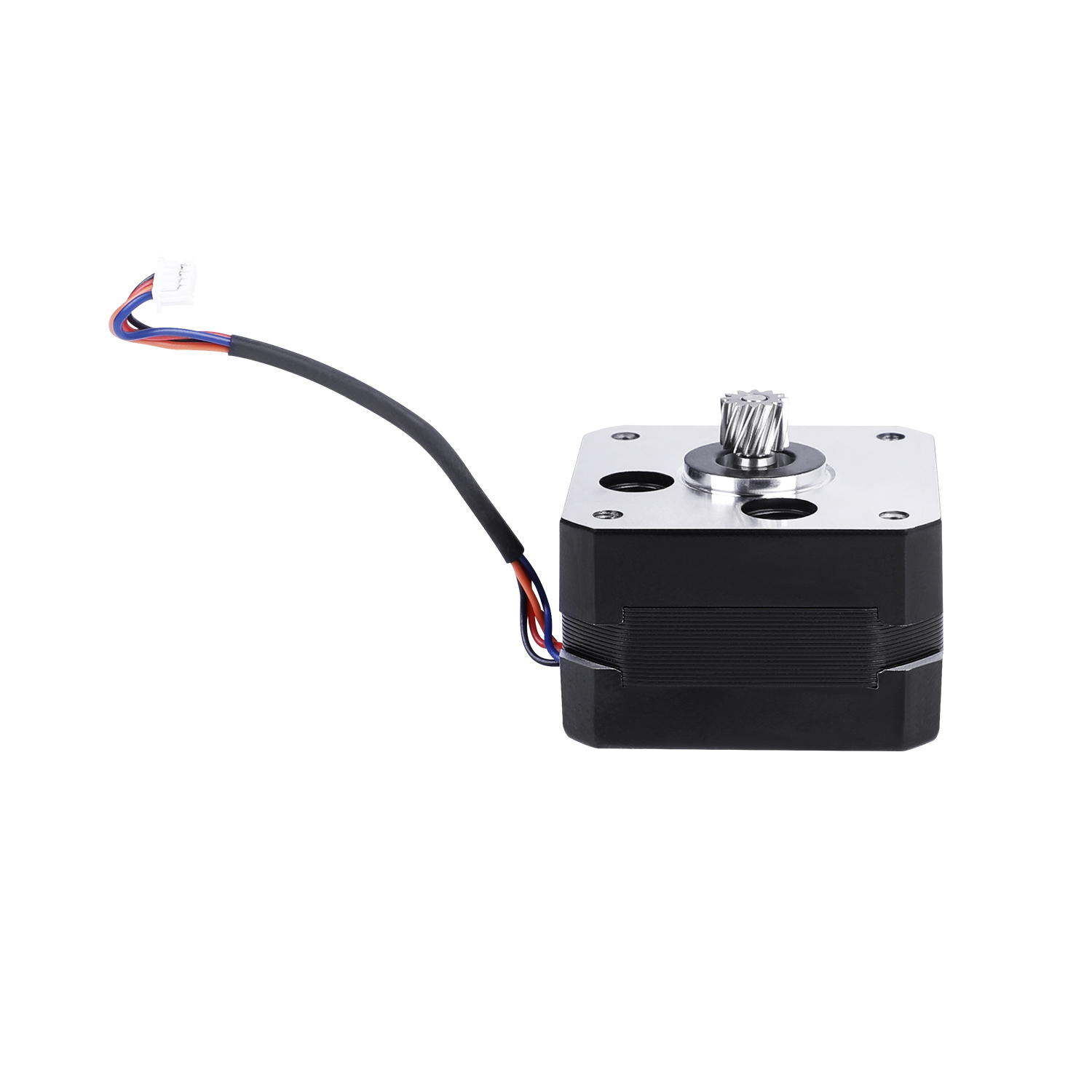

10. Extruder Motor

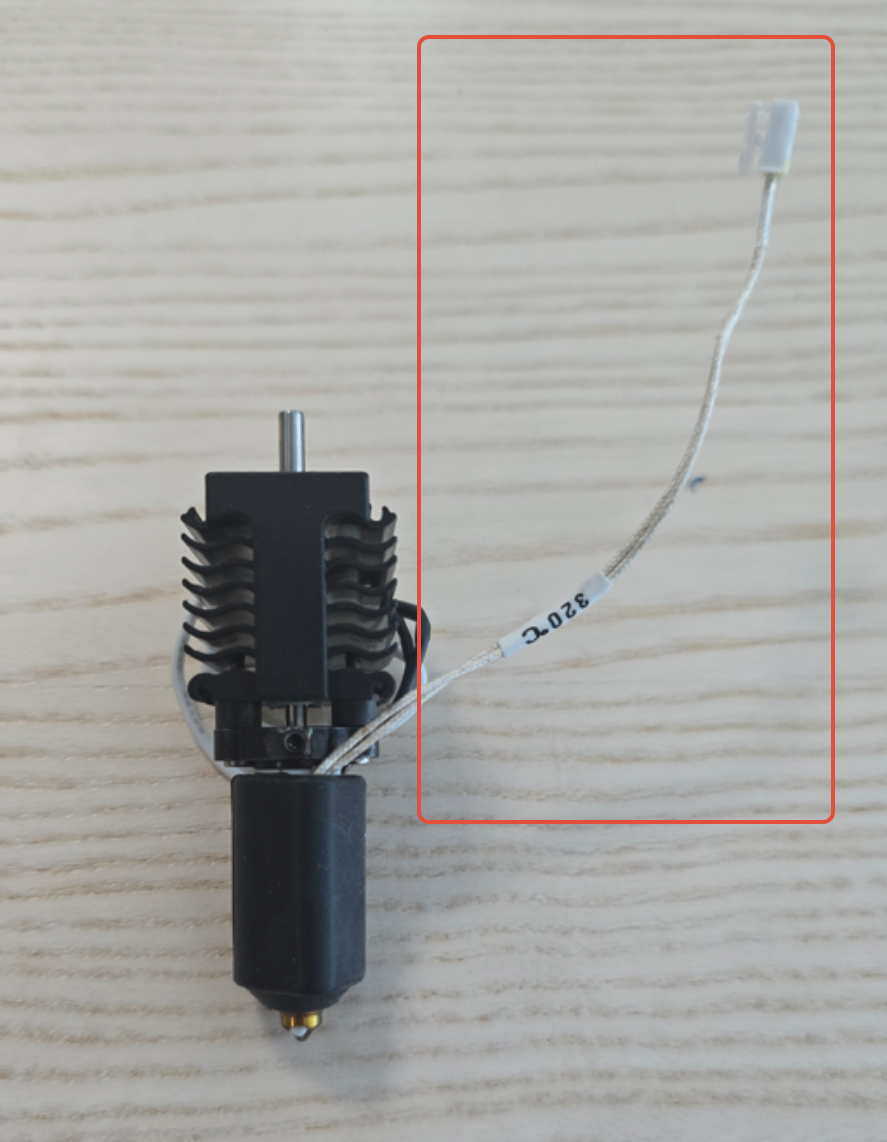

11. Heater
Creality Hi Extruder Board Connectors Overview Print
