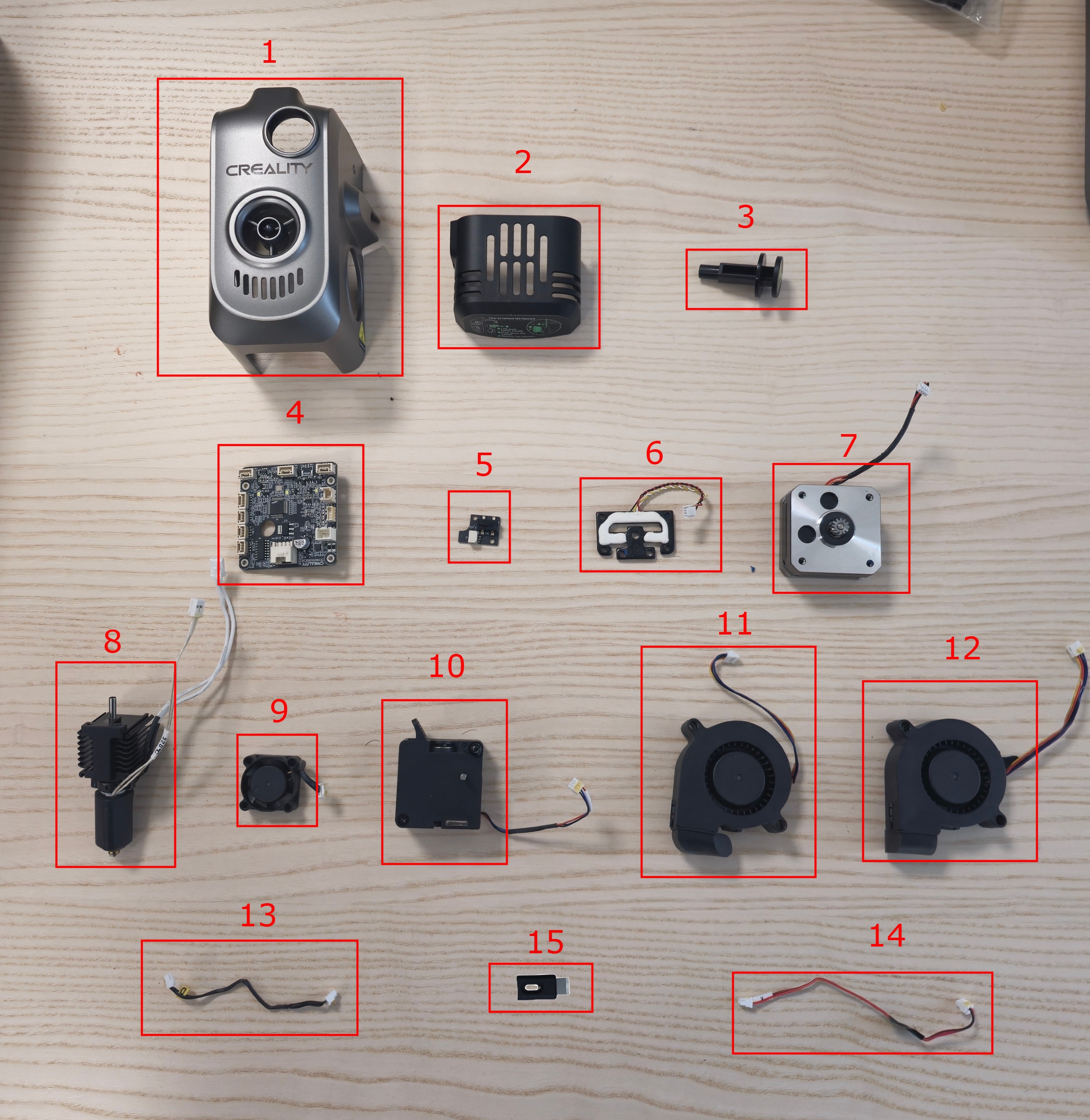

Creality Hi Tool Head Parts Overview
- Creality Hi Tool Head Parts Overview
- Picture
- 1. Front Tool Head Cover
- 2. Extruder Motor Cover
- 3. Extruder Indication Wheel
- 4. Extruder Board / Nozzle Plate
- 5. X-Axis Limit Switch
- 6. Strain Gauge
- 7. Extruder Motor / Extrusion Motor
- 8. Hotend
- 9. Hotend Fan / Heat Break Axial Fan
- 10. Extruder
- 11. Right Material Fan
- 12. Left Material Fan
- 13. Filament Sensor Cable
- 14. X-Axis Limit Switch Cable
- 15. Filament Cutter
- Picture
____________________________________________________________________________________
____________________________________________________________________________________
1. Front Tool Head Cover
- 3D Prima Item ID: Not For Sale - Contact Us If Needed
- Creality Item ID: 3203011260
____________________________________________________________________________________
2. Extruder Motor Cover
- 3D Prima Item ID: Not For Sale - Contact Us If Needed
- Creality Item ID: 3203011253
____________________________________________________________________________________
3. Extruder Indication Wheel
- 3D Prima Item ID: Not For Sale - Contact Us If Needed
- Creality Item ID: 3203011249
____________________________________________________________________________________
4. Extruder Board / Nozzle Plate
- 3D Prima Item ID: 31980
- Creality Item ID: 2101020288
- Link
- Replacement Guide
____________________________________________________________________________________
5. X-Axis Limit Switch
- 3D Prima Item ID: 31981
- Creality Item ID: 2101030265
- Link
- Replacement Guide
____________________________________________________________________________________
6. Strain Gauge
- 3D Prima Item ID: 31983
- Creality Item ID: 3205990692
- Link
- Replacement Guide
____________________________________________________________________________________
7. Extruder Motor / Extrusion Motor
- 3D Prima Item ID: 31986
- Creality Item ID: 3204120242
- Link
- Replacement Guide
____________________________________________________________________________________
8. Hotend
- 3D Prima Item ID: 32420
- Creality Item ID: 4001030150
- Link
- Replacement Guide
____________________________________________________________________________________
9. Hotend Fan / Heat Break Axial Fan
- 3D Prima Item ID: 31982
- Creality Item ID: 3205010417
- Link
- Replacement Guide
____________________________________________________________________________________
10. Extruder
- 3D Prima Item ID: 31985
- Creality Item ID: 4001020080
- Link
- Replacement Guide
____________________________________________________________________________________
11. Right Material Fan
- 3D Prima Item ID: 31984
- Creality Item ID: 3205010418
- Link
____________________________________________________________________________________
12. Left Material Fan
- 3D Prima Item ID: 31984
- Creality Item ID: 3205010418
- Link
____________________________________________________________________________________
13. Filament Sensor Cable
- 3D Prima Item ID: Not For Sale - Contact Us If Needed
- Creality Item ID: 3103090102
____________________________________________________________________________________
14. X-Axis Limit Switch Cable
- 3D Prima Item ID: Not For Sale - Contact Us If Needed
- Creality Item ID: 3103080144
____________________________________________________________________________________
15. Filament Cutter
- 3D Prima Item ID: 31993
- Creality Item ID: 4004010262
- Link
- Replacement Guide
____________________________________________________________________________________
