Creality Hi Filament Cutter Replacement


____________________________________________________________________________________



Introduction


This guide will walk you through the process of disassembling the print head and replacing the filament cutter on the extruder.


Important Notes

  1. Strong Yellow Glue: The connectors on the Extruder is secured with a strong yellow glue. You may need to carefully cut or gently wiggle the connectors to release them. Avoid forcing the connector, as this could damage both the Extruder Board and the cable.


Tools needed


2mm Hex Driver or Hex Key


2.5mm Hex Driver or Hex Key

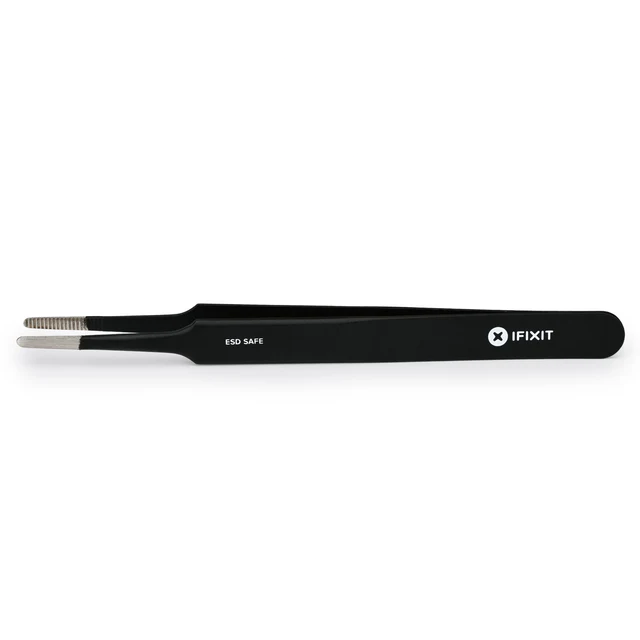

Precision Tweezers (for easier connector removal)


____________________________________________________________________________________

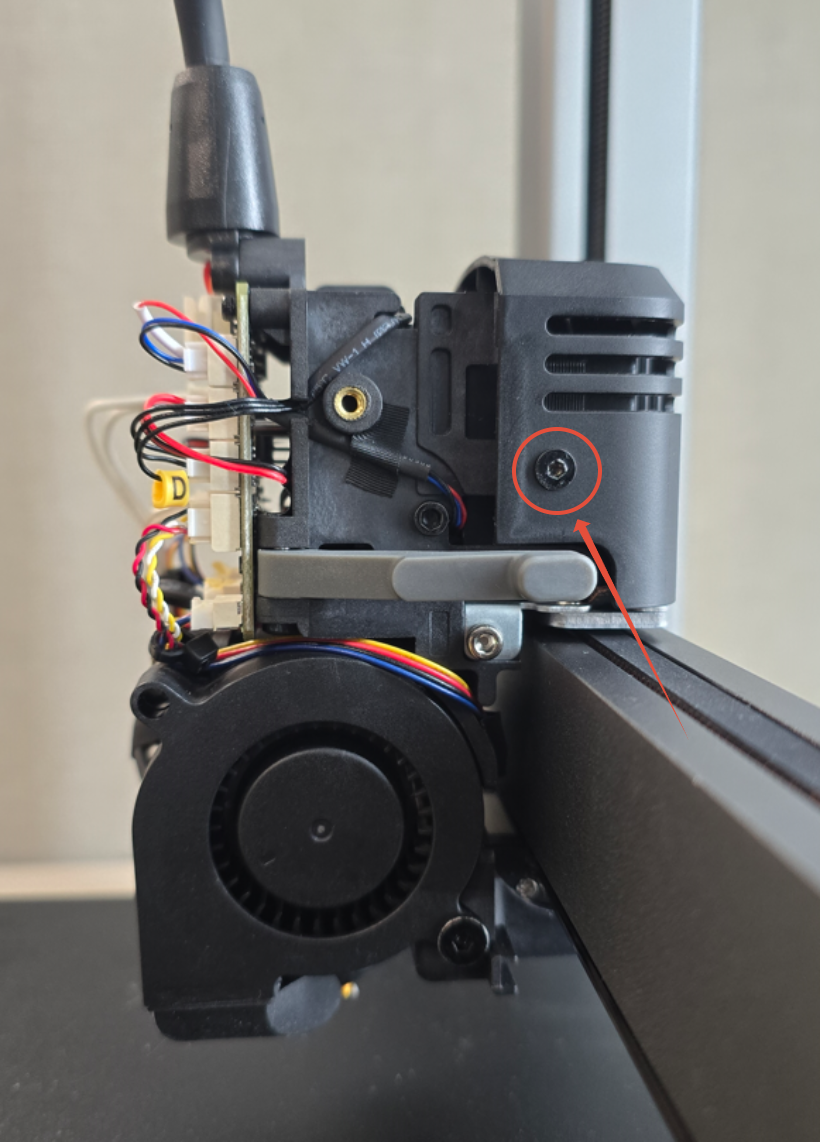

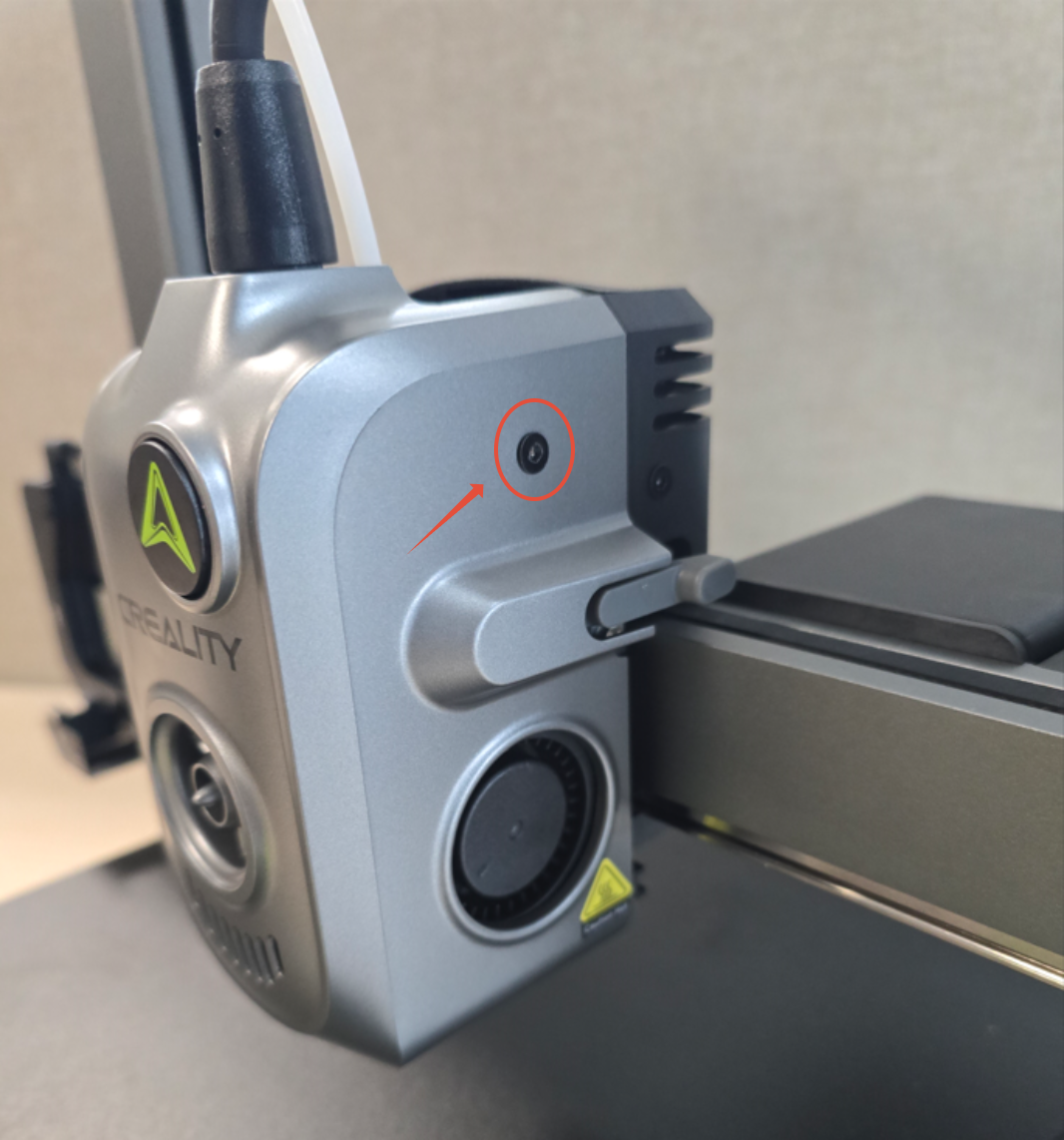

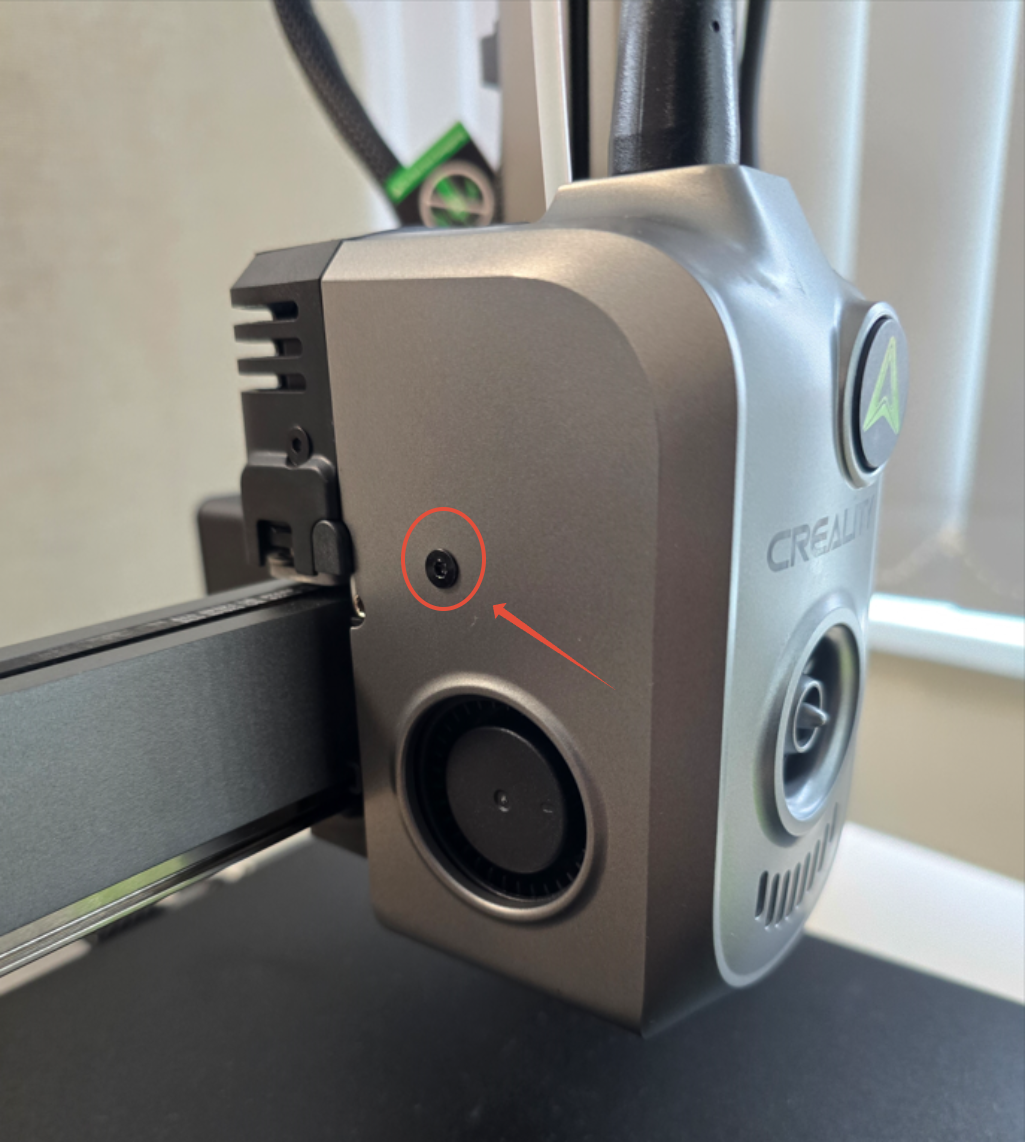

Step 1. Unscrew the 2 Screws holding the Front Tool Head Cover

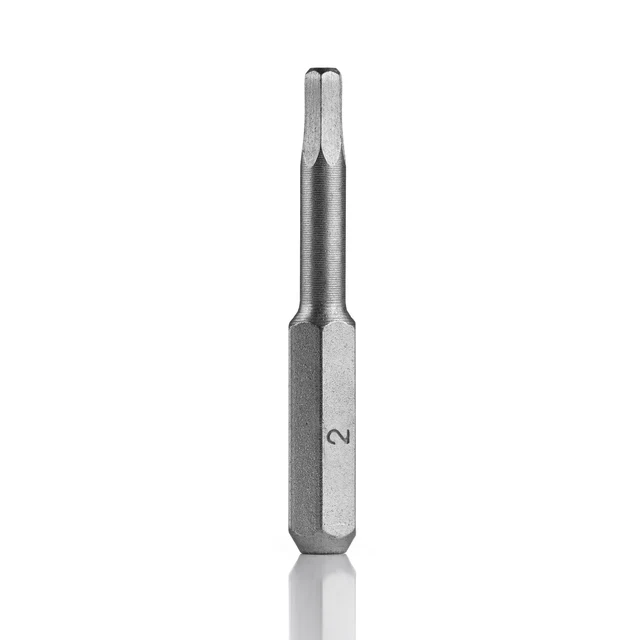

Use your 2mm Hex driver to remove the screws securing the front cover.


____________________________________________________________________________________

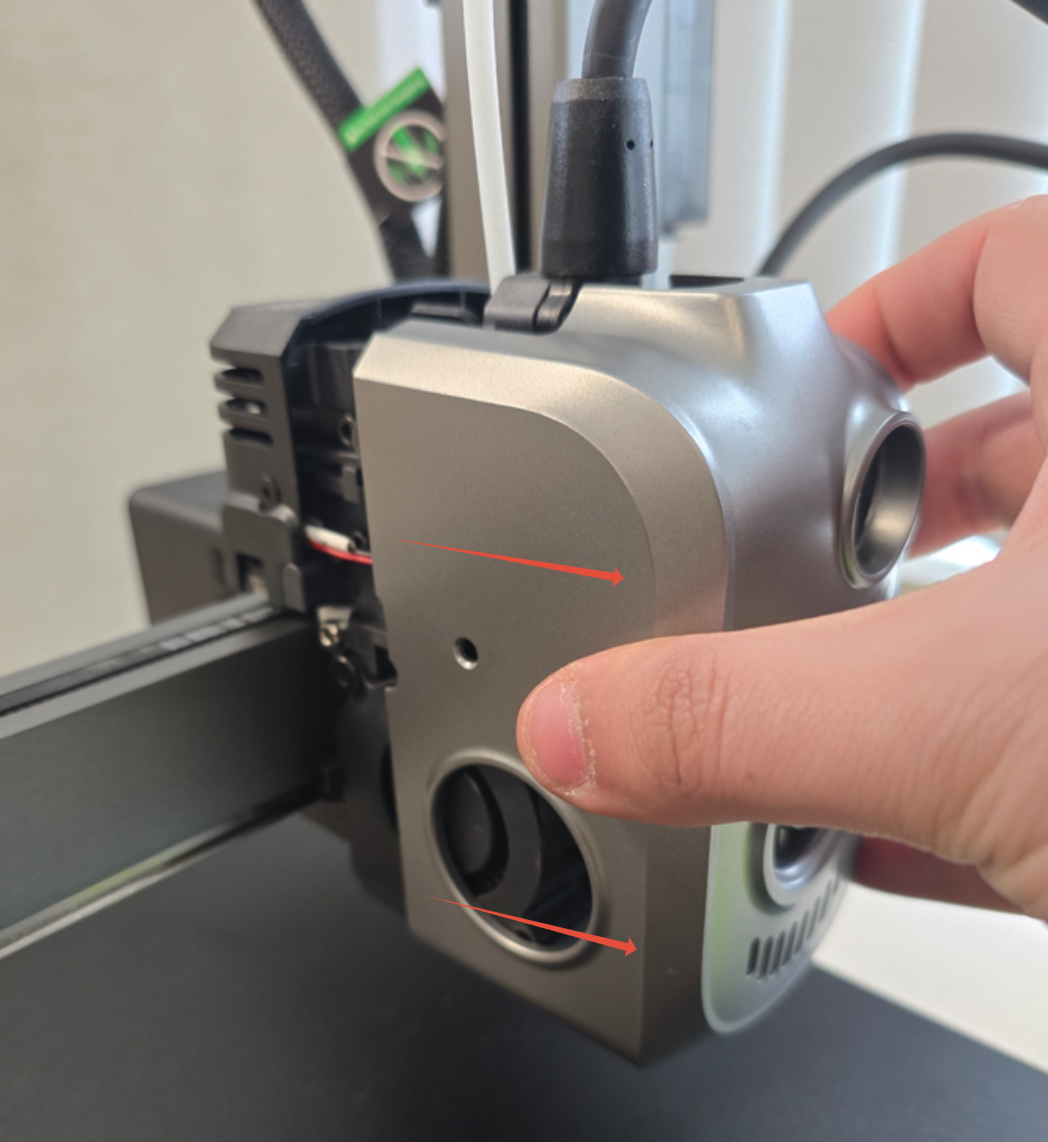

Step 2. Remove the Front Tool Head Cover


Pull the tool head cover towards you to slide it off easily.


Reference Photo:



____________________________________________________________________________________

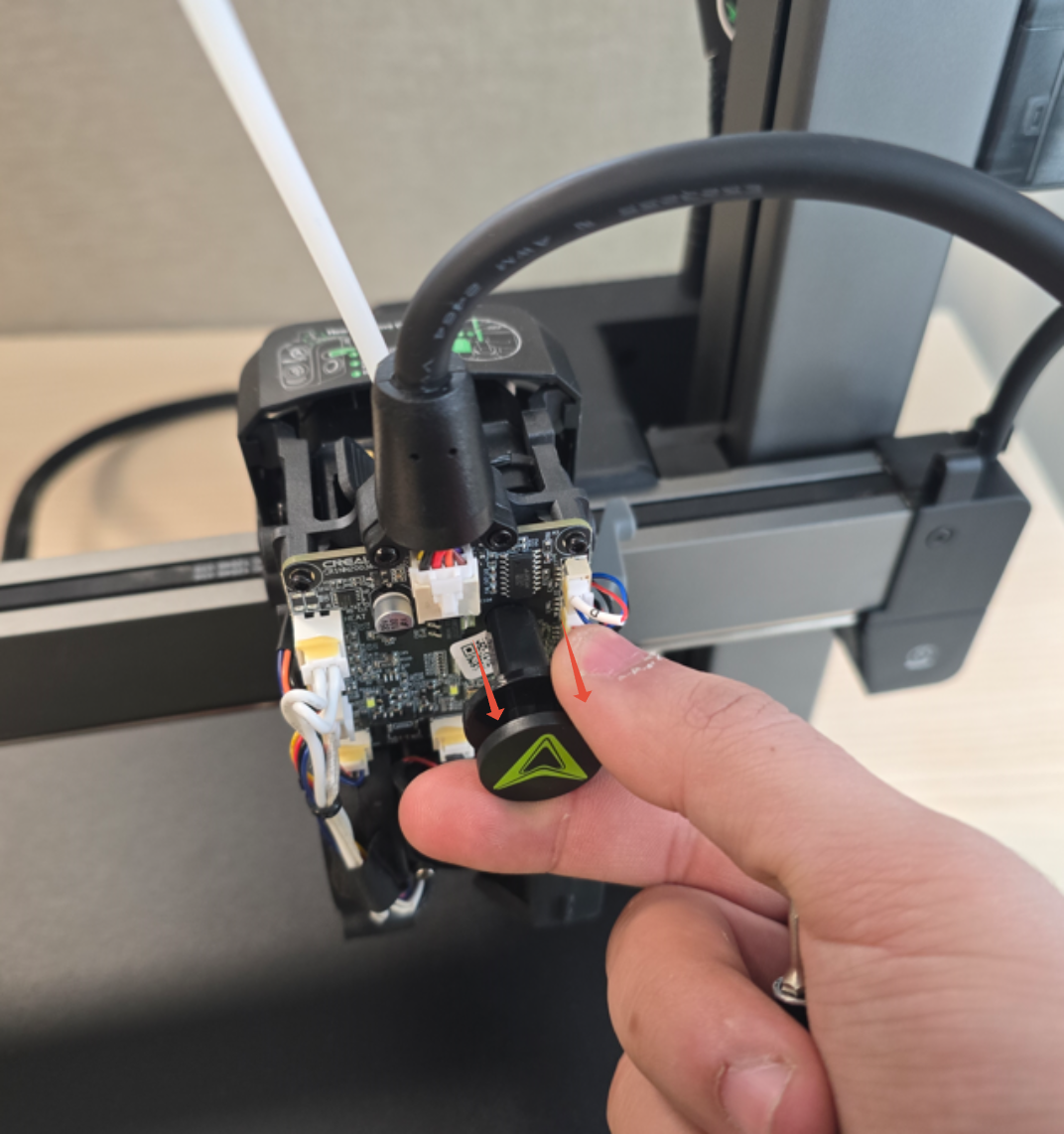

Step 3. Remove the Extruder Indicator Wheel


Pull the indicator wheel towards you to remove it.



____________________________________________________________________________________

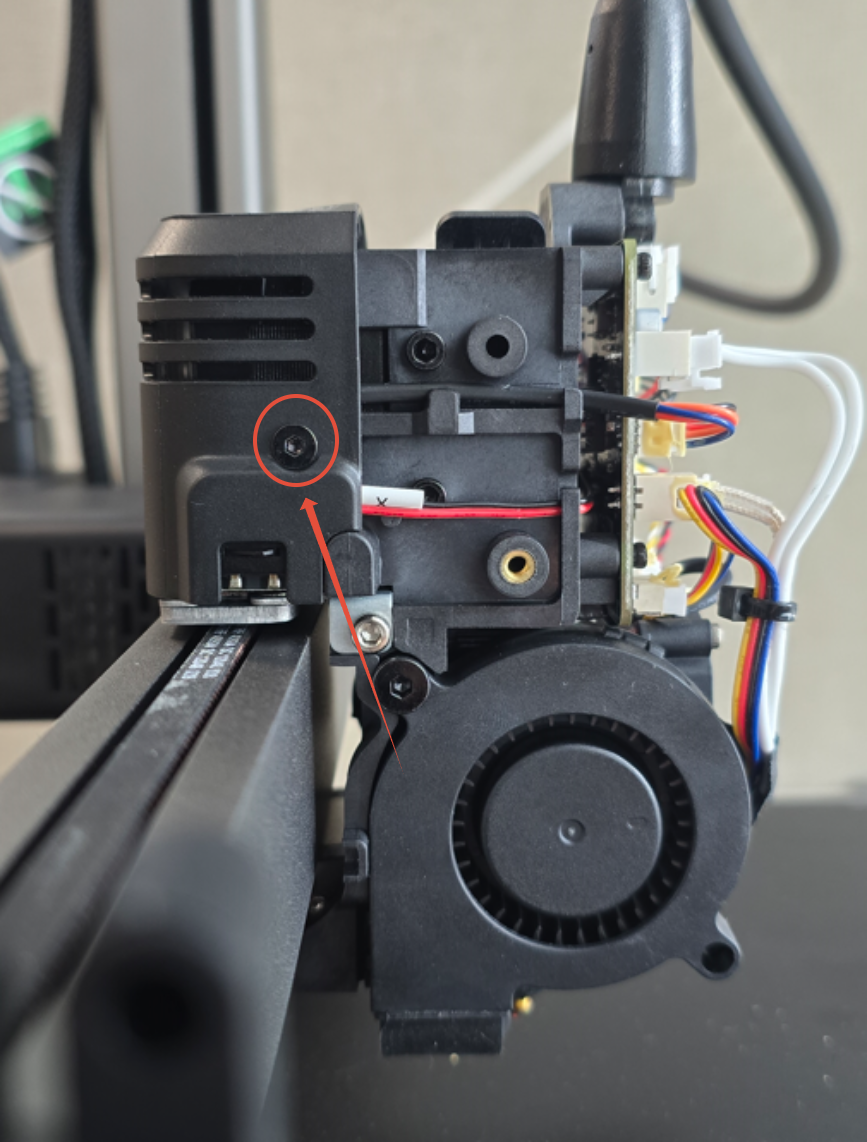

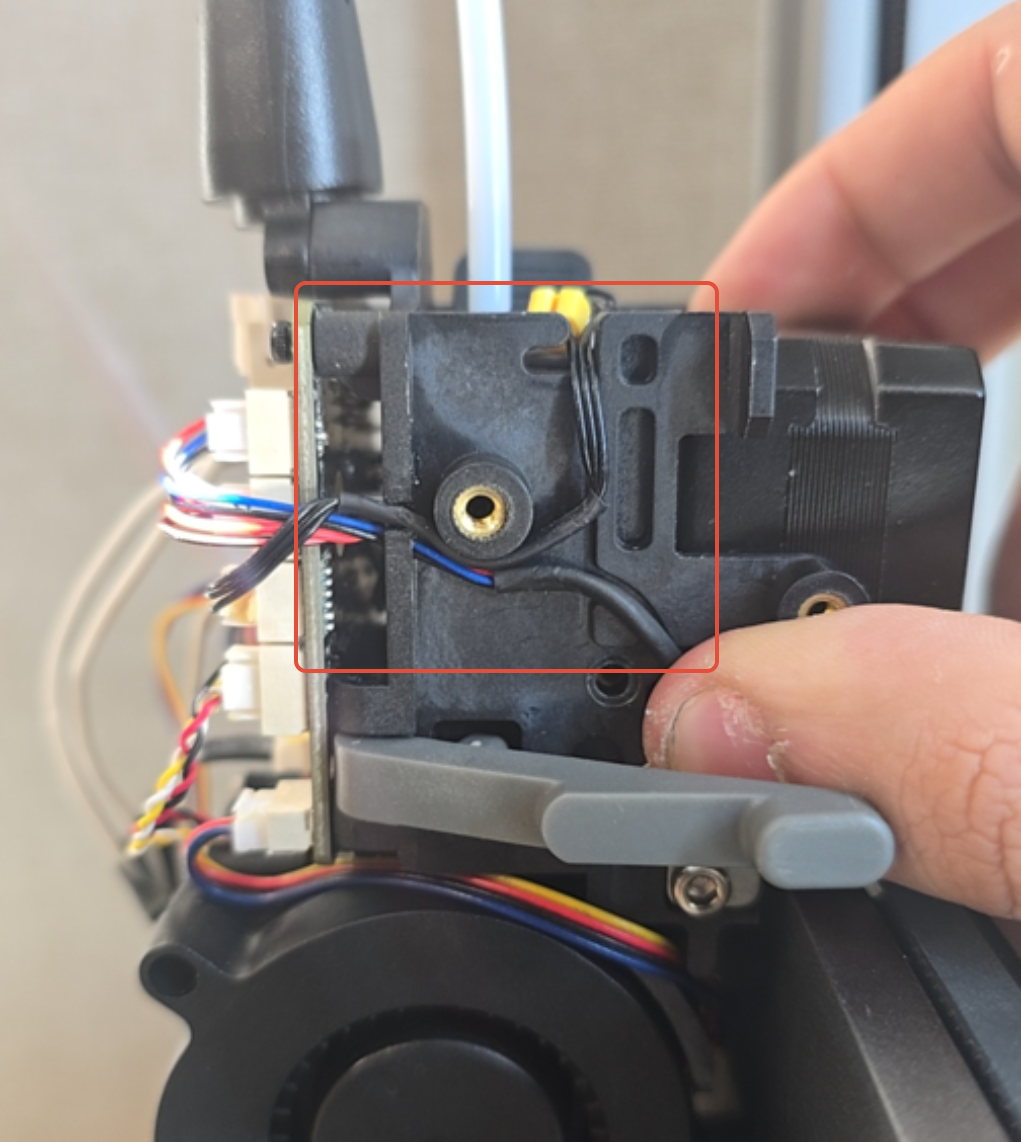

Step 4. Unscrew the 2 screws holding the Extruder Motor Cover and remove the extruder motor cover

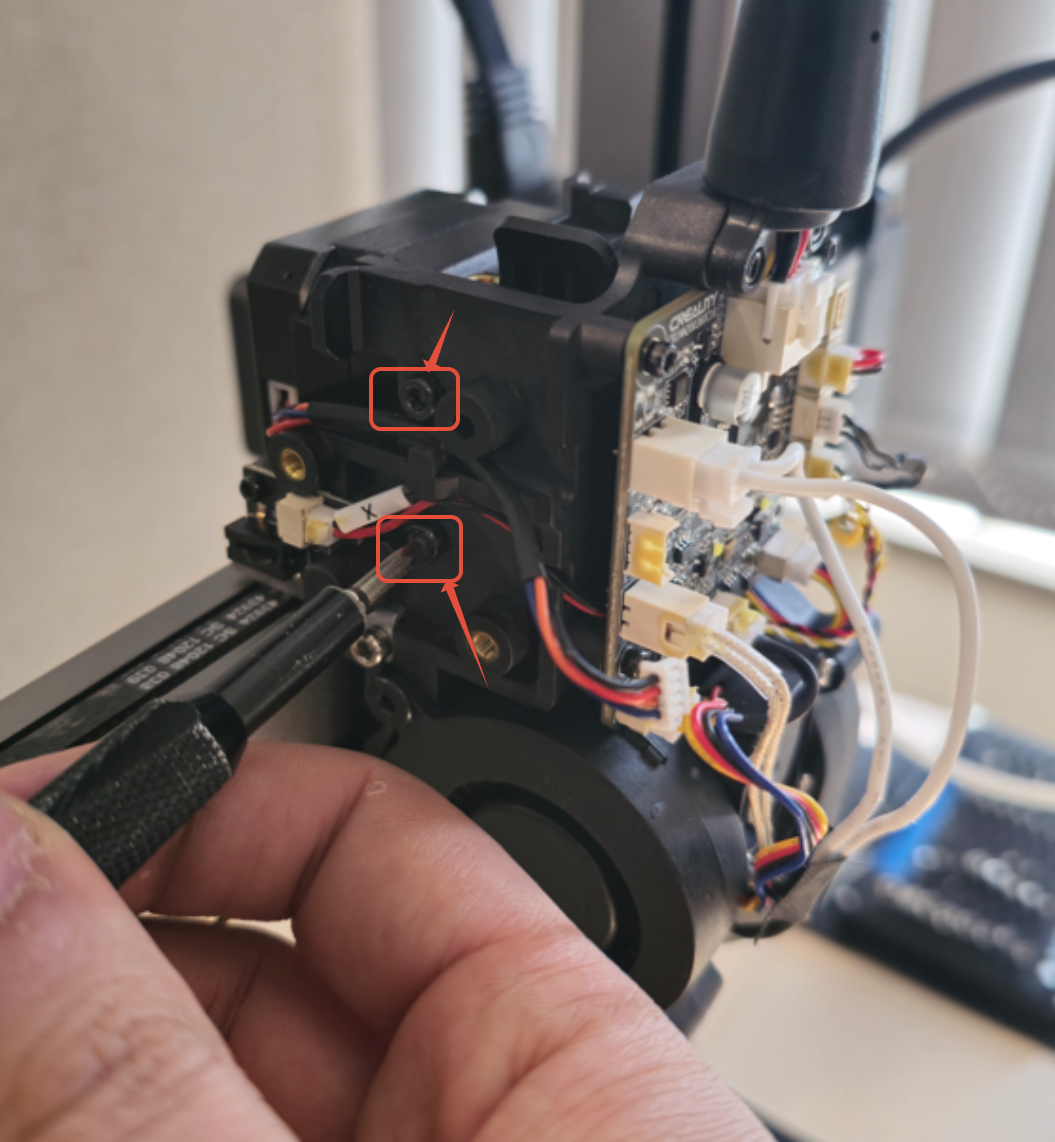

Use your 2mm Hex driver to remove the screws securing the extruder motor cover.



____________________________________________________________________________________

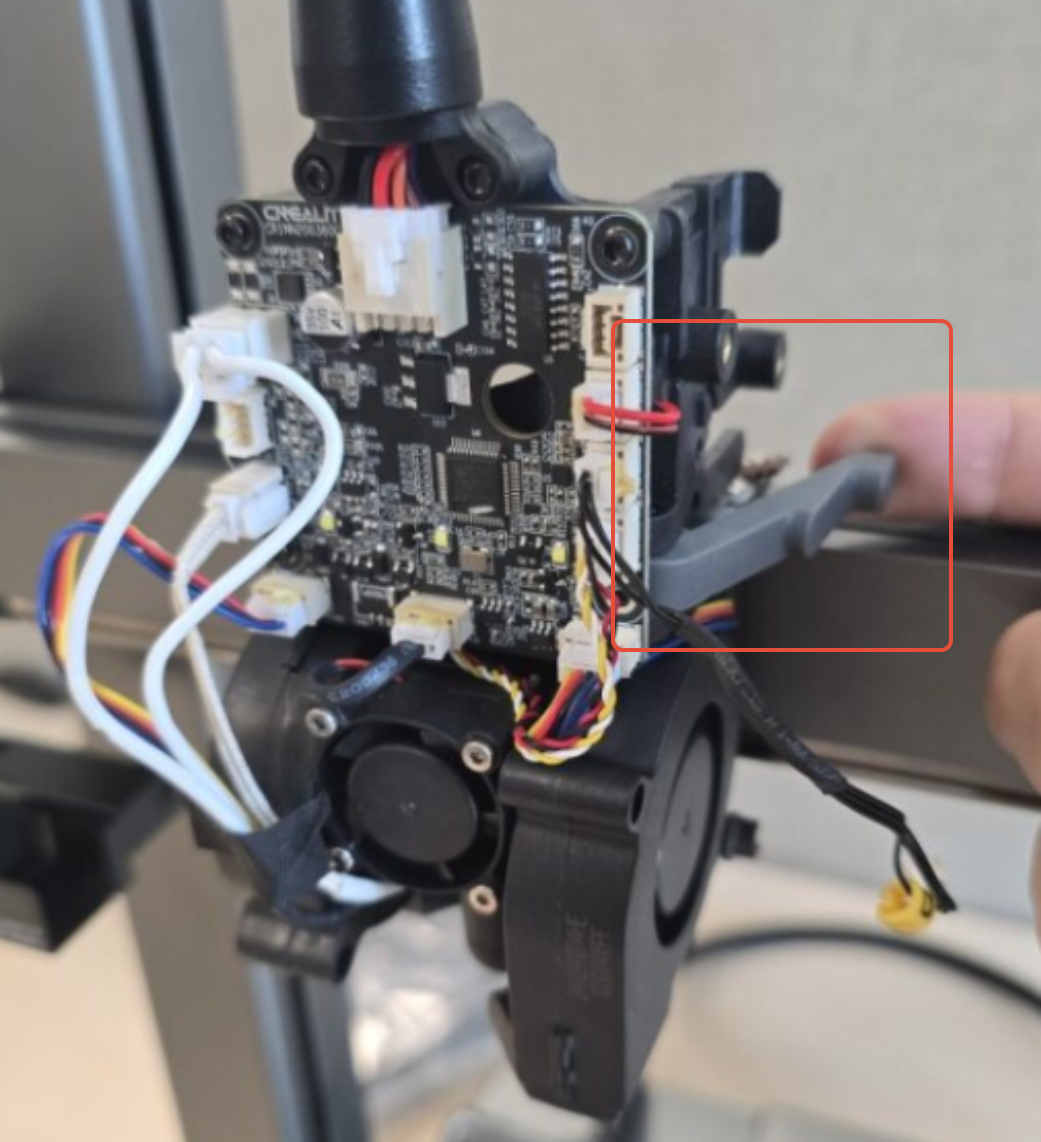

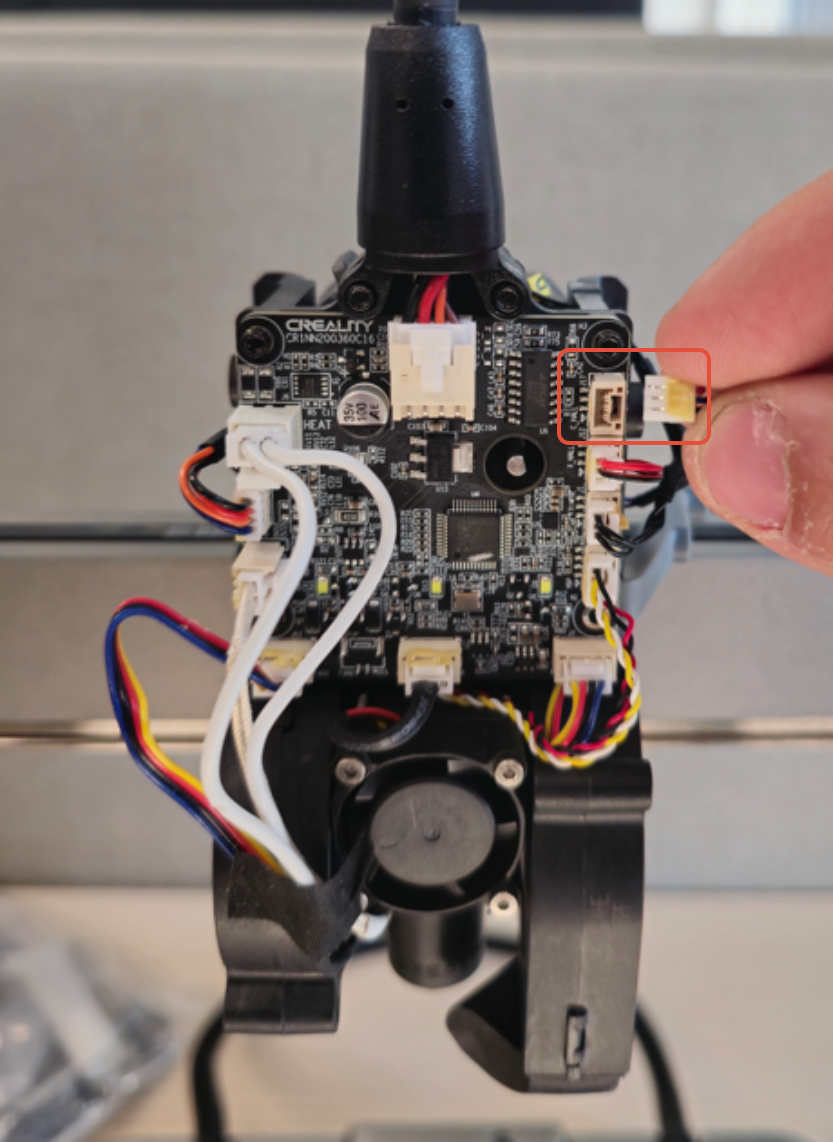

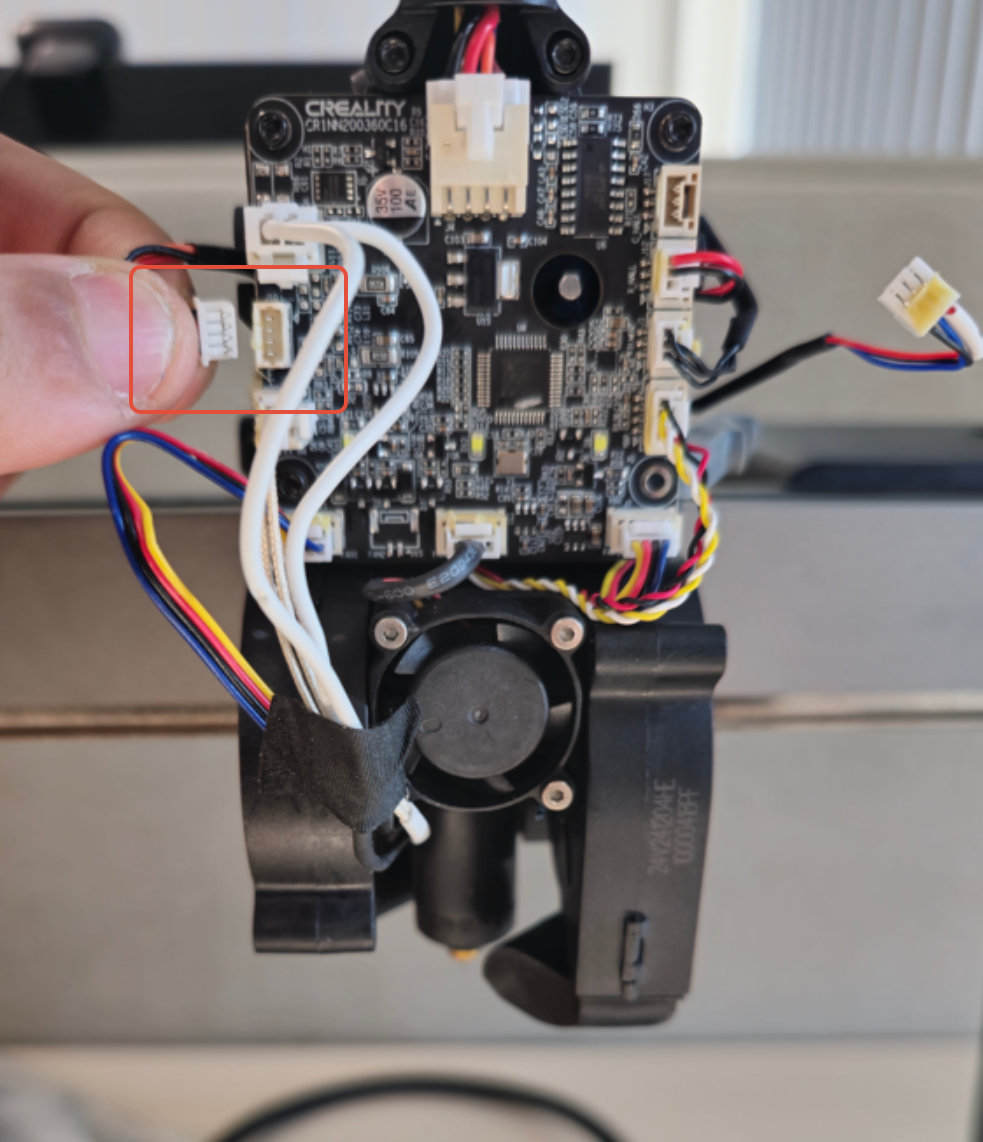

Step 5. Disconnect the Filament Cutter Cable and Extruder Motor Cable from the Extruder Board


Carefully disconnect both the filament cutter cable and the extruder motor cable from the extruder board.



____________________________________________________________________________________

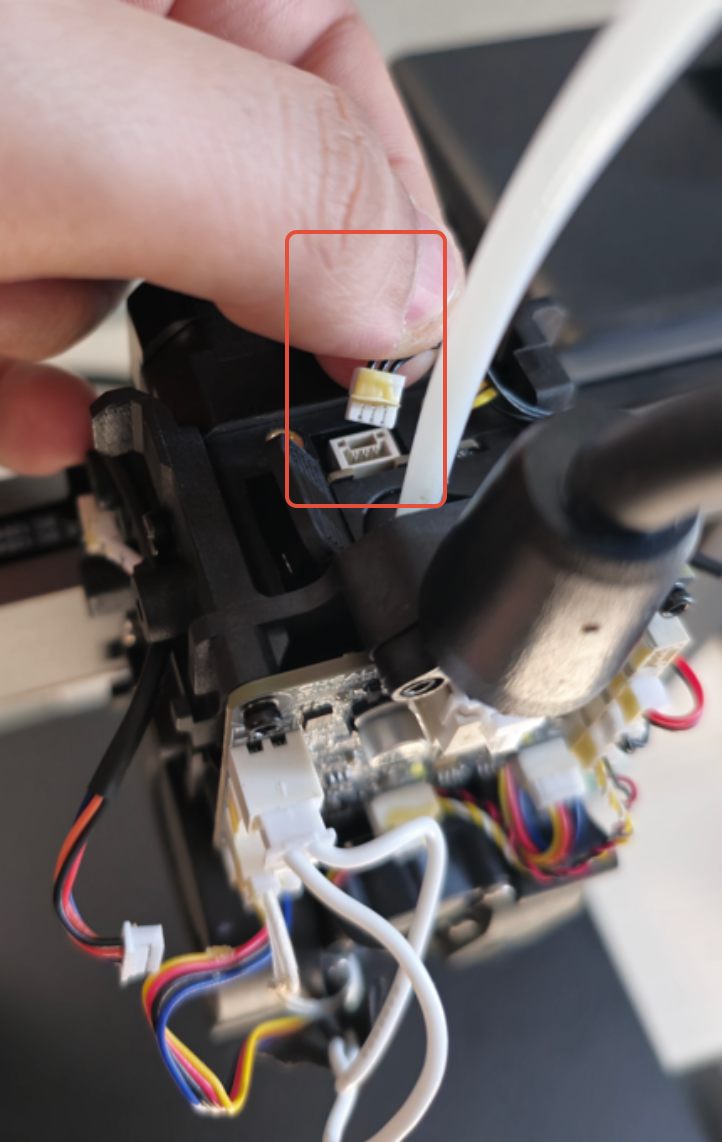

Step 6. Unplug the Filament Sensor Cable from the Filament Sensor


Disconnect the filament sensor cable from the sensor.



____________________________________________________________________________________


Step 7. Unscrew the mounting screws for the Extruder

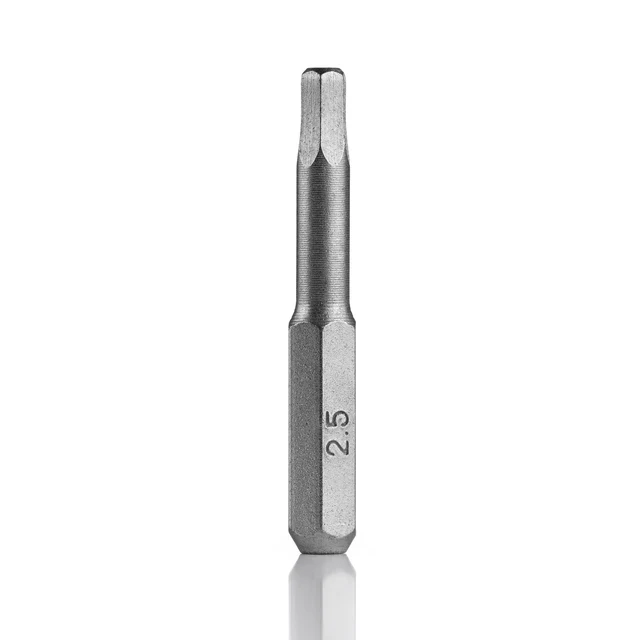

Use the 2.5mm Hex driver to remove the screws securing the extruder to its mount.



____________________________________________________________________________________


Step 8.  Slide the Extruder out

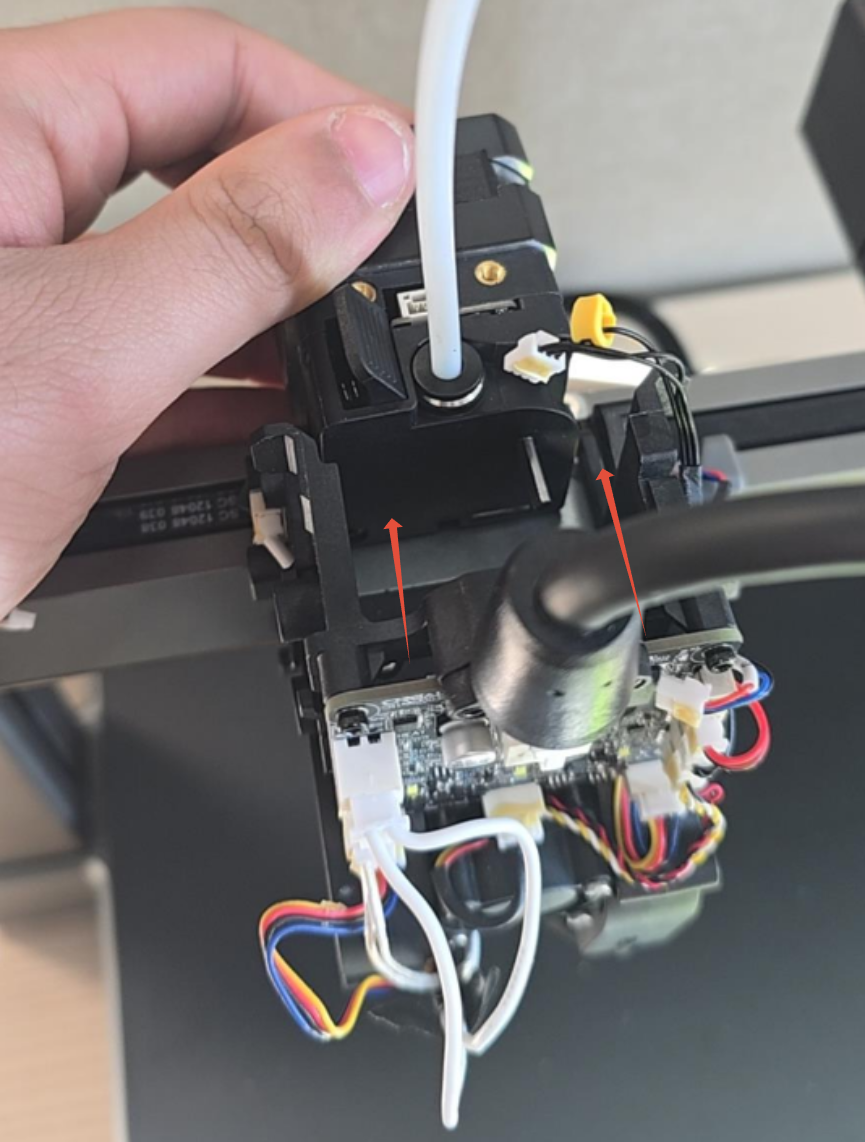

Carefully slide the extruder out from its mount.



____________________________________________________________________________________

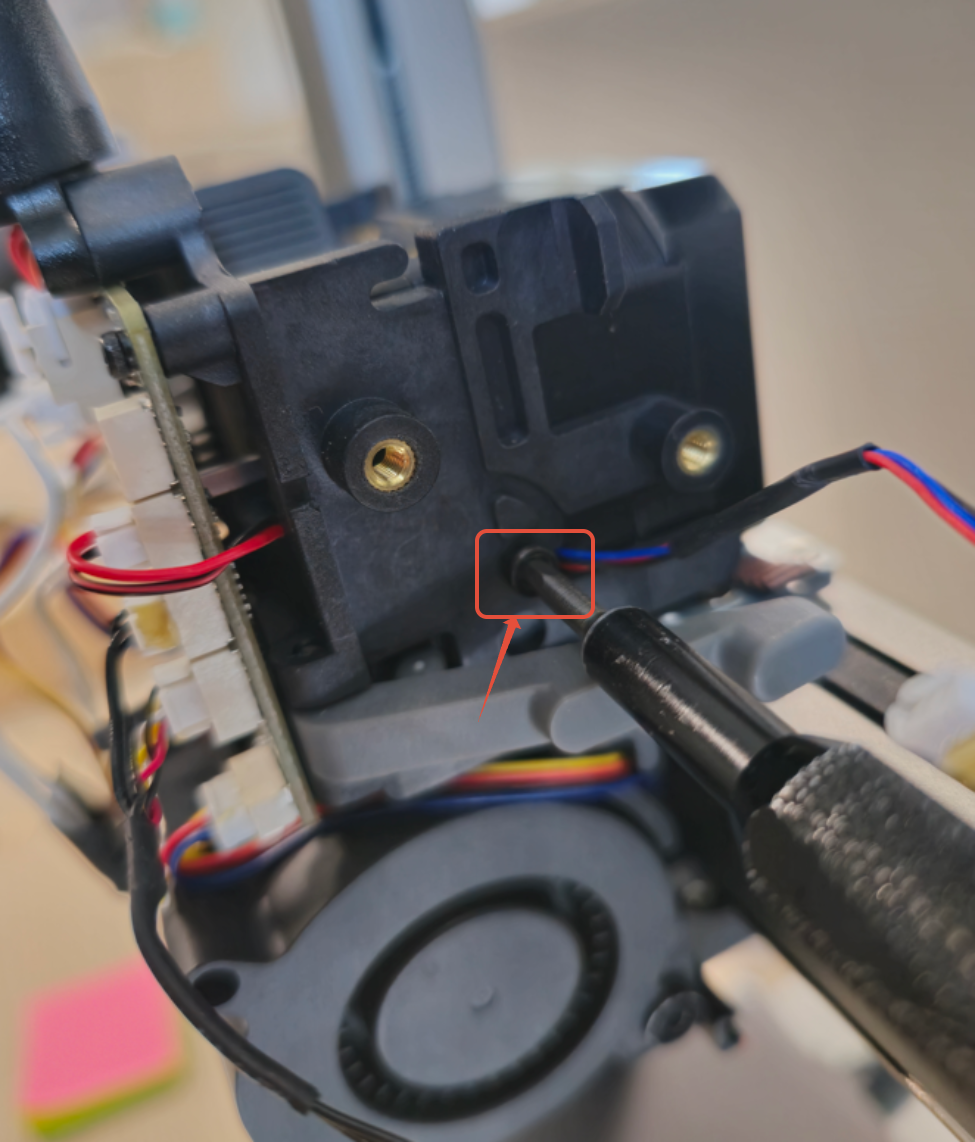

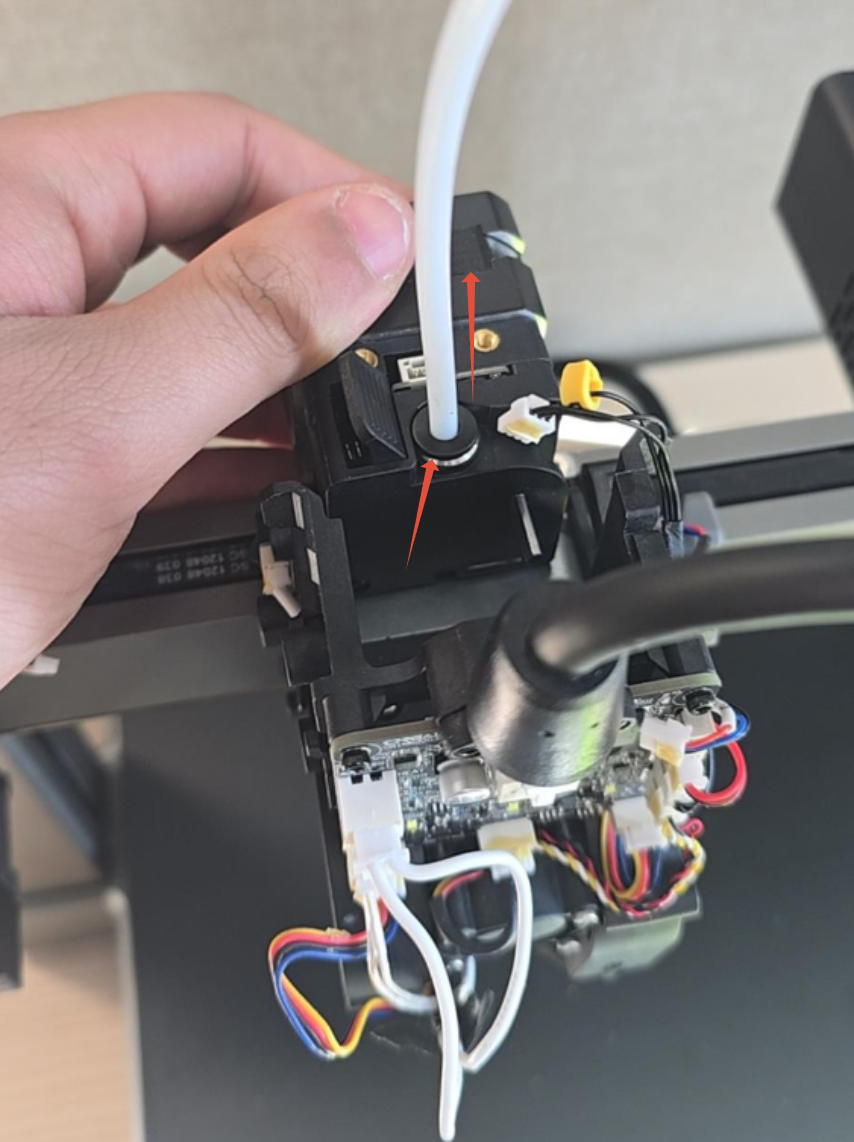

Step 9. Remove the PTFE tube from the Extruder

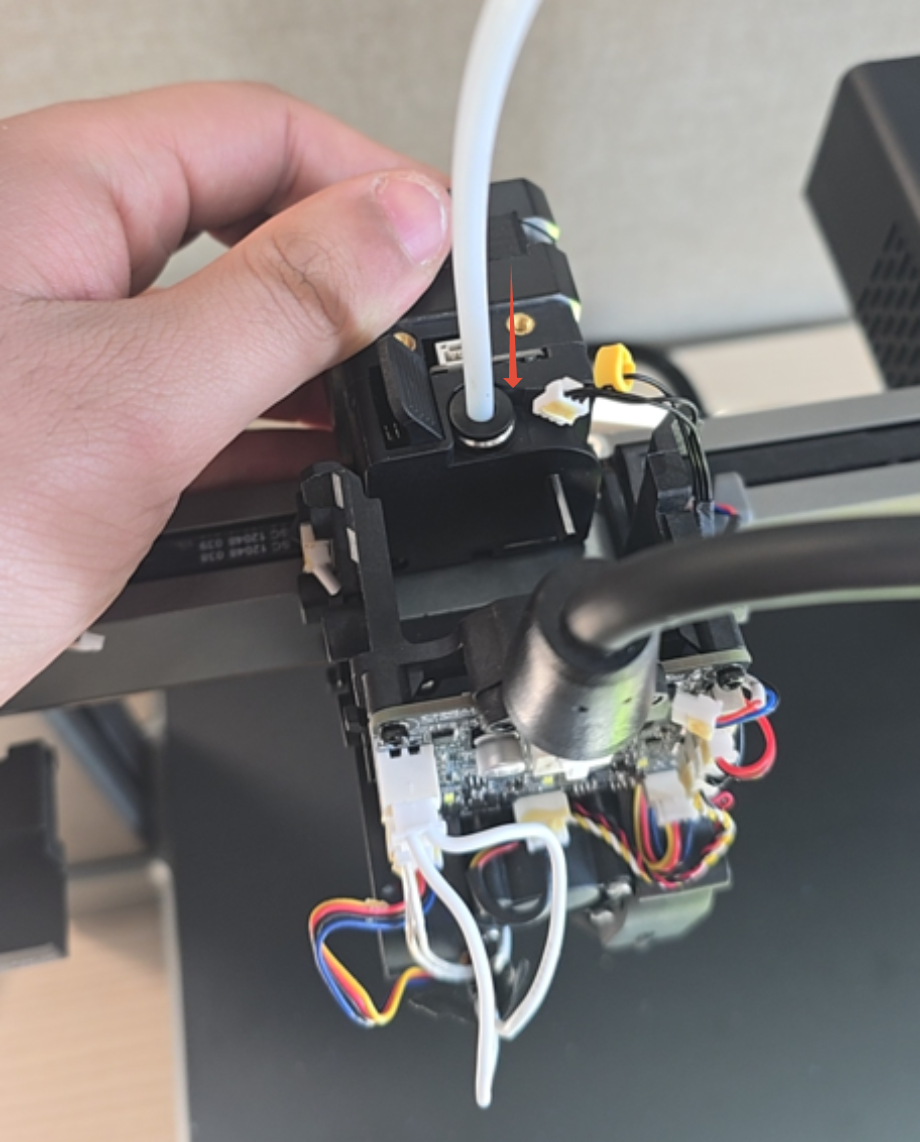

To remove the PTFE tube, first push the coupler down (marked with an arrow in the photo). Once released, pull the PTFE tube upwards to disconnect it.



____________________________________________________________________________________

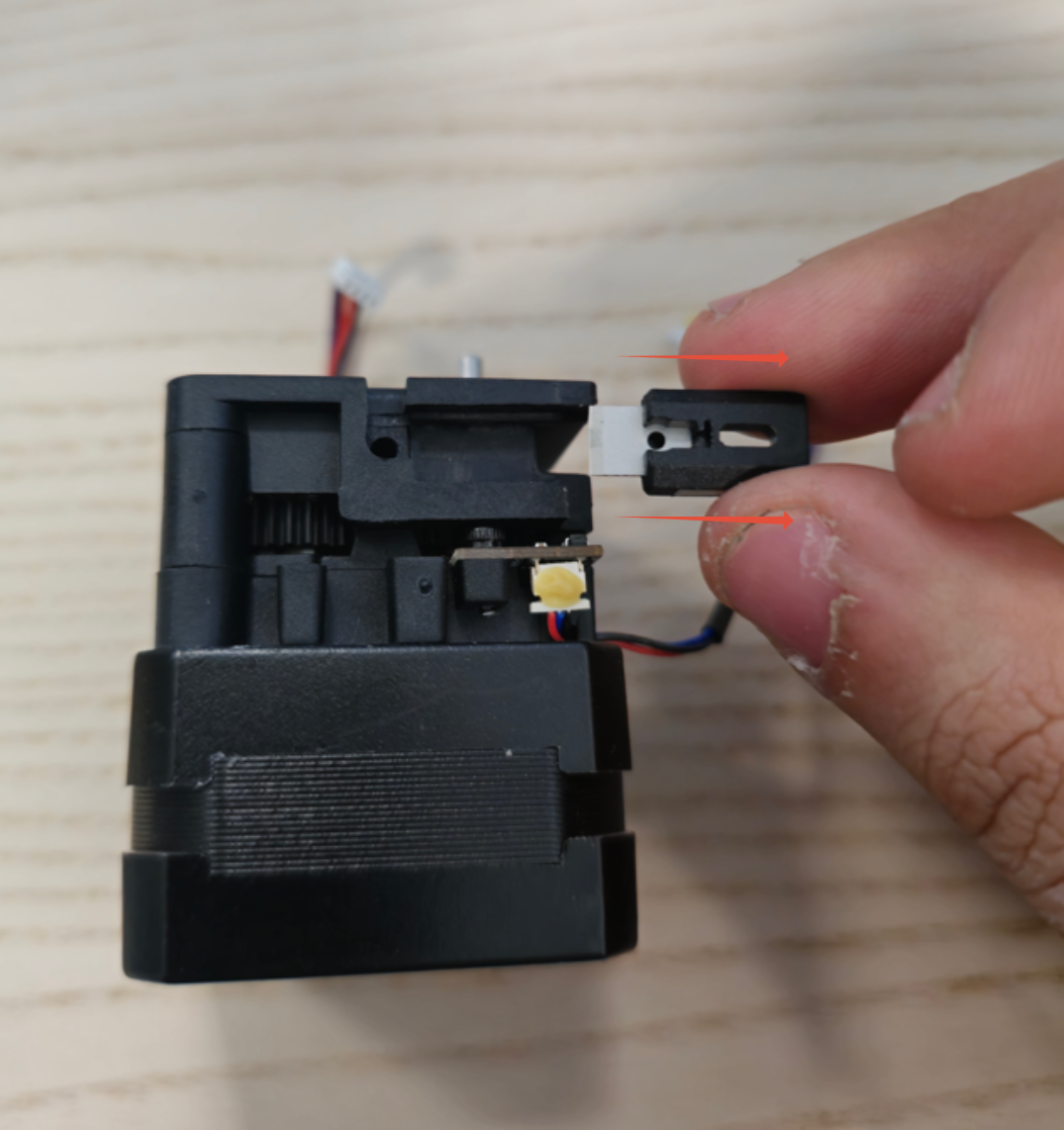

Step 10. Remove and Replace the Cutter Blade

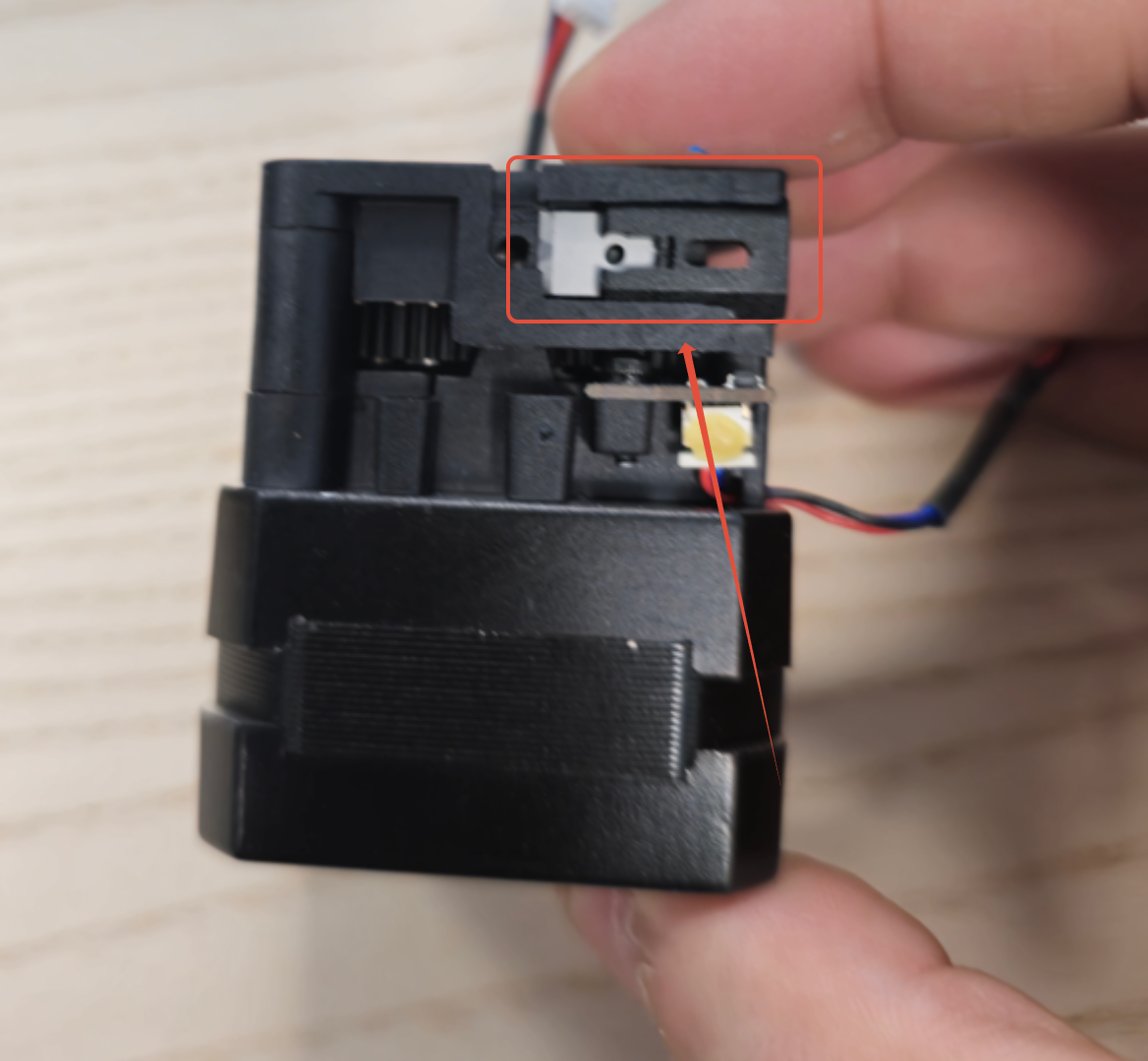

Once the extruder is removed, locate the cutter (on the underside of the extruder). The cutter is magnetically attached—simply remove it and replace it with a new one. Be sure the side with the hole faces upward during installation.



____________________________________________________________________________________


Step 11. Insert the PTFE Tube and fasten the Extruder


Push the PTFE tube down into the coupler.

Slide the extruder back into place and secure it with the screws using the 2.5mm Hex driver. Ensure the filament cutter arm is in its open state.



____________________________________________________________________________________


Step 12. Plug in the the Filament Sensor Cable, Extruder Motor Cable and Filament Cutter Cable


Plug the filament sensor cable, extruder motor cable, and filament cutter cable back into their respective connectors.



____________________________________________________________________________________

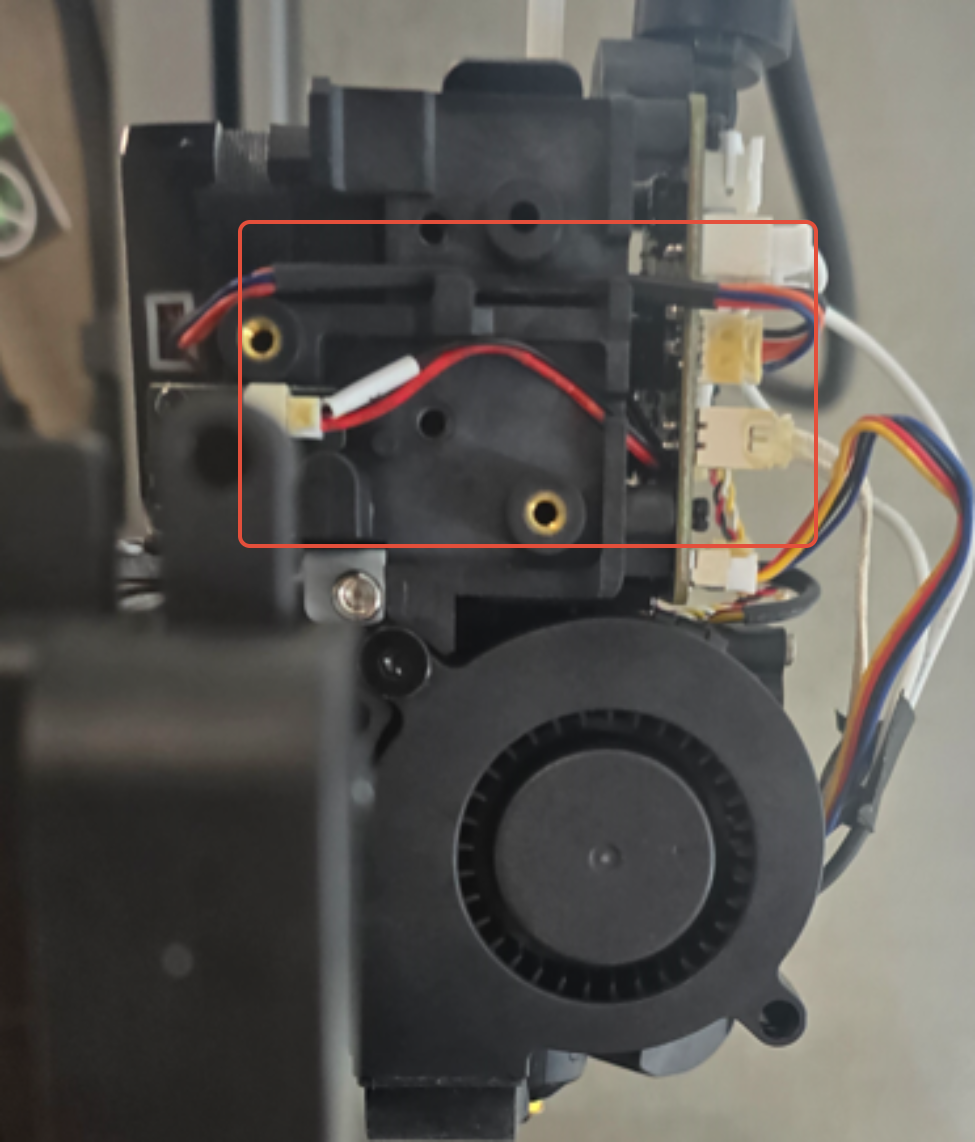

Step 13. Ensure that the cables are organized into their grooves


Ensure that the cables are properly routed into their grooves to avoid interference with other components.



____________________________________________________________________________________


Step 14. Install the Extruder Motor Cover


Use your 2mm Hex driver to secure the screws holding the extruder motor cover.



____________________________________________________________________________________

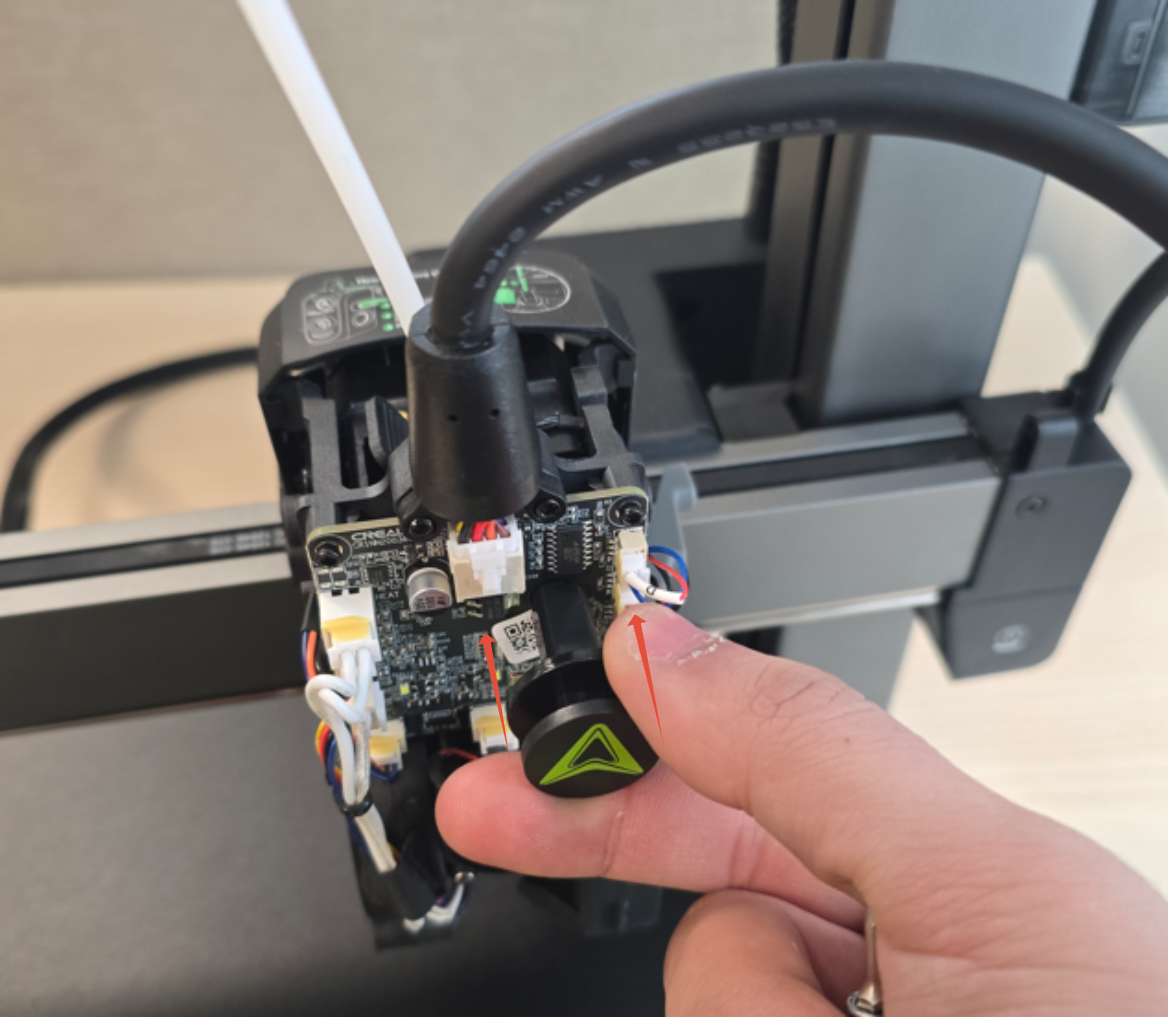

Step 15. Install the Extruder Indicator Wheel


Ensure the extruder indicator wheel is fully seated. If it's not properly aligned, the front tool head cover may not fit correctly.



____________________________________________________________________________________



Step 16. Install the Front Tool Head Cover and screw it in place


Position the front tool head cover back into place and secure it with the screws.



____________________________________________________________________________________


Step 17. Turn on the machine and run Self Test / Calibration.


Power on the machine and run the self-test / calibration procedure. If no errors appear, the replacement was successful!



Your Filament Cutter replacement is complete!
