Creality Hi Hotend Replacement

____________________________________________________________________________________


Introduction


This guide will walk you through the process of disassembling the print head and replacing the Hotend


Important Notes

  1. Strong Yellow Glue: The connectors on the extruder board are secured with a strong yellow glue. You may need to carefully cut or gently wiggle the connectors to release them. Forcing the connector could damage both the extruder board and the cable.


Tools needed

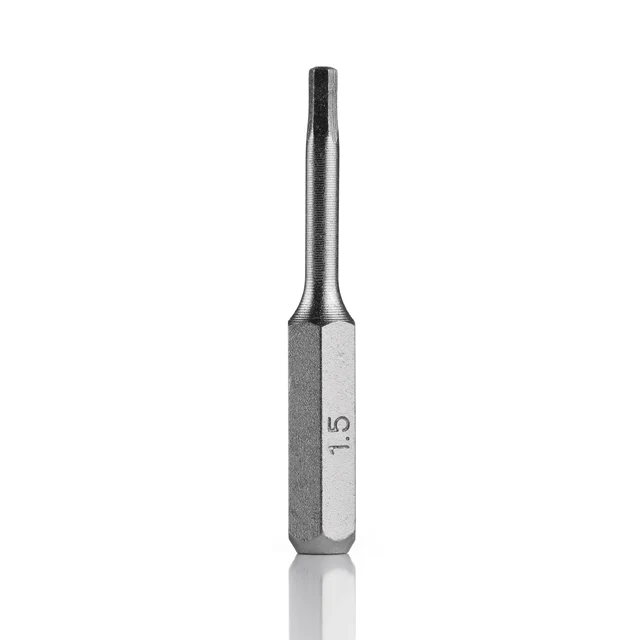

1.5mm Hex Driver or Hex Key

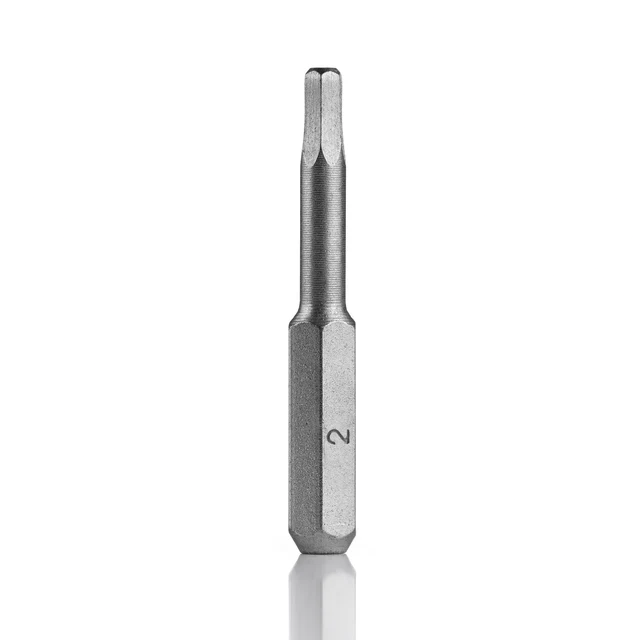

2mm Hex Driver or Hex Key

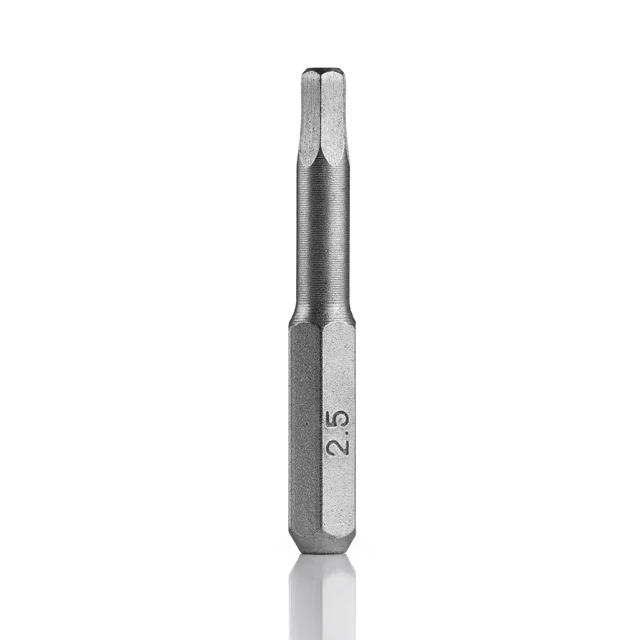

2.5mm Hex Driver or Hex Key

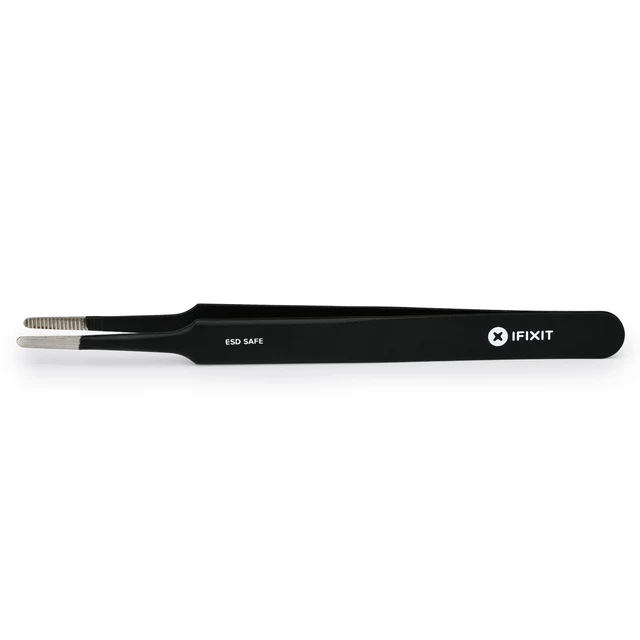

Precision Tweezers (for easier connector removal)

____________________________________________________________________________________

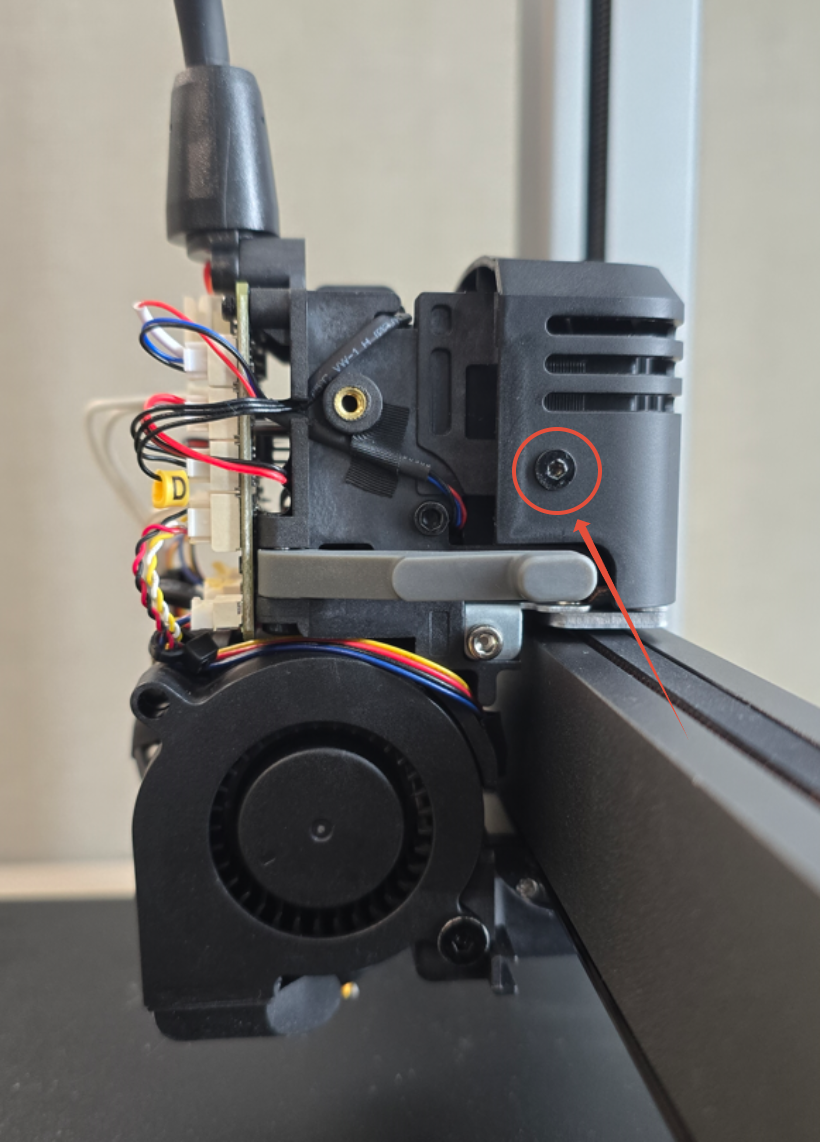

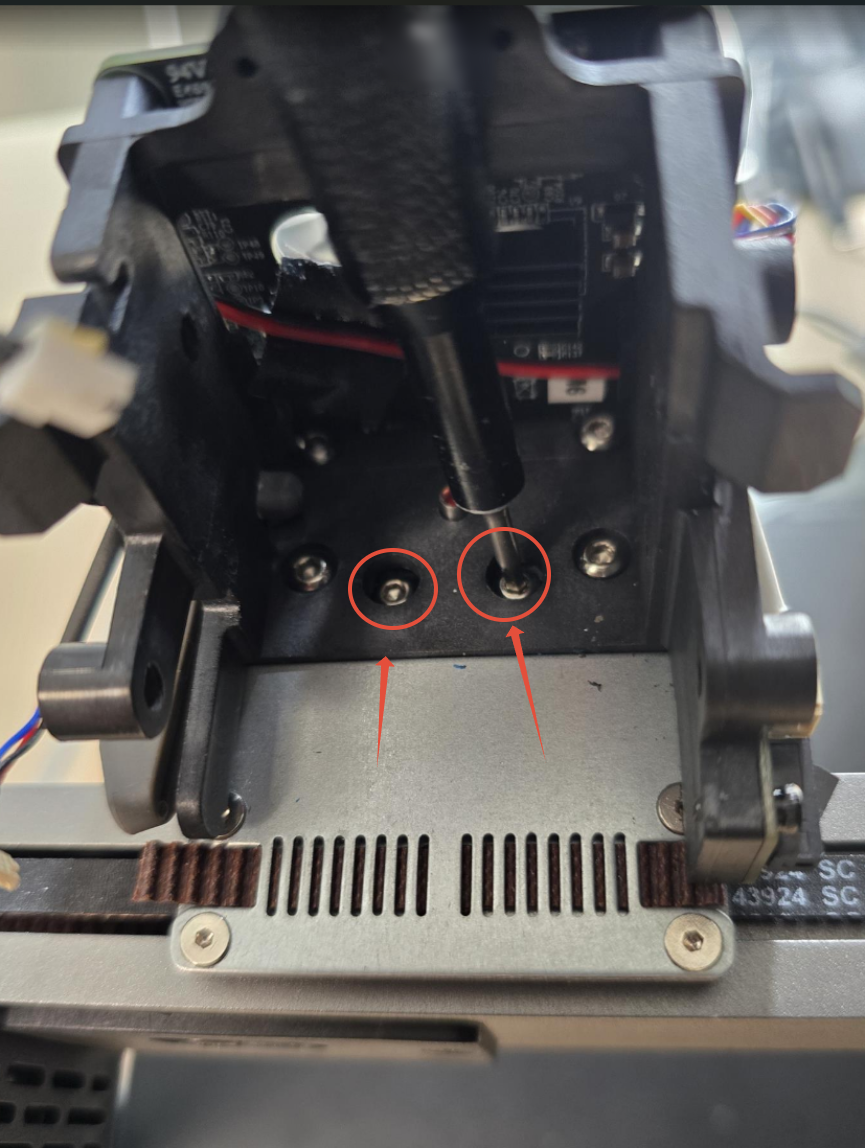

Step 1. Unscrew the 2 Screws holding the Front Tool Head Cover

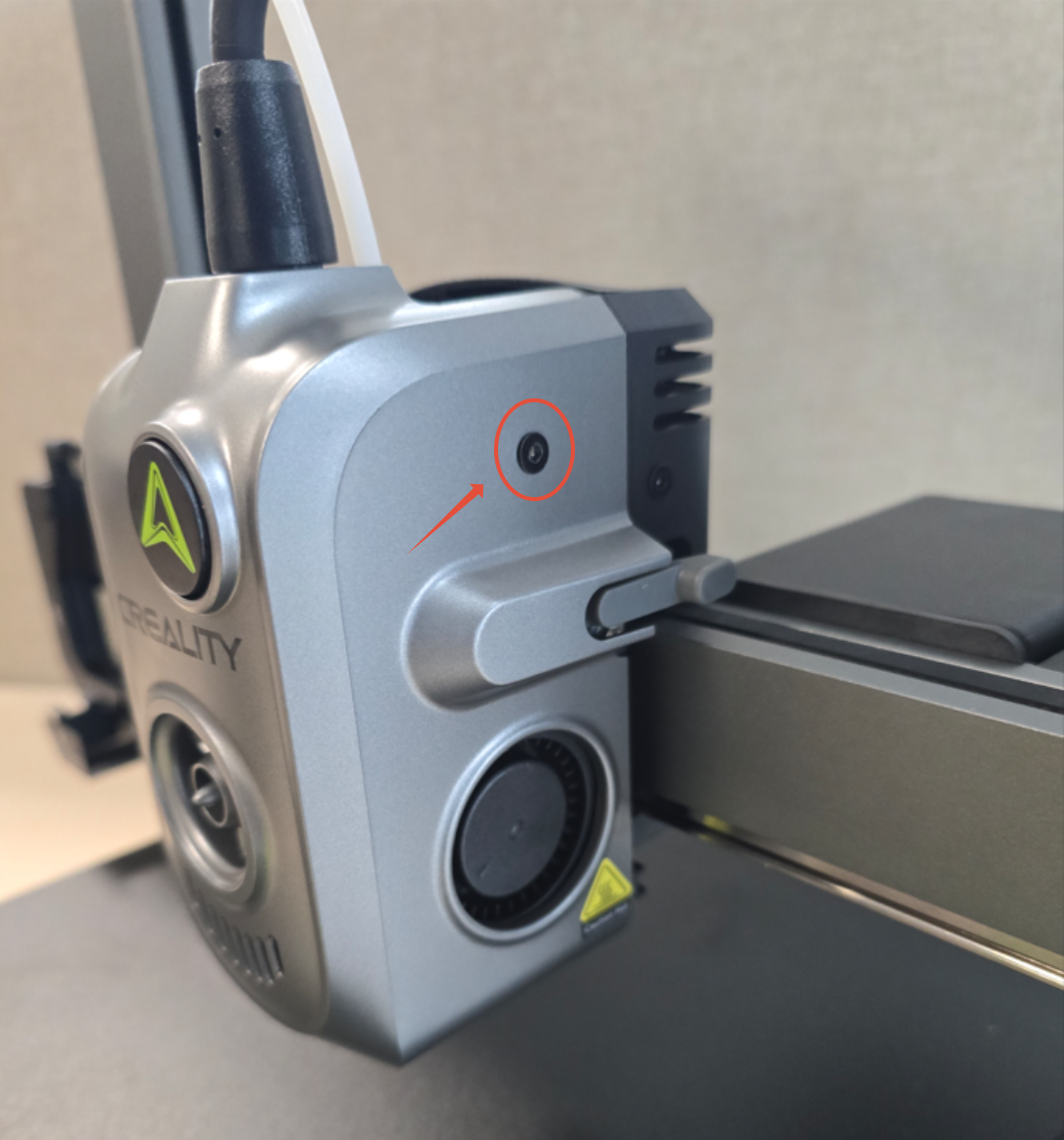

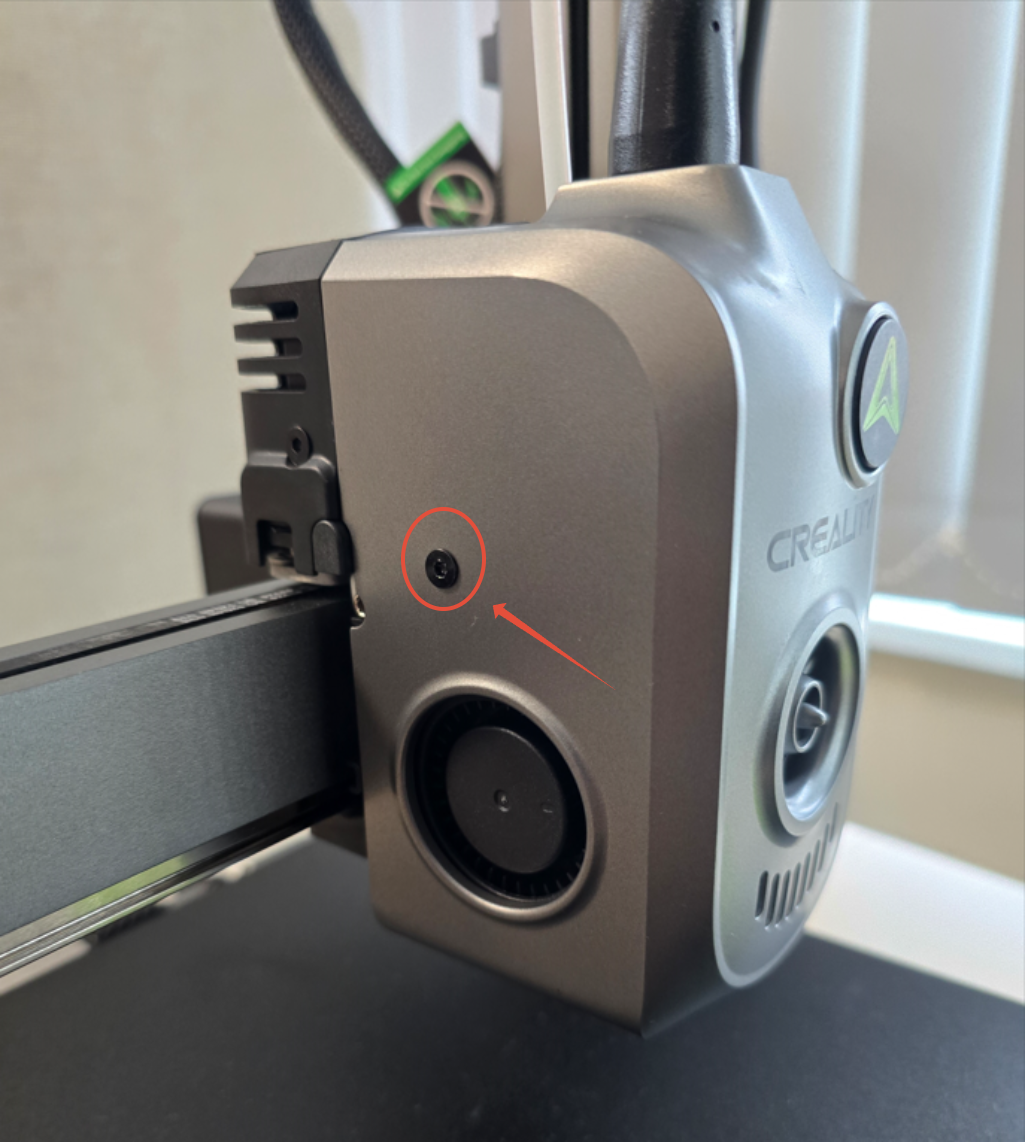

Use your 2mm Hex driver to remove the screws securing the front cover.


____________________________________________________________________________________


Step 2. Remove the Front Tool Head Cover

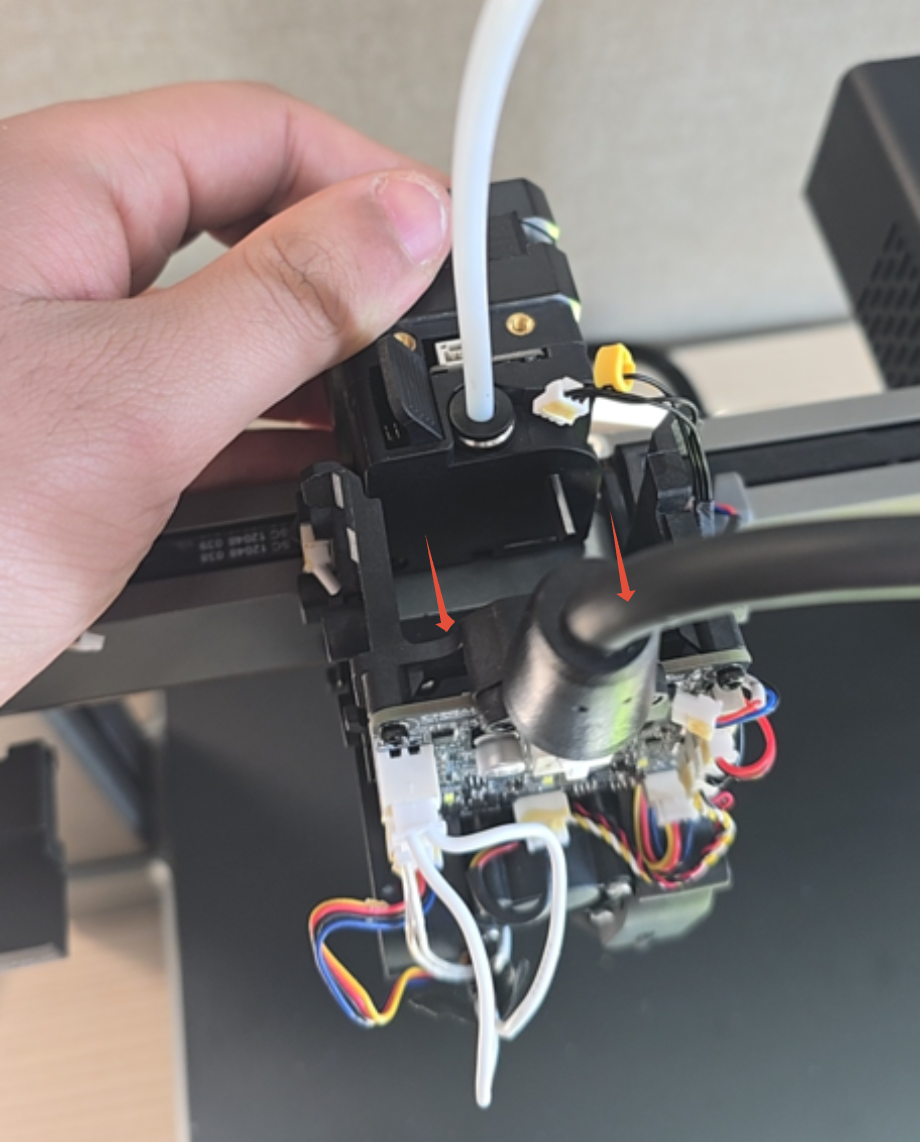

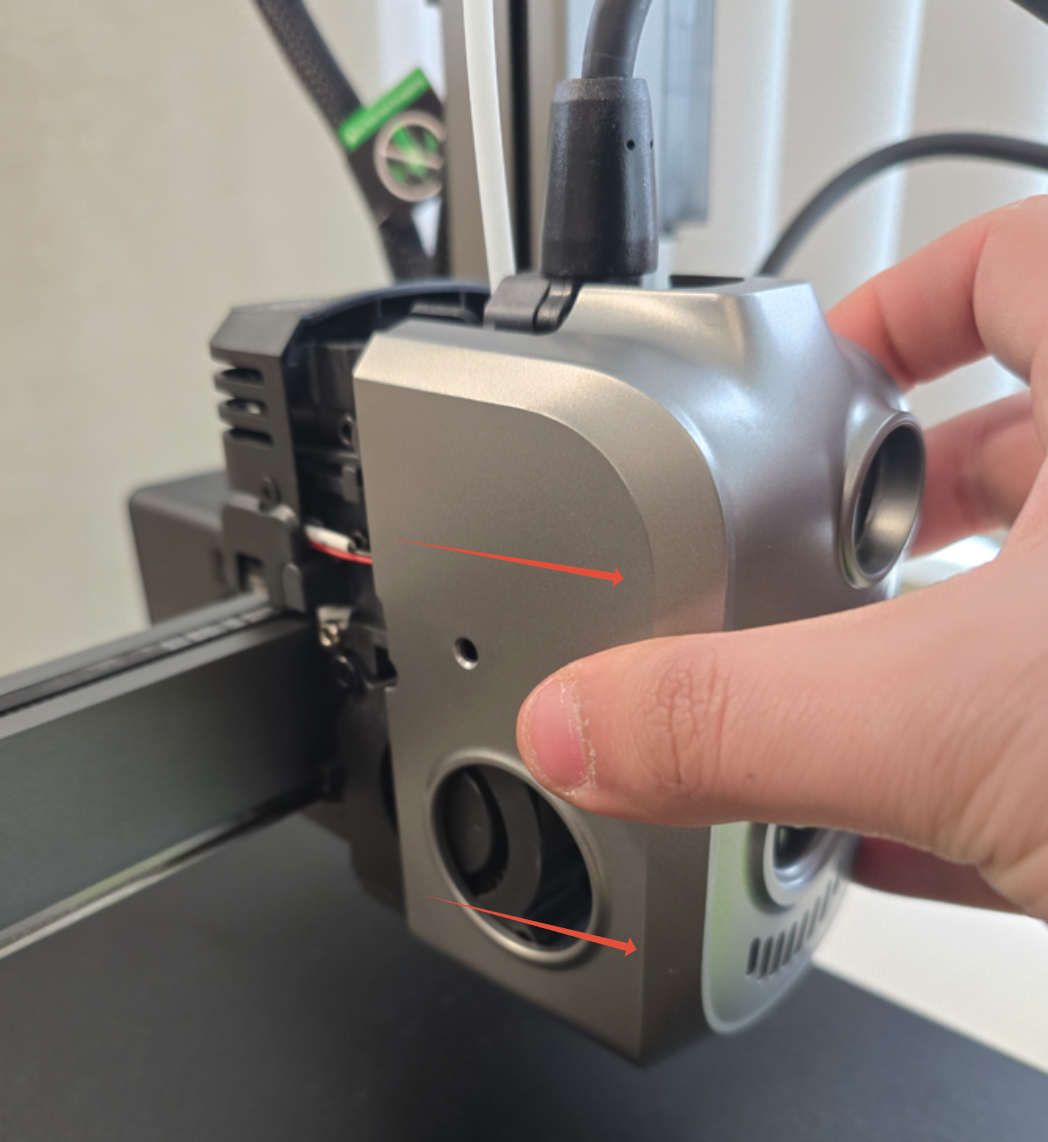

Pull the tool head cover towards you to slide it off easily.


Reference Photo:



____________________________________________________________________________________

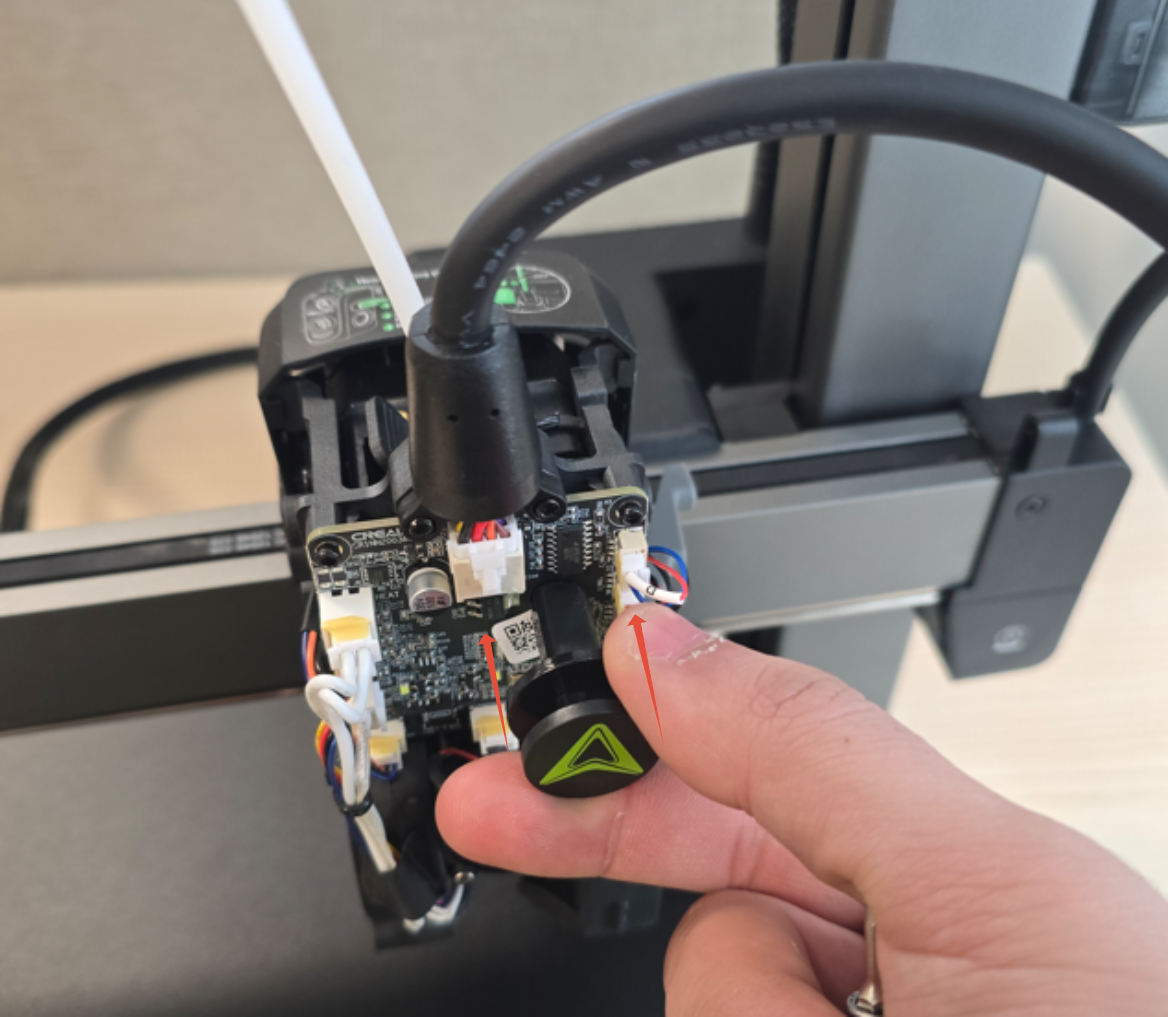

Step 3. Remove the Extruder Indicator Wheel


Pull the indicator wheel towards you to remove it.



____________________________________________________________________________________

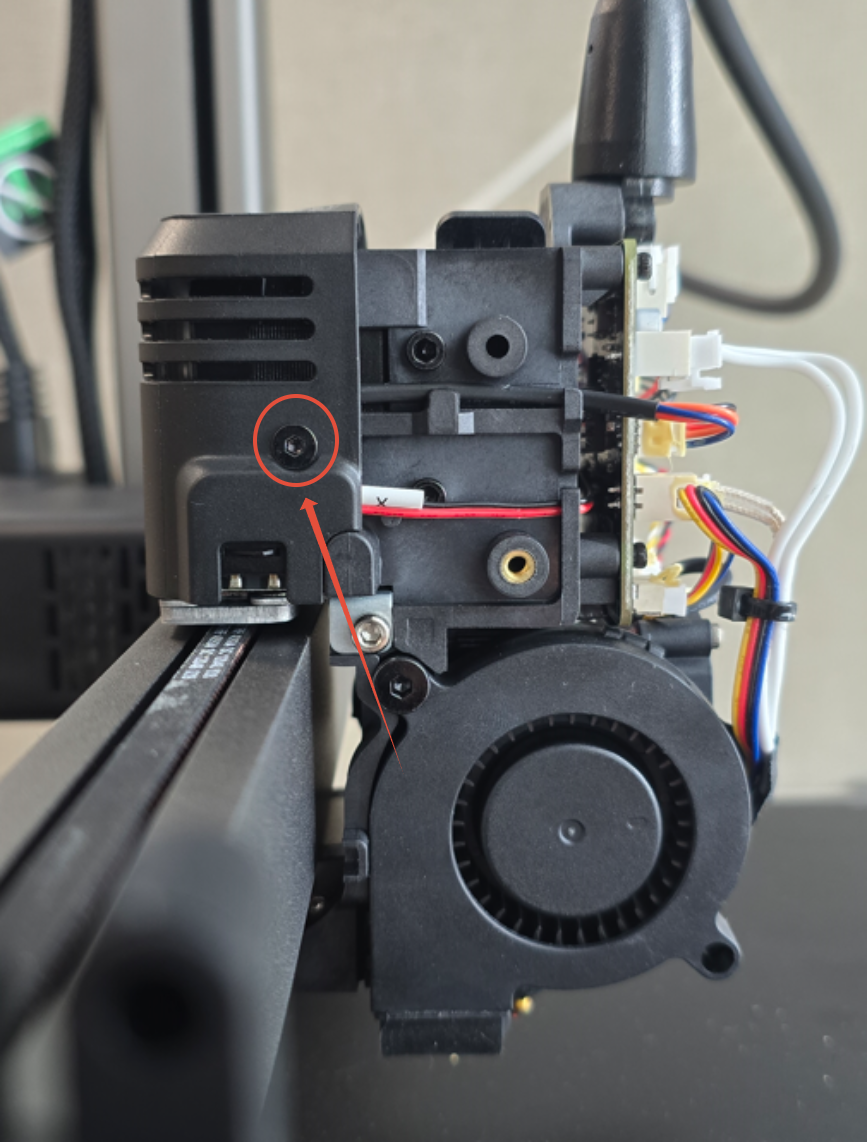

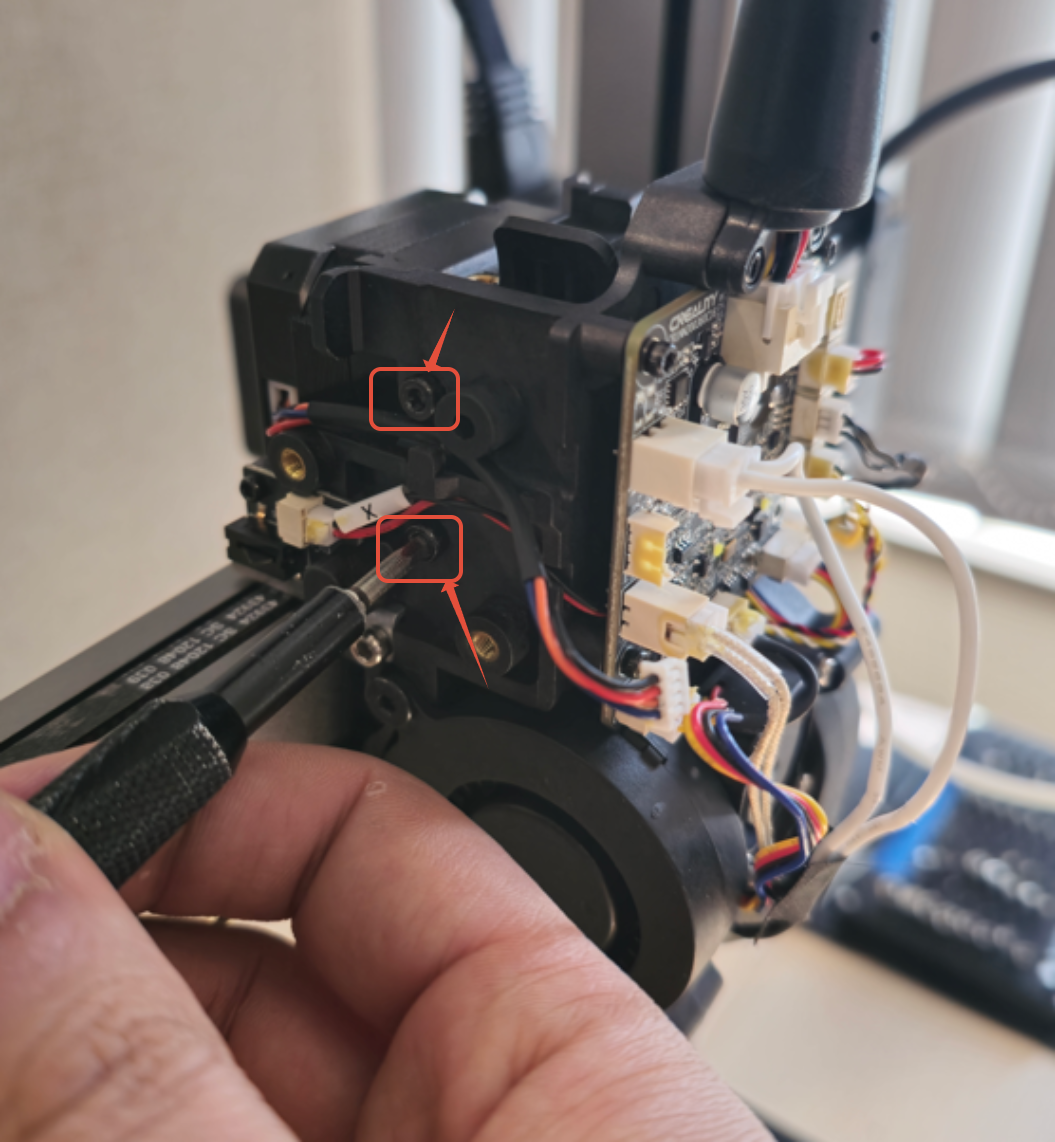

Step 4. Unscrew the 2 screws holding the Extruder Motor Cover and remove the extruder motor cover


Use your 2mm Hex driver to remove the screws securing the extruder motor cover.



____________________________________________________________________________________

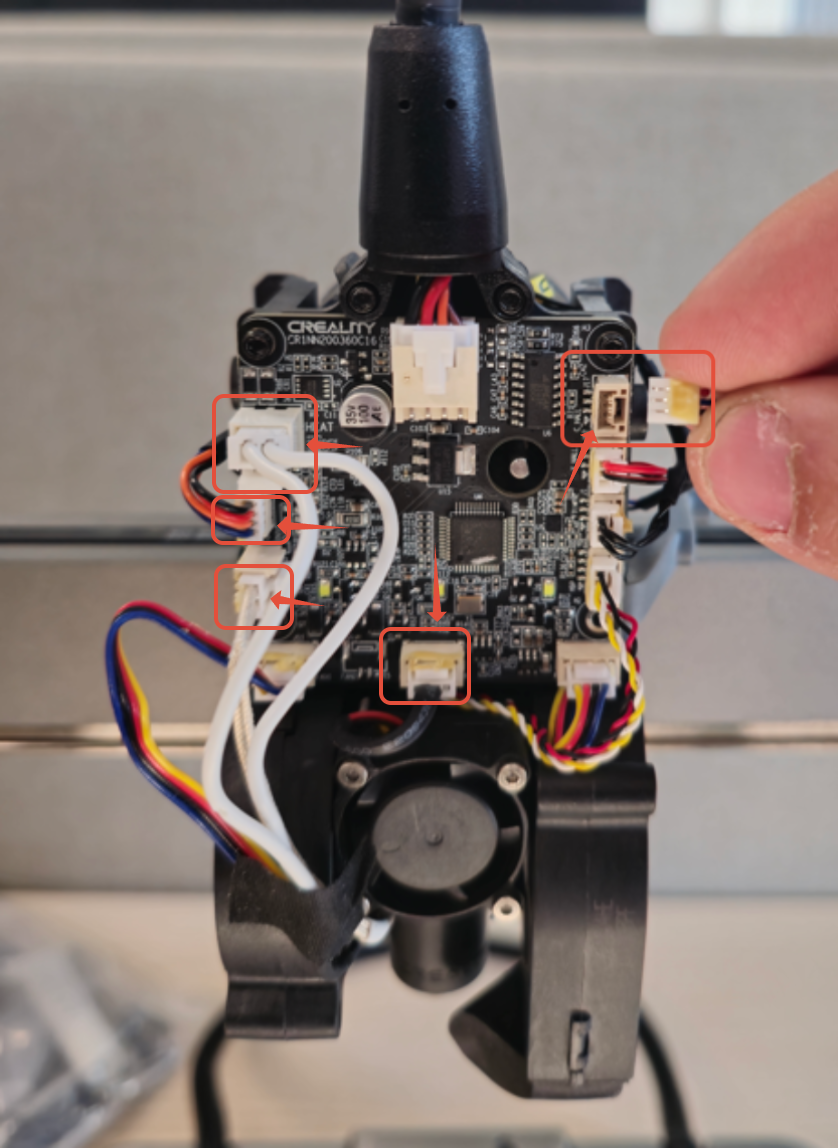

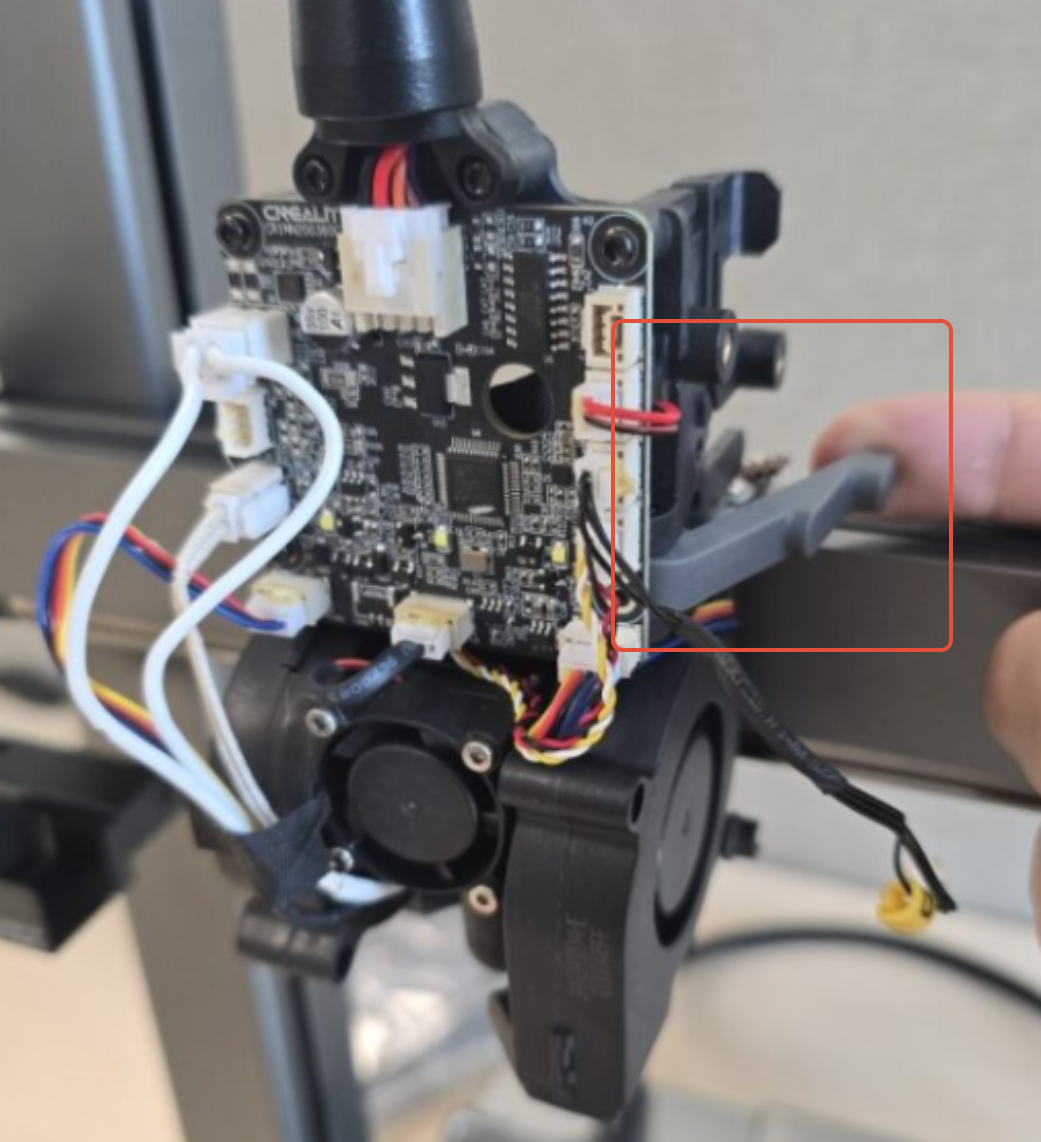

Step 5. Disconnect the Filament Cutter Cable, Extruder Motor, Heater Cable, Thermistor and Hotend Fan Cable


Carefully disconnect Filament Cutter Cable, Extruder Motor, Heater Cable, Thermistor and Hotend Fan Cables from the Extruder Board.



____________________________________________________________________________________

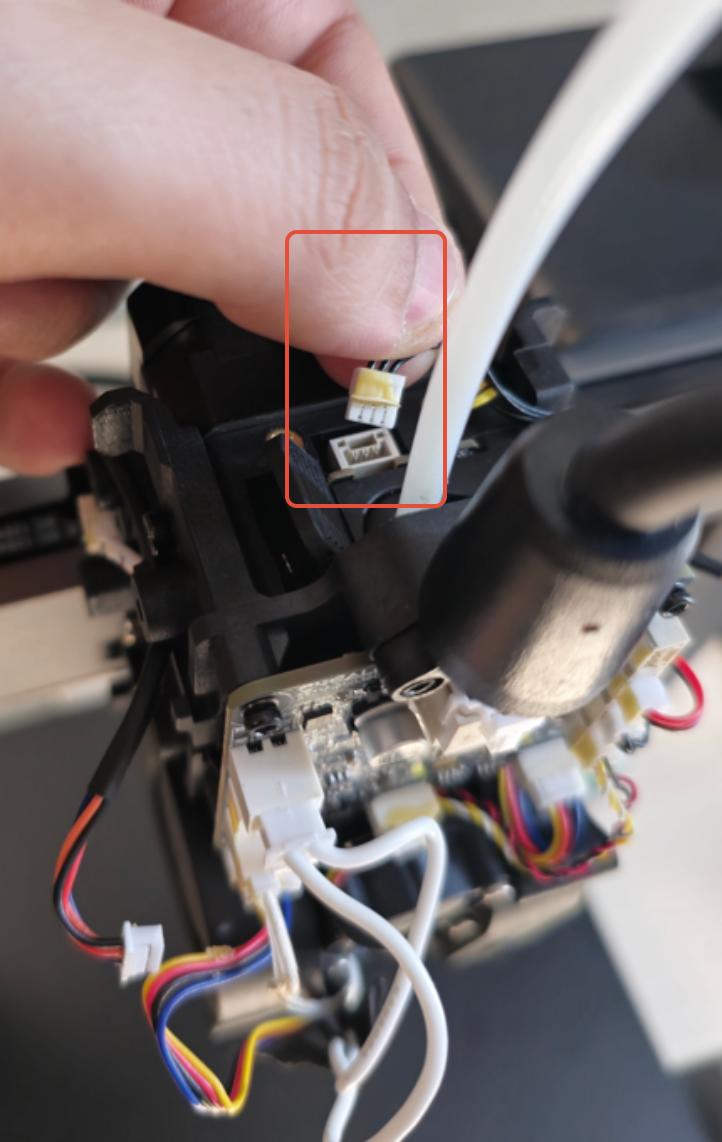

Step 6. Unplug the Filament Sensor Cable from the Filament Sensor


Disconnect the filament sensor cable from the sensor.



____________________________________________________________________________________


Step 7. Unscrew the mounting screws for the Extruder


Use the 2.5mm Hex driver to remove the screws securing the extruder to its mount.



____________________________________________________________________________________

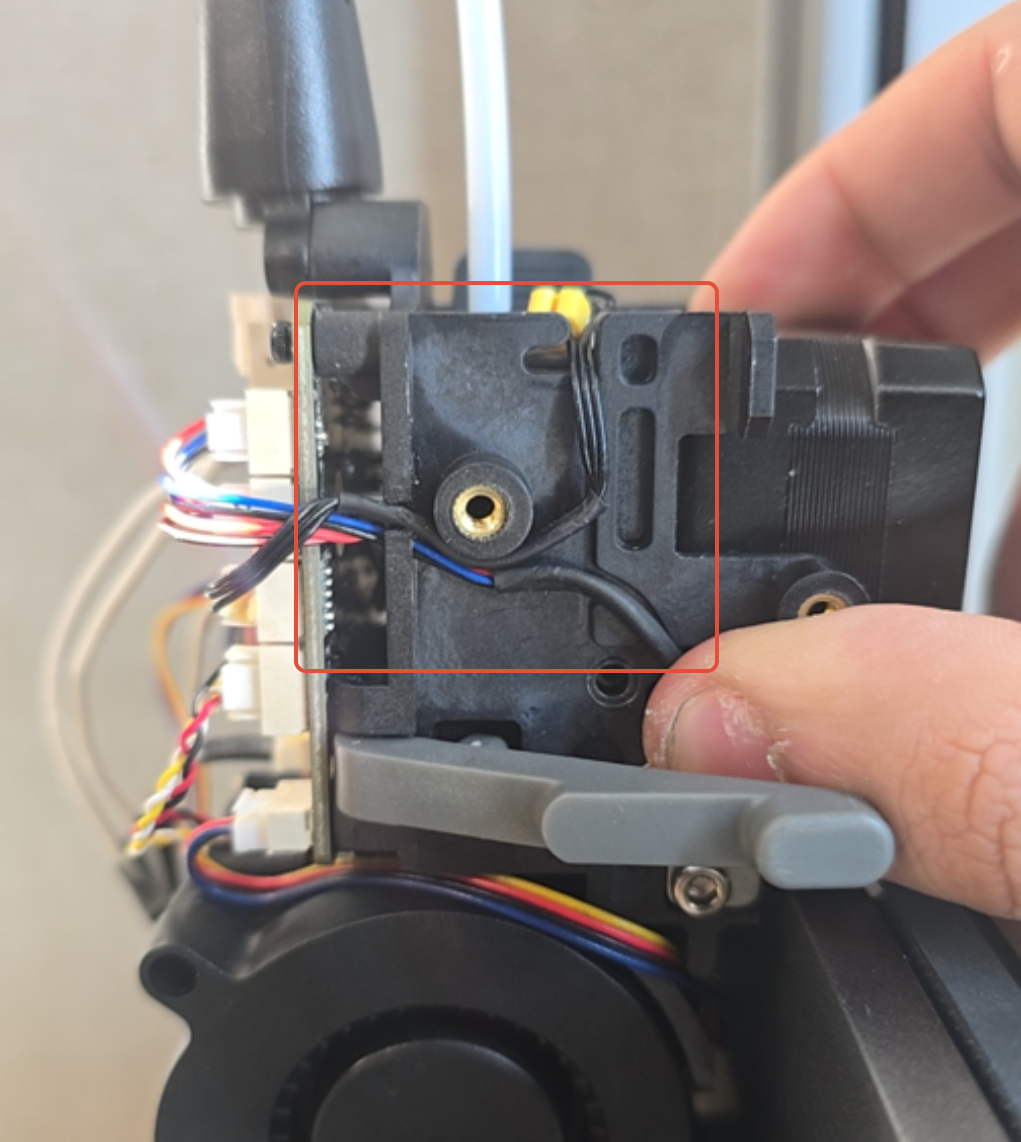

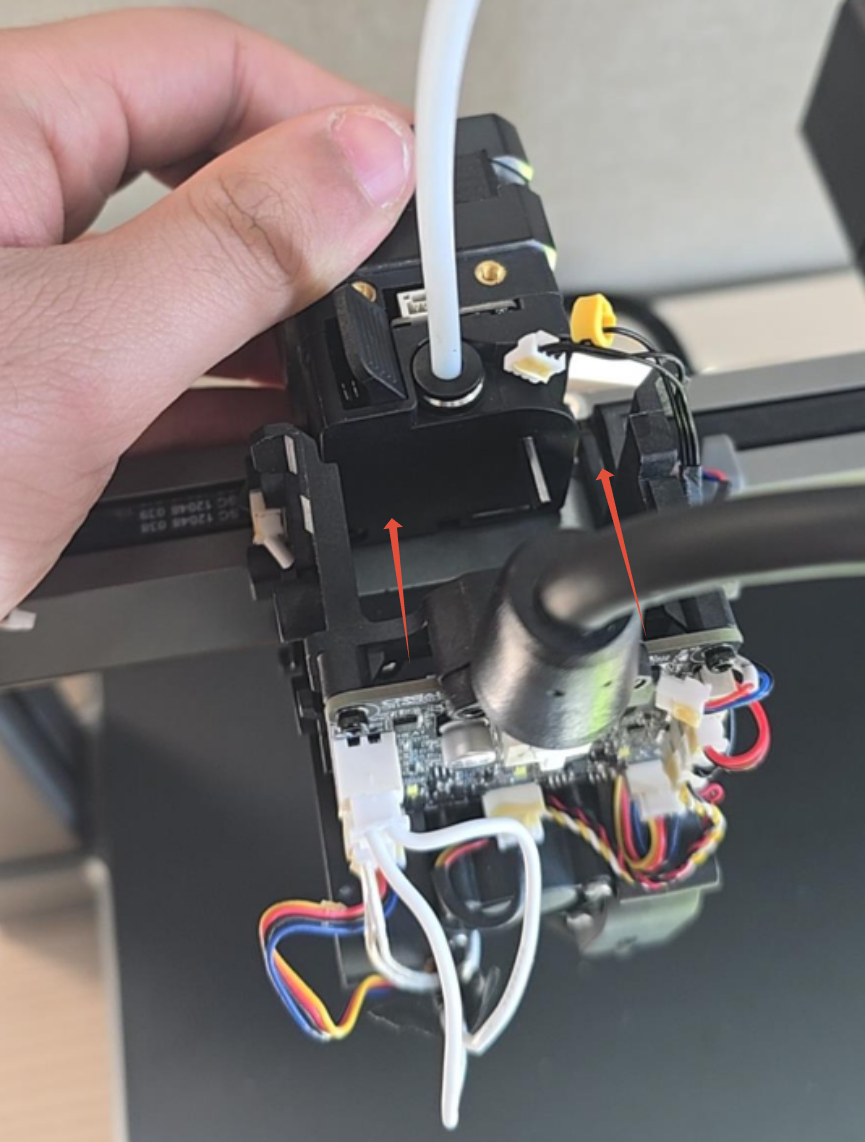

Step 8.  Slide the Extruder out


Carefully slide the extruder out from its mount.



____________________________________________________________________________________

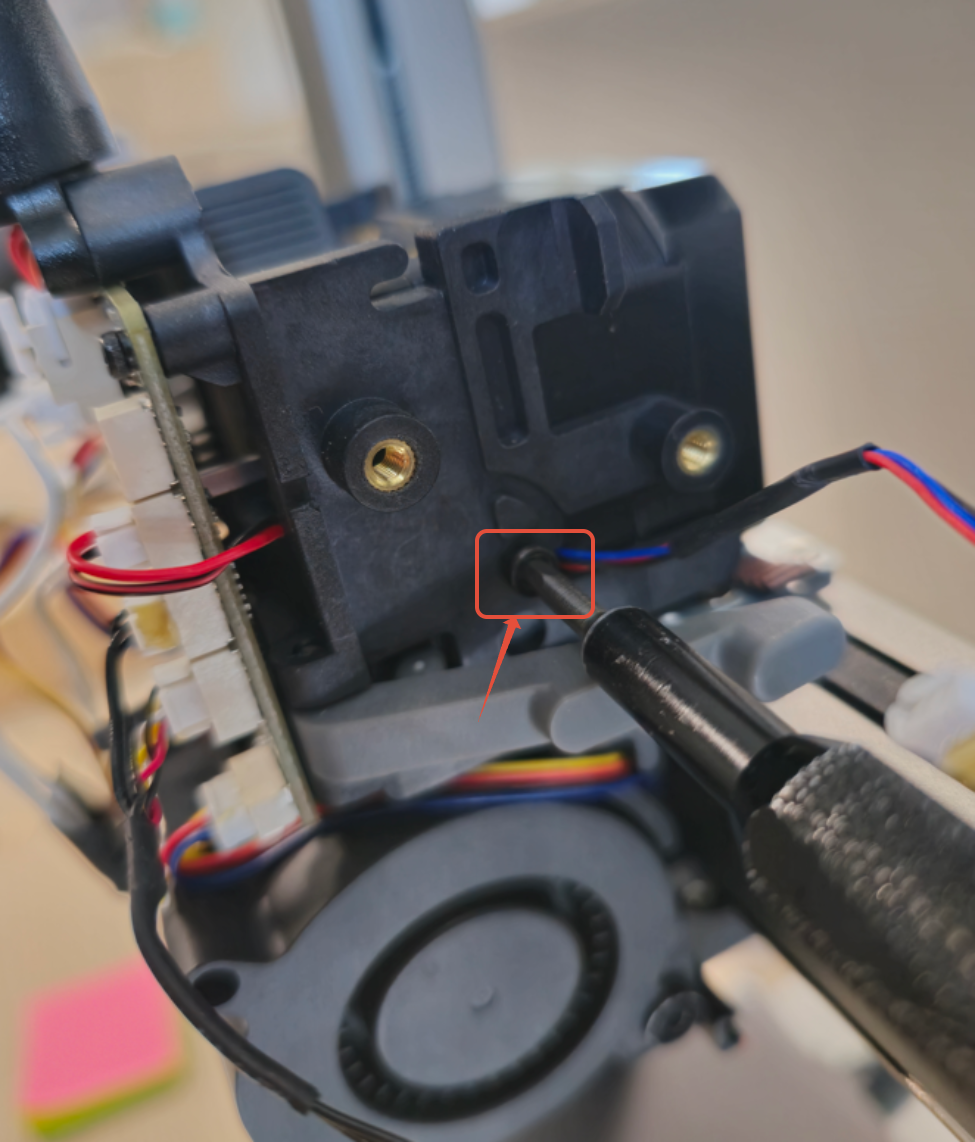

Step 9. Remove the PTFE tube from the Extruder

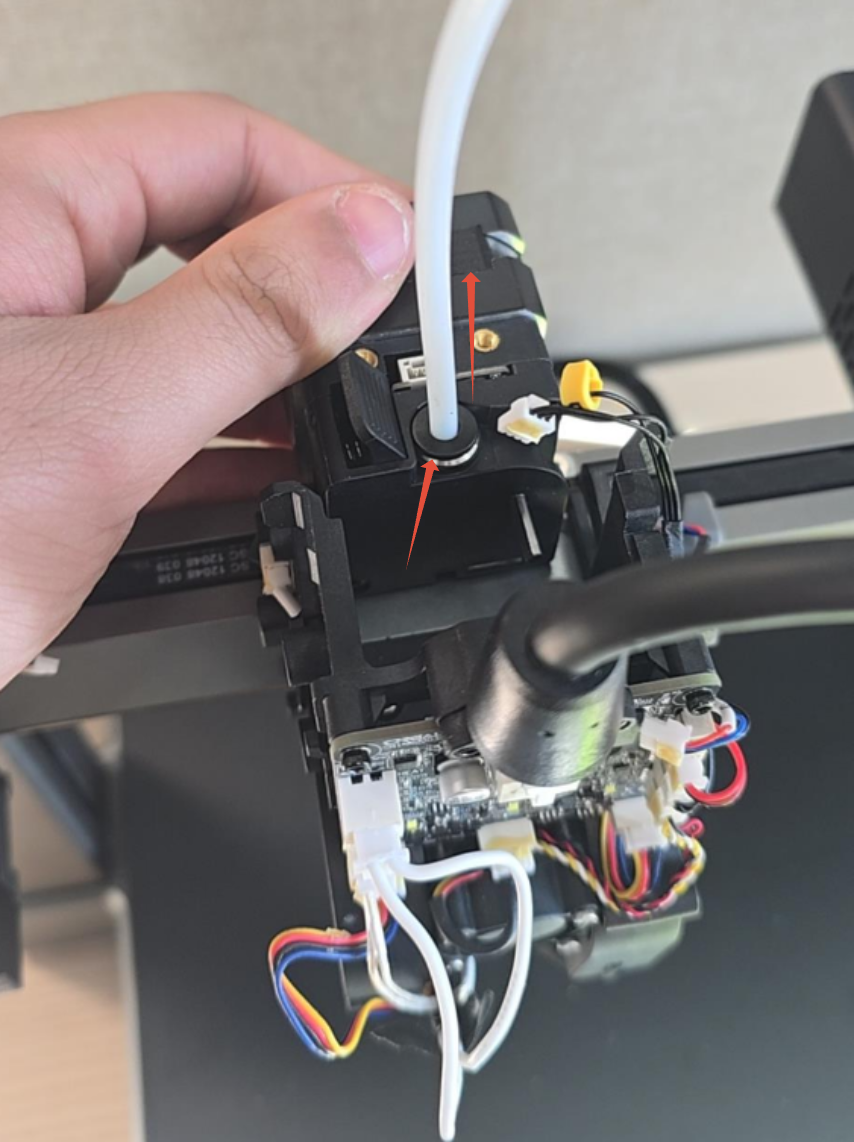

To remove the PTFE tube, first push the coupler down (marked with an arrow in the photo). Once released, pull the PTFE tube upwards to disconnect it.



____________________________________________________________________________________


Step 10. Unscrew the Hotend from the Strain Gauge


Use your 2mm Hex Driver to remove the screws securing the Hotend to the Strain Gauge.



____________________________________________________________________________________

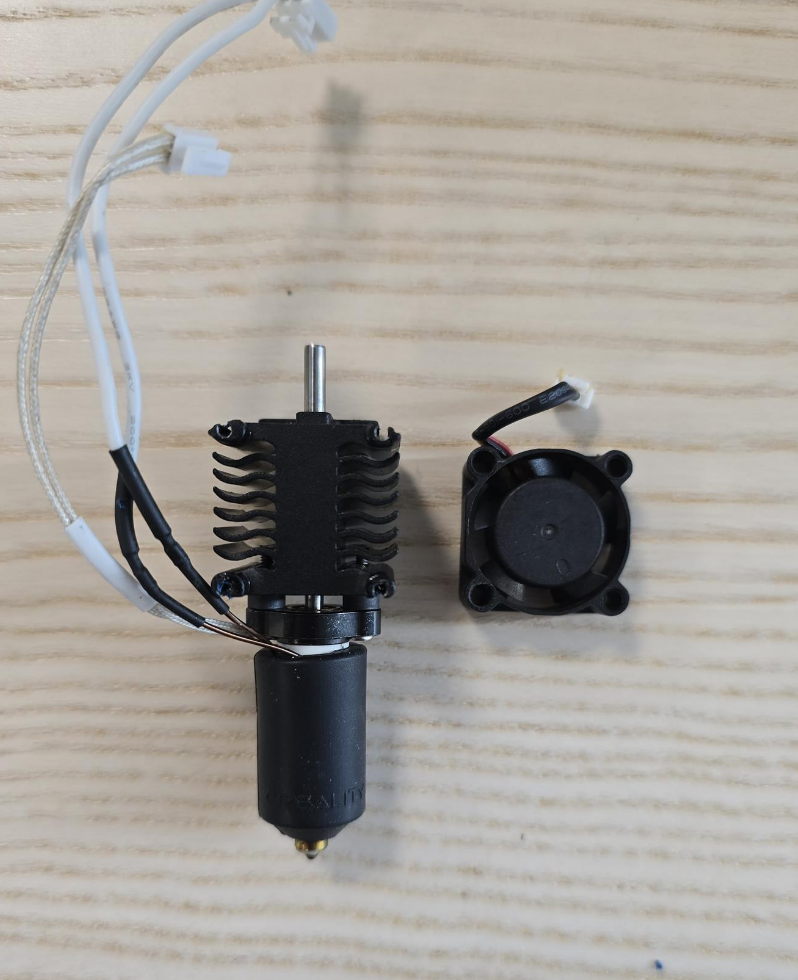

Step 11. Remove the Hotend From the Print Head and Unscrew the Hotend Fan.

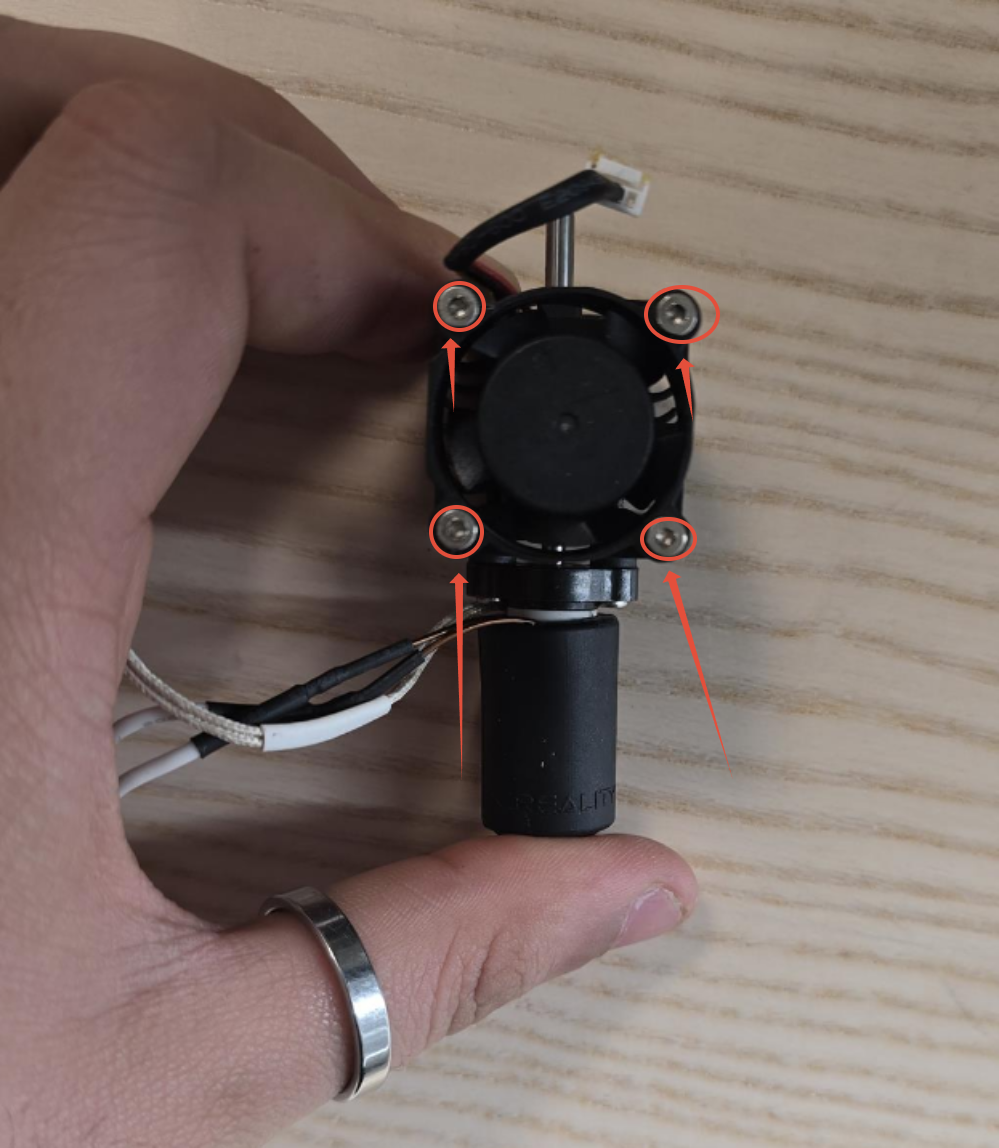

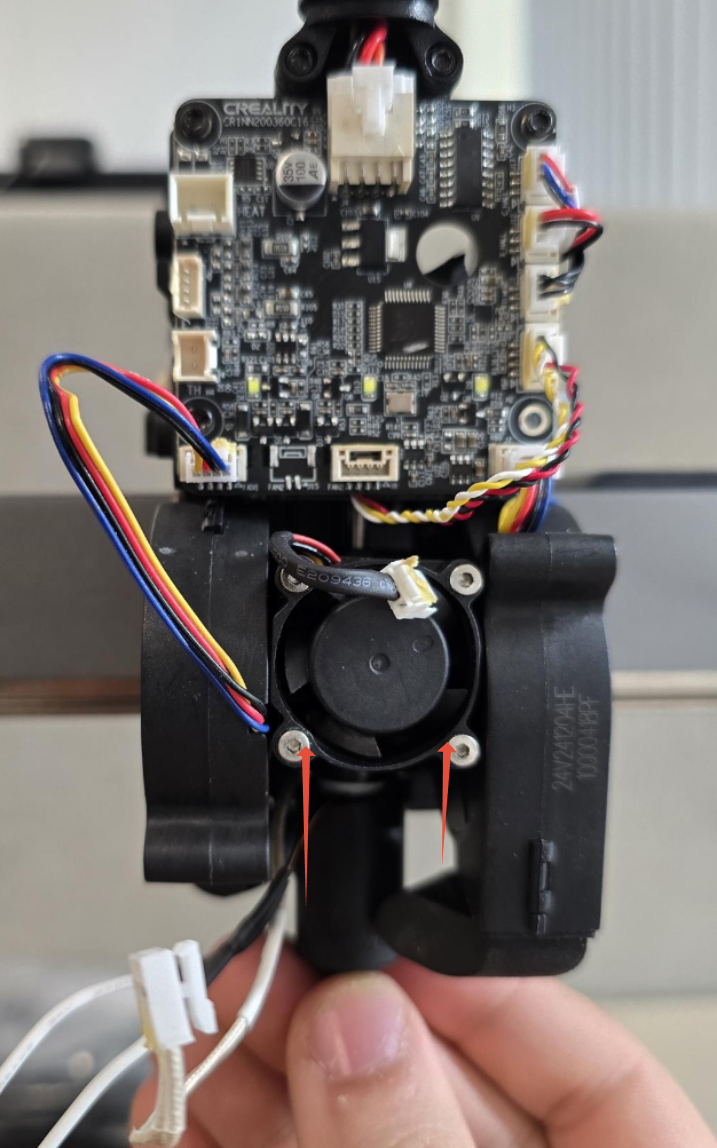

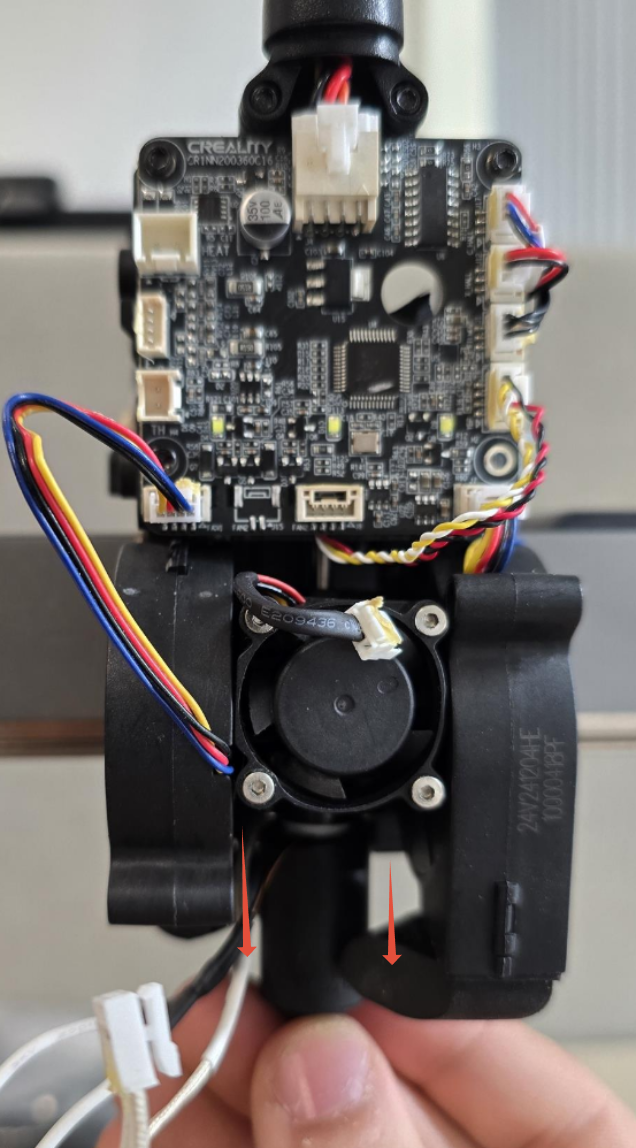

Gently pull down on the Hotend to detach it from the Print Head. Next, use your 1.5mm Hex Driver to unscrew the fastener securing the Hotend Fan to the Heat Sink.



____________________________________________________________________________________

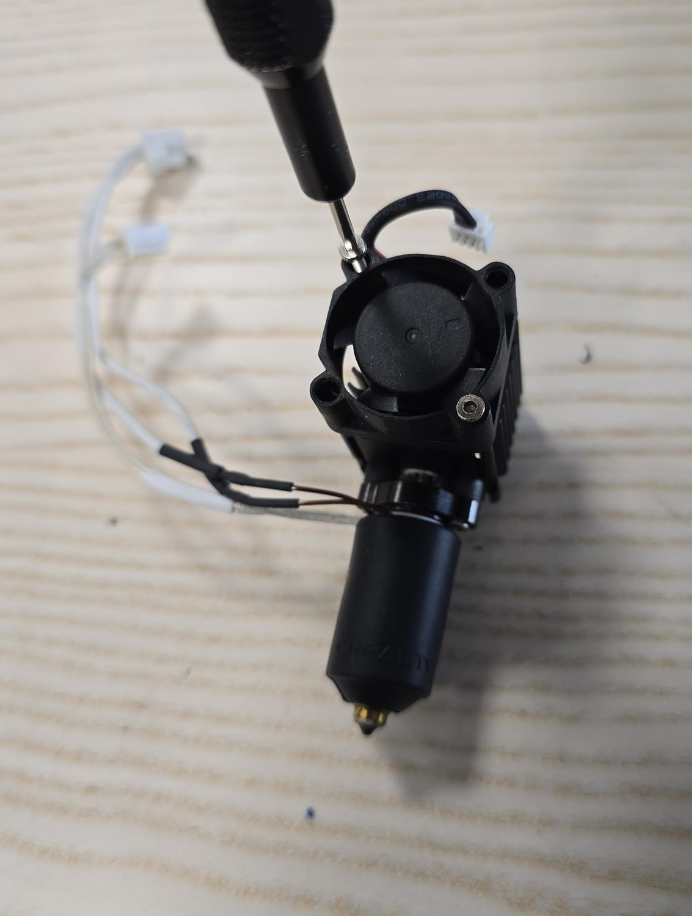

Step 12. Attach your Hotend fan to your replacement Hotend.


Use your 1.5mm Hex Driver to securely fasten the Hotend Fan to the Heatsink. Be careful not to overtighten the screw to avoid damaging the mounting holes.



____________________________________________________________________________________


Step 13. Insert the Hotend into the Print Head and secure it to the Strain Gauge.


Align the Heatbreak with its designated hole and carefully slide the Hotend into place. Once positioned, use your 2mm Hex Driver to secure the Hotend to the Strain Gauge. Ensure the screws are tightened properly to prevent the Hotend from coming loose.



____________________________________________________________________________________




Step 14. Insert the PTFE Tube and fasten the Extruder


Push the PTFE tube down into the coupler.

Slide the extruder back into place and secure it with the screws using the 2.5mm Hex driver. Ensure the filament cutter arm is in its open state.



____________________________________________________________________________________


Step 15. Plug in the Filament Cutter Cable, Extruder Motor, Heater Cable, Thermistor and Hotend Fan Cable


Plug the Filament Cutter Cable, Extruder Motor, Heater Cable, Thermistor and Hotend Fan Cable cable back into their respective connectors.




____________________________________________________________________________________

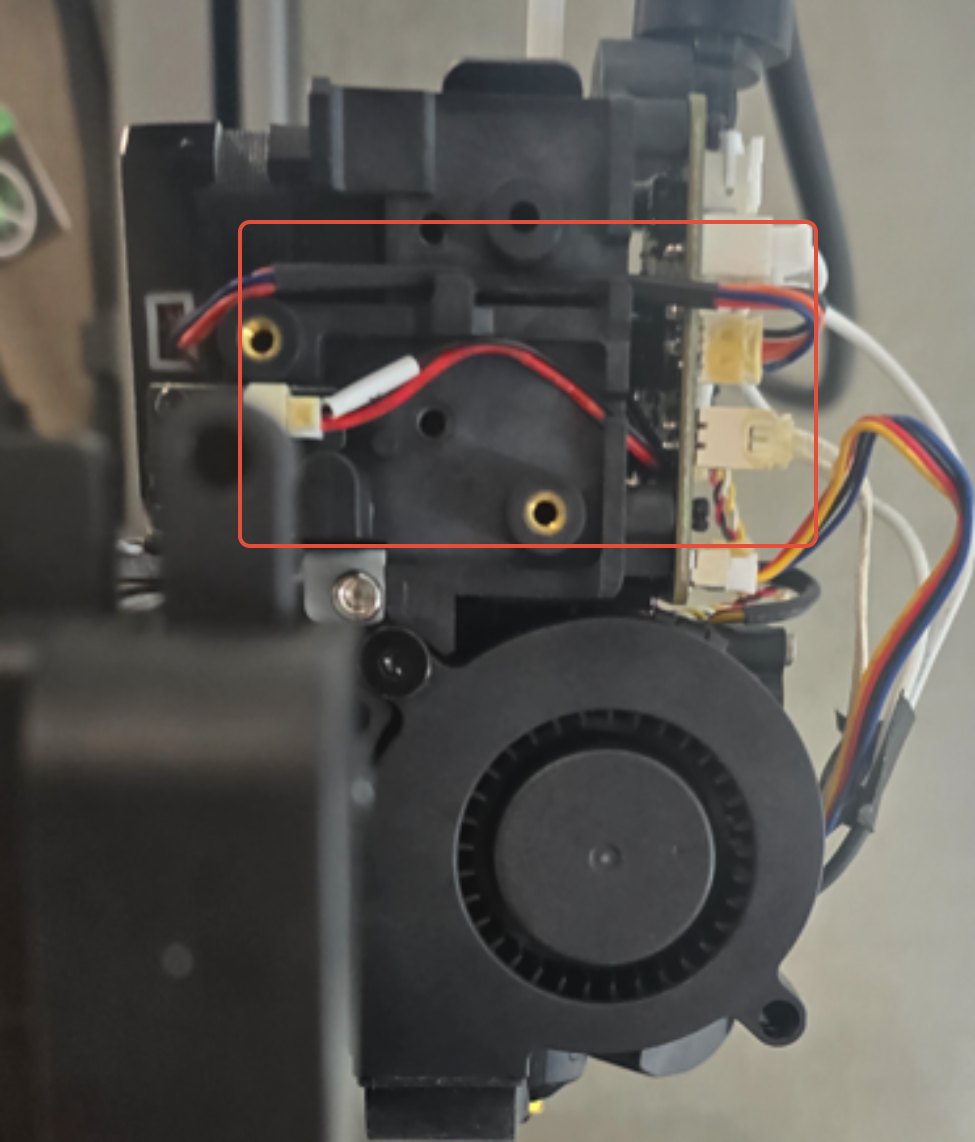

Step 16. Ensure that the cables are organized into their grooves


Ensure that the cables are properly routed into their grooves to avoid interference with other components.



____________________________________________________________________________________


Step 17. Install the Extruder Motor Cover


Use your 2mm Hex driver to secure the screws holding the extruder motor cover.



____________________________________________________________________________________



Step 18. Install the Extruder Indicator Wheel


Ensure the extruder indicator wheel is fully seated. If it's not properly aligned, the front tool head cover may not fit correctly.


____________________________________________________________________________________


Step 19. Install the Front Tool Head Cover and screw it in place


Position the front tool head cover back into place and secure it with the screws.



Step 20. Turn on the machine and run Self Test / Calibration.


Power on the machine and run the self-test / calibration procedure. If no errors appear, the replacement was successful!



Your Hotend replacement is complete!
