How to replace X/Y motor on the K2 Plus/K2 Plus Combo
Warning: Unplug the printer for safety

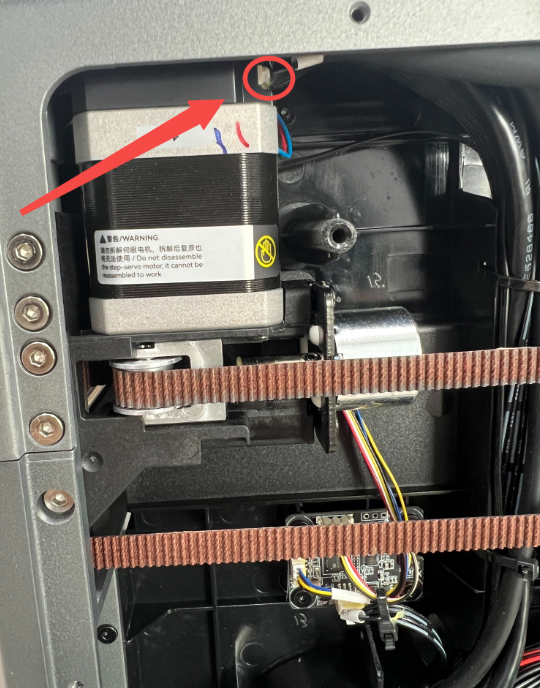

1.Remove the cable from x-motor

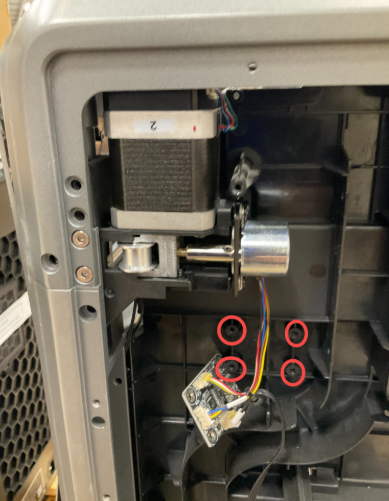

2.Unscrew those four screw show in image: NOTE: (you don't need to take off the belt)

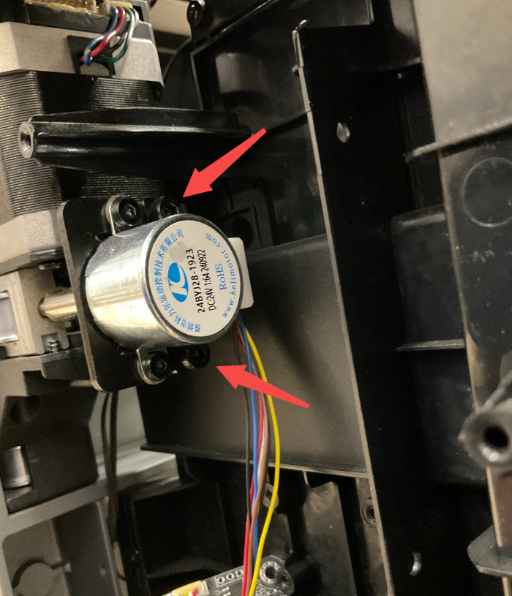

3. Unscrew the screws and remove the belt tensioner (you may need to loosen the belt a little).

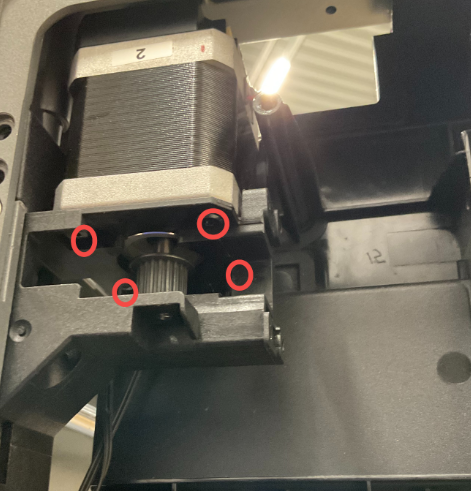

4. Unscrew the four visible motor screws, and then you can remove the motor itself. ( 2 of them is in the back)

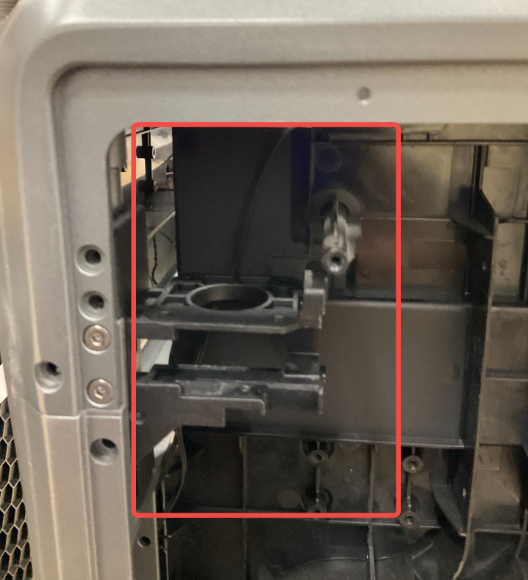

DONE!
Replace the motor and then follow the guide in reverse to put the new motor back in place. Don’t forget to install the belt the correct way.
