Introduction


This guide will walk you through the process of disassembling the print head and replacing the X-axis limit switch.


Important Notes

  1. Strong Yellow Glue: The connector on the X-axis limit switch is secured with a strong yellow glue. You may need to carefully cut or gently wiggle the connectors to release them. Avoid forcing the connector, as this could damage both the X-axis limit switch and the cable.


Tools needed

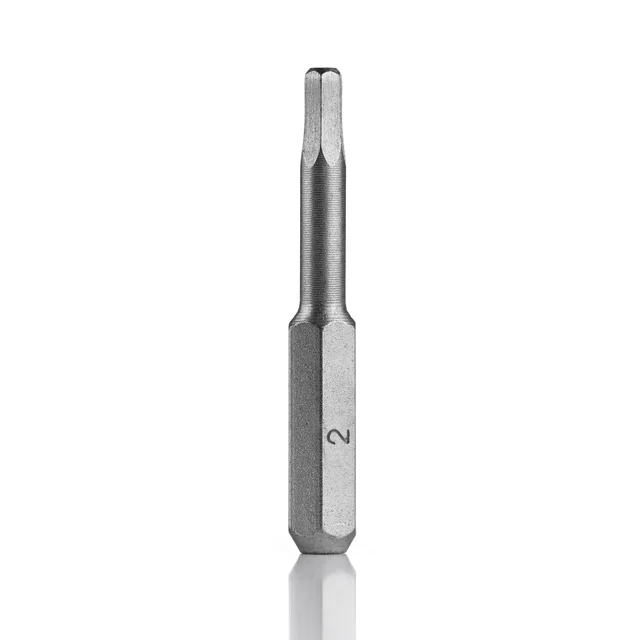

2mm Hex Driver or Hex Key

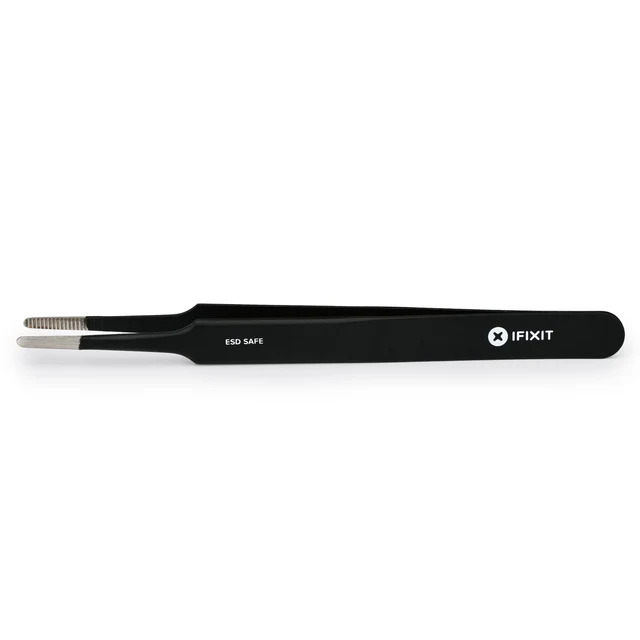

Precision Tweezers (for easier connector removal)

____________________________________________________________________________________

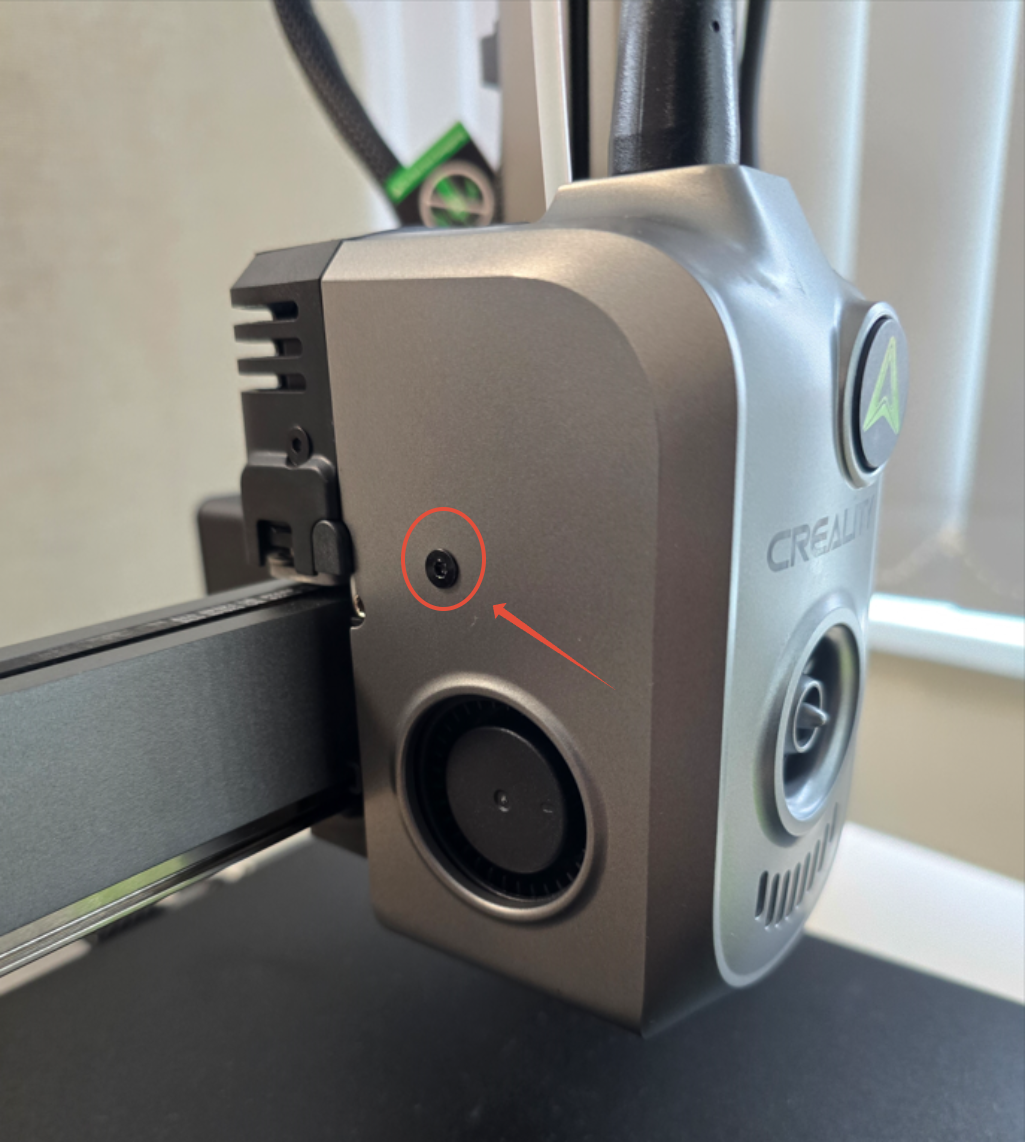

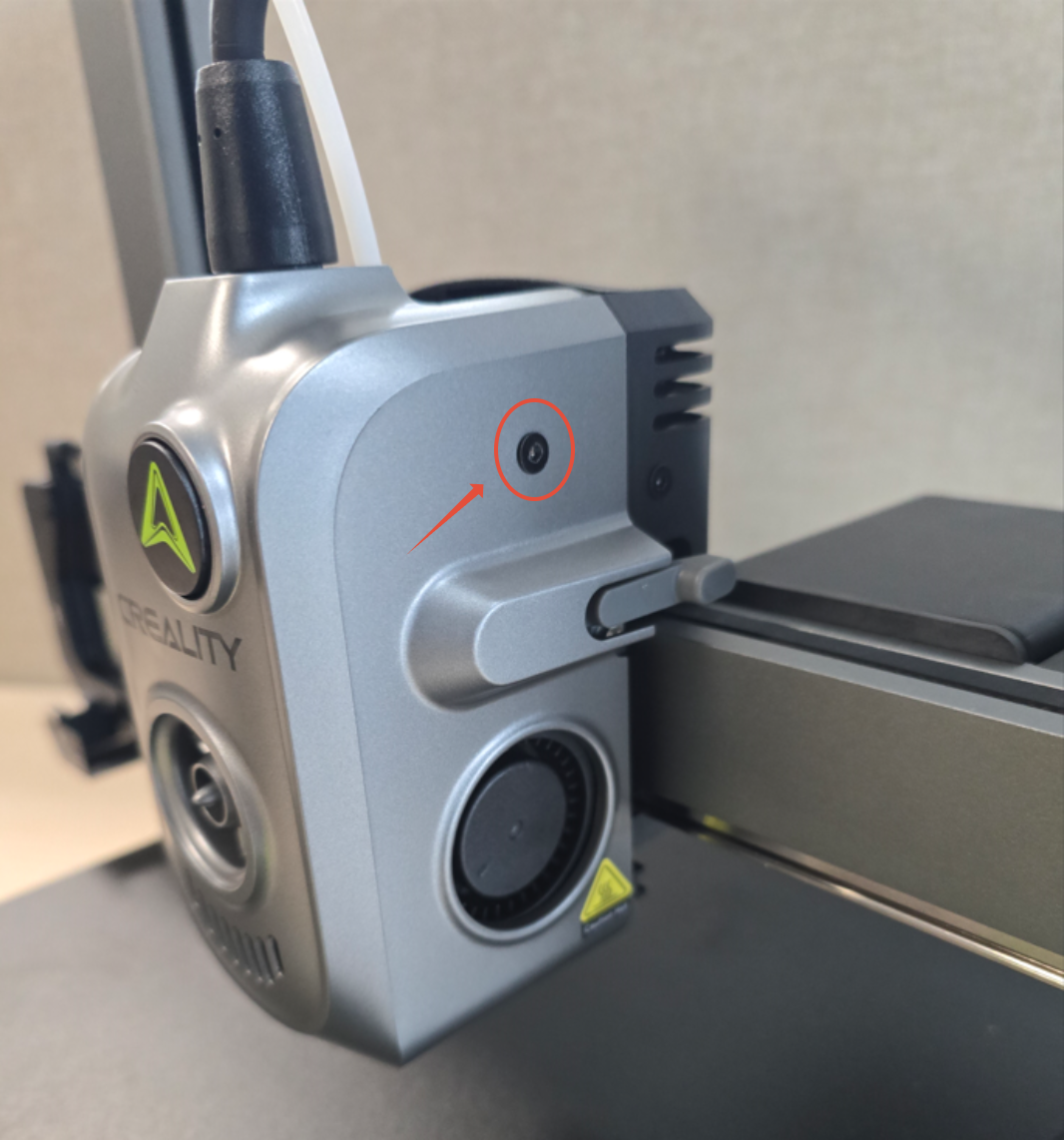

Step 1. Unscrew the 2 Screws holding the Front Tool Head Cover


Use your 2mm Hex driver to remove the screws securing the front cover.


____________________________________________________________________________________

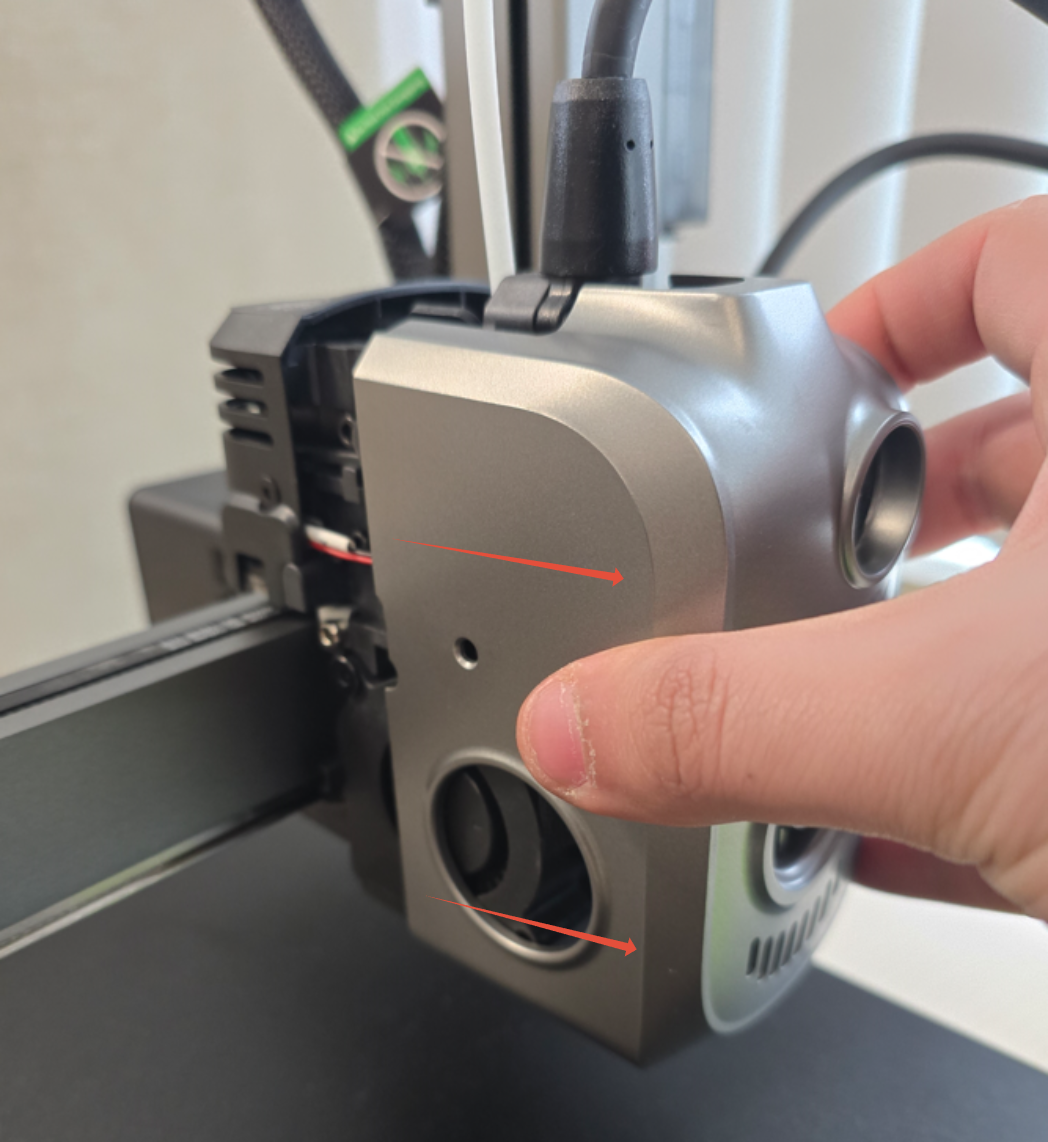

Step 2. Remove the Front Tool Head Cover


Pull the tool head cover towards you to slide it off easily.


Reference Photo:



____________________________________________________________________________________

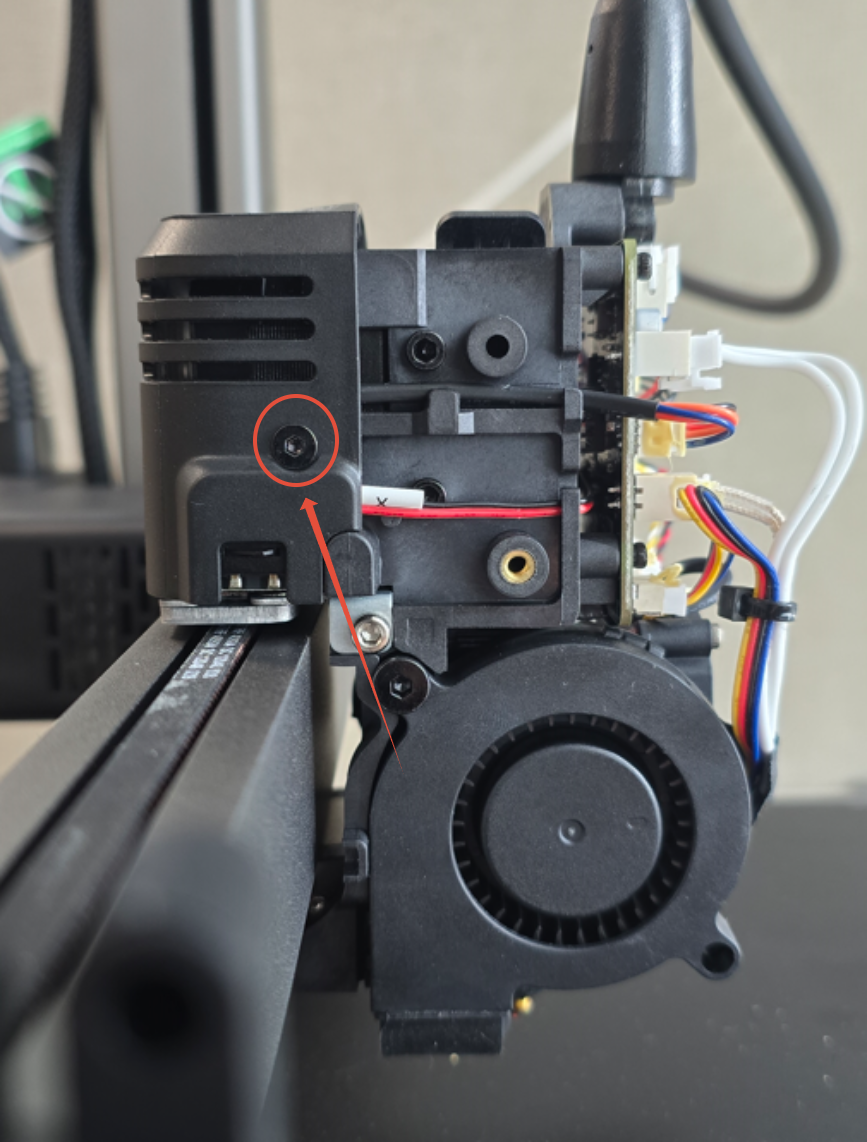

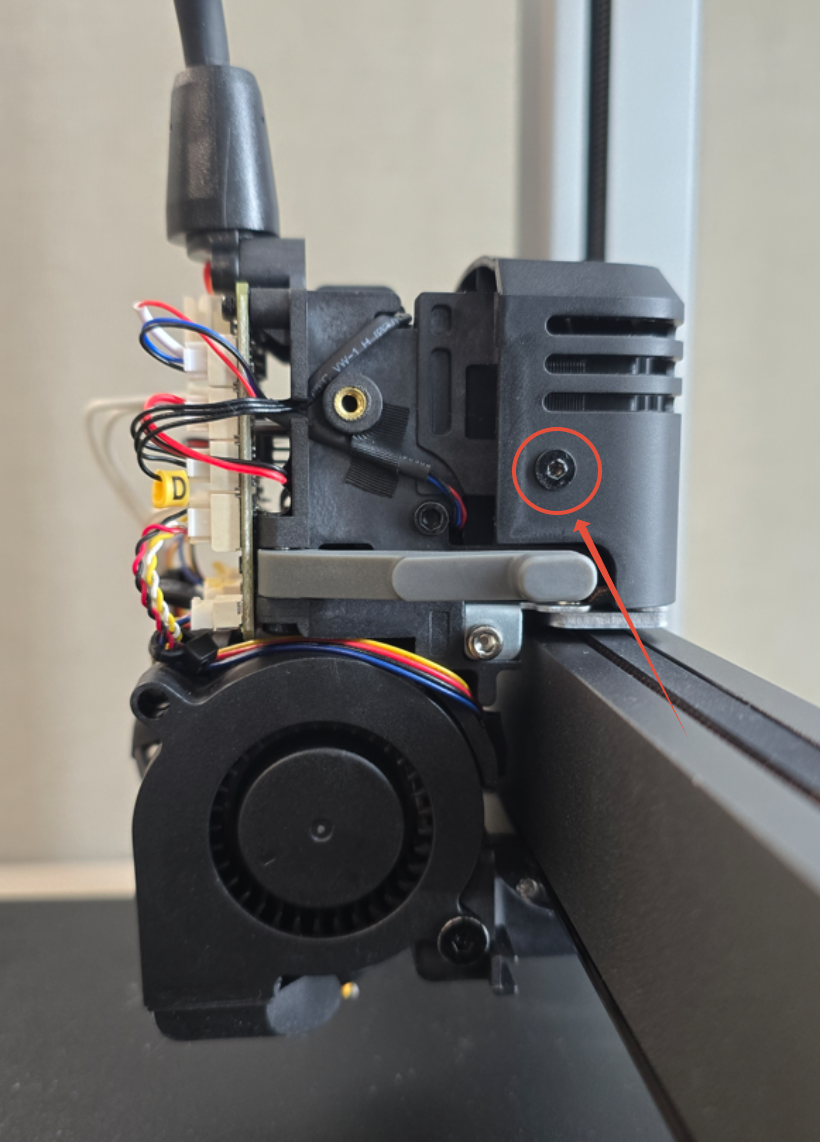

Step 3. Unscrew the 2 screws holding the Extruder Motor Cover and remove the extruder motor cover


Use your 2mm Hex driver to remove the screws securing the extruder motor cover.



____________________________________________________________________________________


Step 4. Unplugging the X-Axis Limit Switch Cable

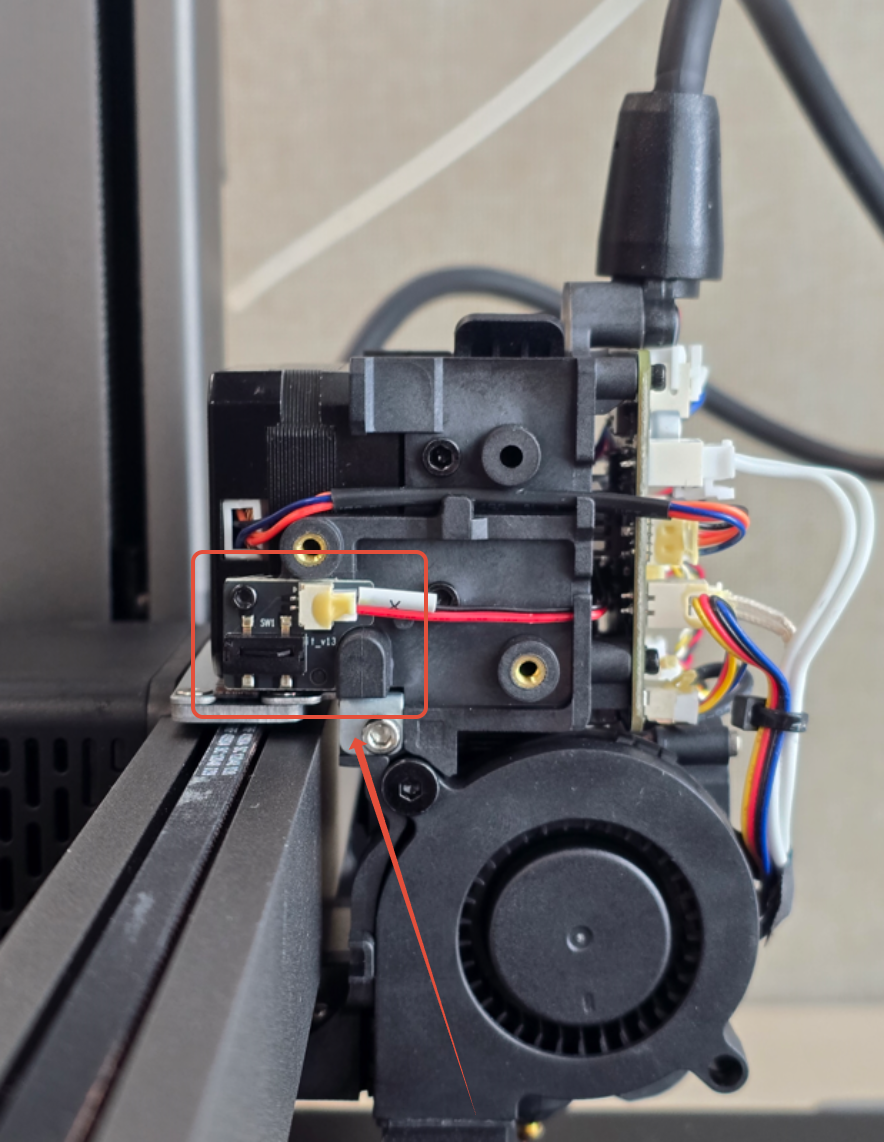

The X-Axis Limit Switch can be located on the left side off the Toolhead.


Important:

The connector on the X-Axis Limit Switch is secured with strong yellow glue. Be sure to carefully cut or score through the glue before proceeding.

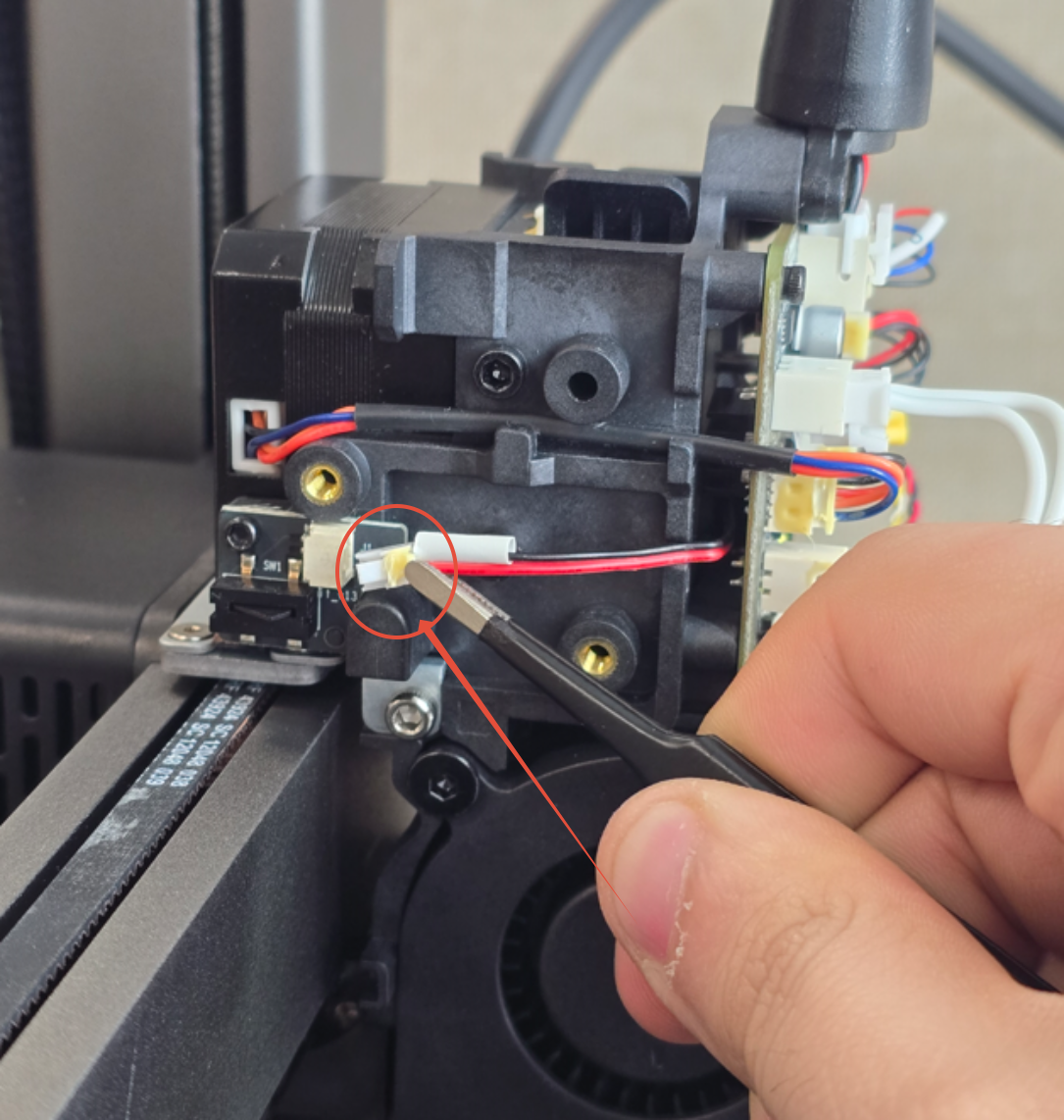

Use a flathead screwdriver to gently score or cut the glue. Once that’s done, you'll need to compress a latch to release the cable. I recommend using tweezers for better precision and ease. For reference, please see the photos below:



____________________________________________________________________________________

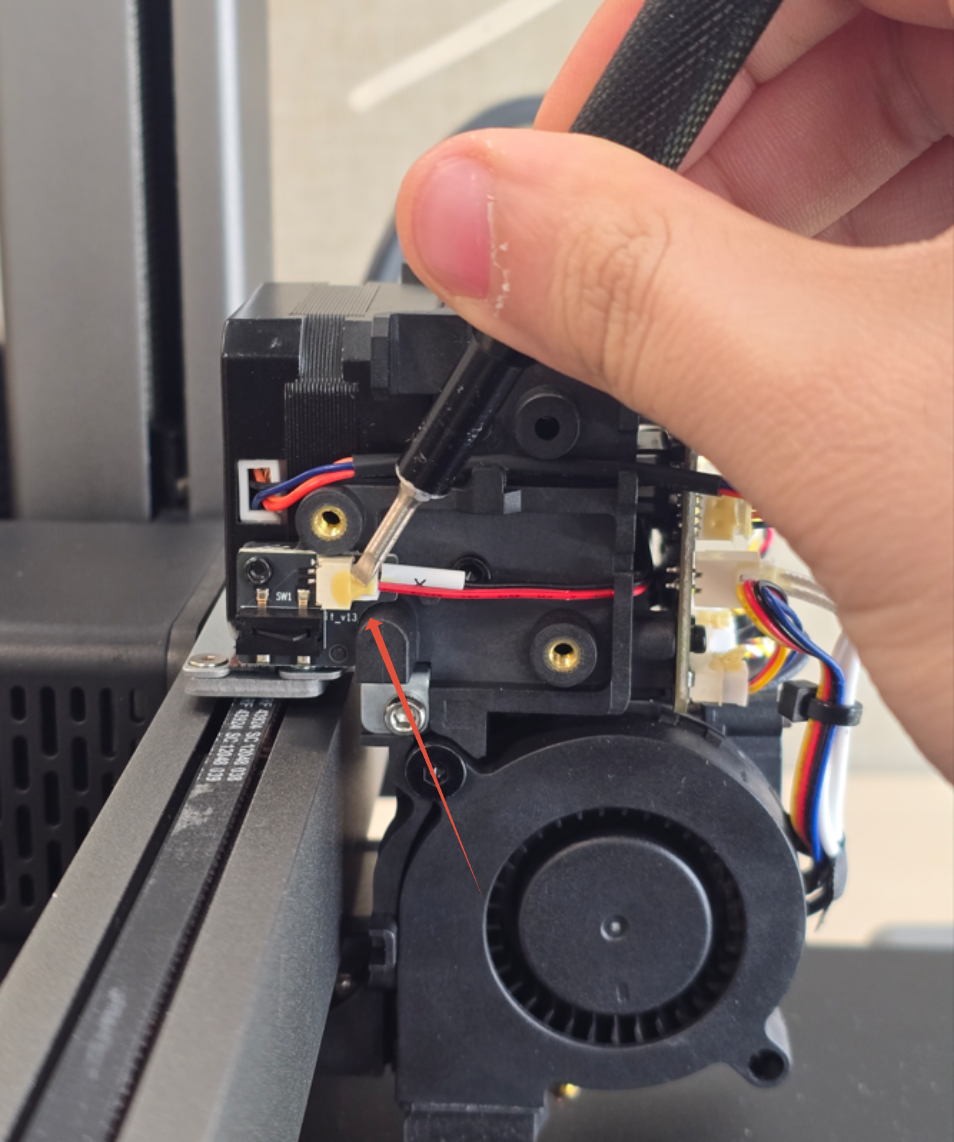

Step 5. Unscrew the X-Axis Limit Switch

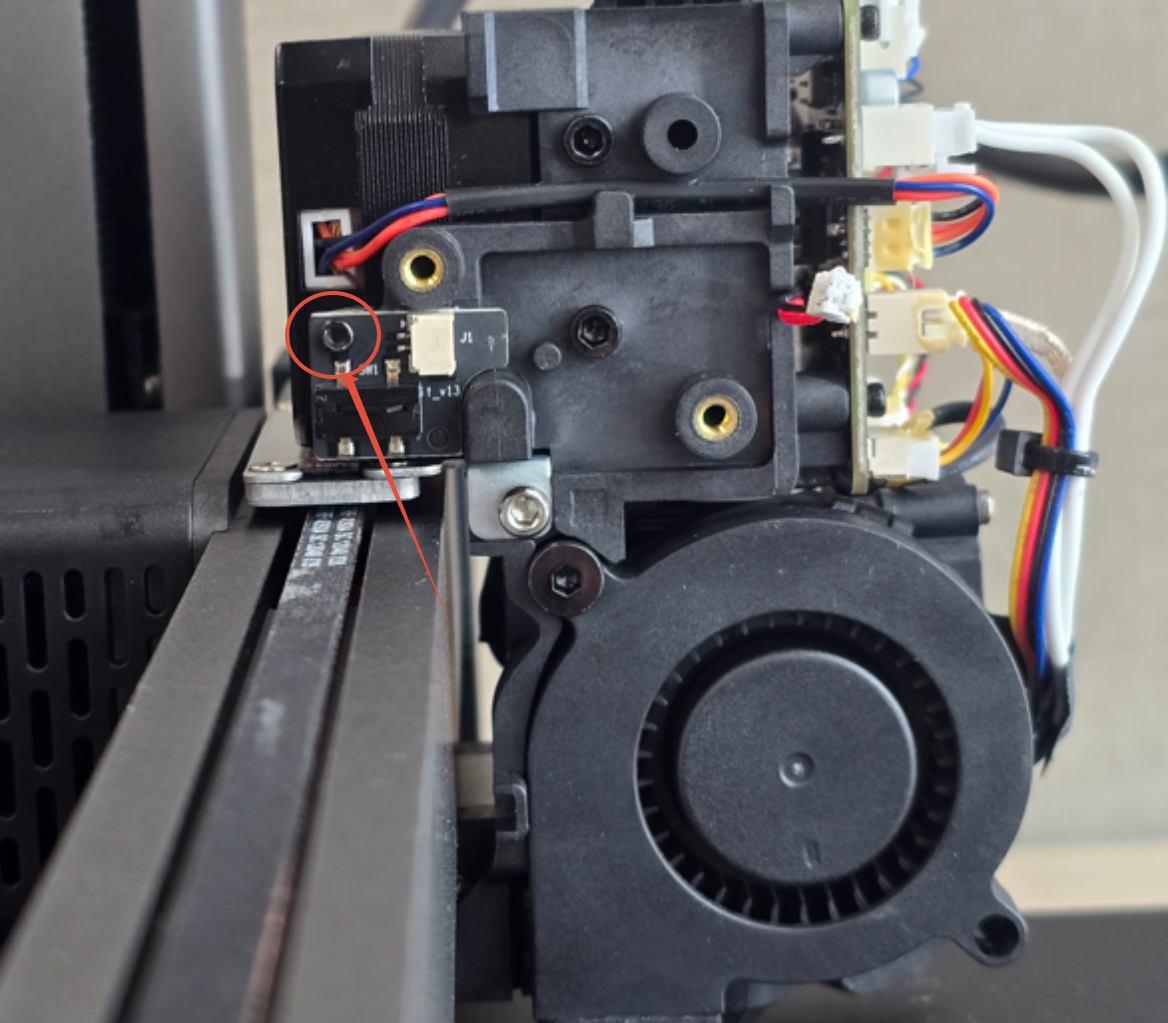

Use your 2mm Hex driver to remove the screw securing the x-axis limit switch.



____________________________________________________________________________________


Step 6. Remove the X-Axis Limit Switch and replace it with a new one.

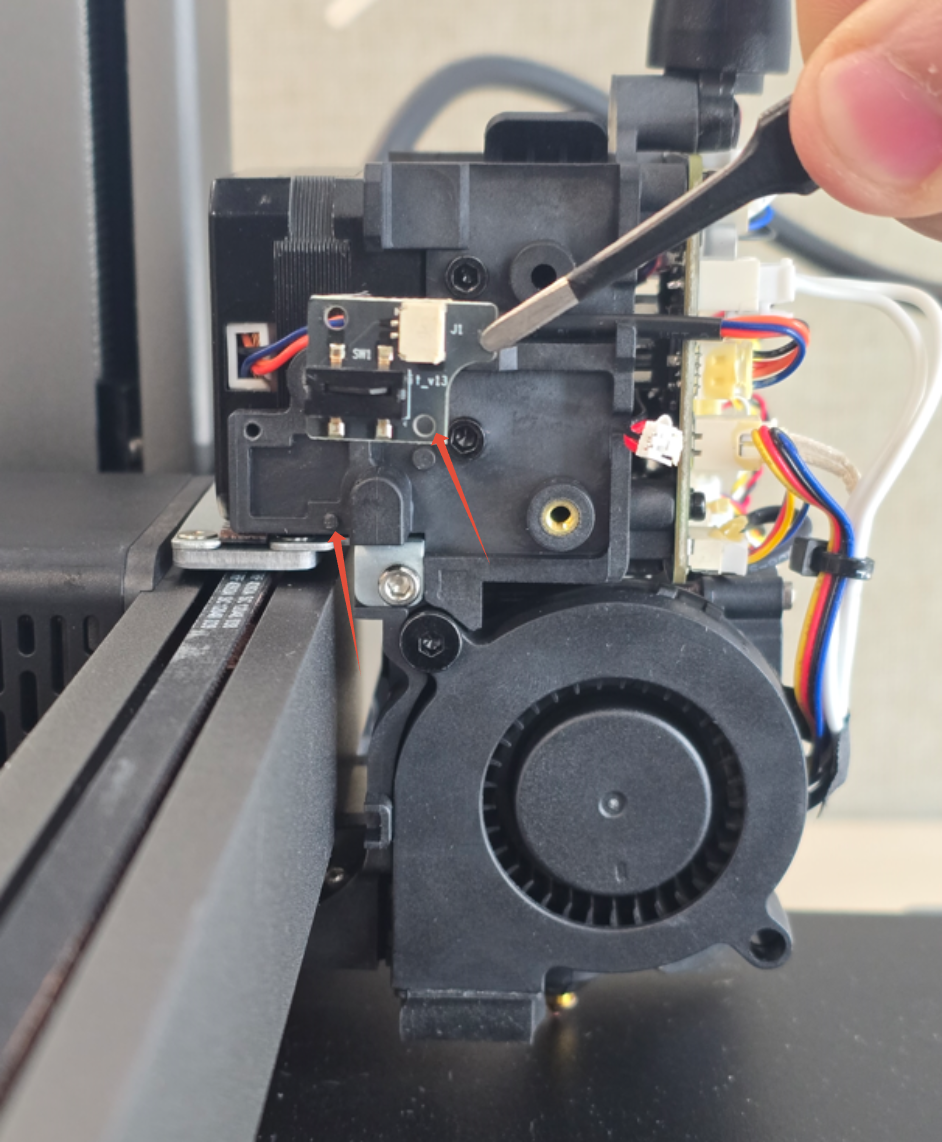

When installing the new board, you'll notice a notch that aligns with the hole on the X-Axis Limit Switch. This alignment is clearly marked in the photo below for your reference.


Once the switch is aligned, use your 2mm Hex driver to tighten the screw and securely fasten the X-Axis Limit Switch in place.


____________________________________________________________________________________


Step 7. Install the Extruder Motor Cover


Use your 2mm Hex driver to secure the screws holding the extruder motor cover.



____________________________________________________________________________________



Step 8. Install the Front Tool Head Cover and screw it in place


Position the front tool head cover back into place and secure it with the screws.



____________________________________________________________________________________


Step 9. Turn on the machine and run Self Test / Calibration.


Power on the machine and run the self-test / calibration procedure. If no errors appear, the replacement was successful!



Your X-Axis Limit Switch replacement is complete!
