Creality Hi Hotend Fan Replacement
- Introduction
- Important Notes
- Tools needed
- Step 1. Unscrew the 2 Screws holding the Front Tool Head Cover
- Step 2. Remove the Front Tool Head Cover
- Step 3. Unplug the Hotend Fan cable from the Extruder Board
- Step 4. Unscrew the 4 hotend fan screw securing it to the head sink.
- Step 5. Replace the Hotend Fan and Secure it to the Heat Sink.
- Step 6. Plug in the Hotend Fan cable to the Extruder Board
- Step 7. Install the Front Tool Head Cover and screw it in place
- Step 8. Turn on the machine and run Self Test / Calibration.
____________________________________________________________________________________
Introduction
This guide will walk you through the process of disassembling the print head and replacing the Hotend Fan / Heat Break Axial Fan
Important Notes
- Strong Yellow Glue: The connectors on the Extruder Board is secured with a strong yellow glue. You may need to carefully cut or gently wiggle the connectors to release them. Avoid forcing the connector, as this could damage both the Extruder Board and the cable.
Tools needed

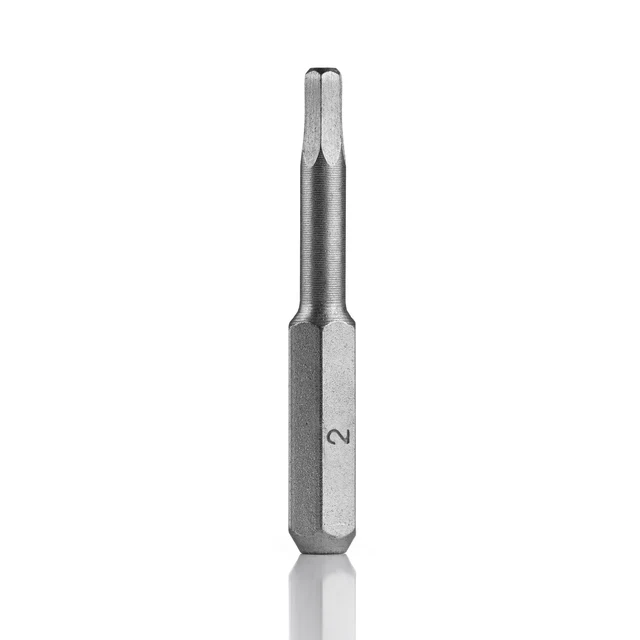

2mm Hex Driver or Hex Key

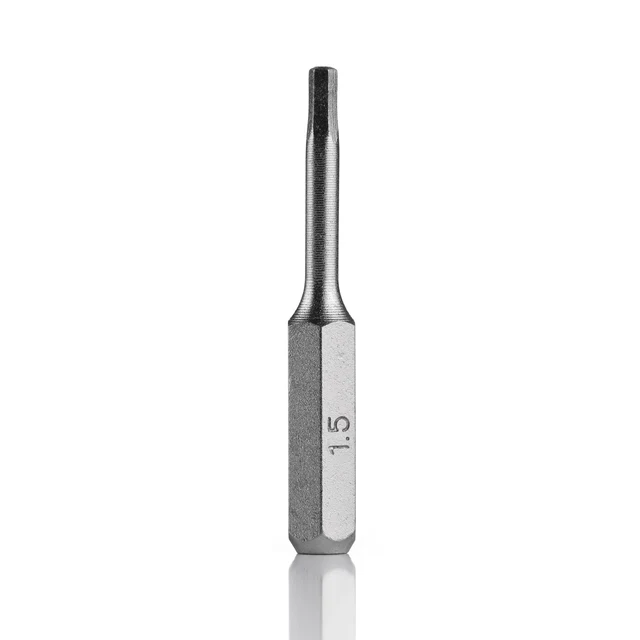

1.5mm Hex Driver or Hex Key

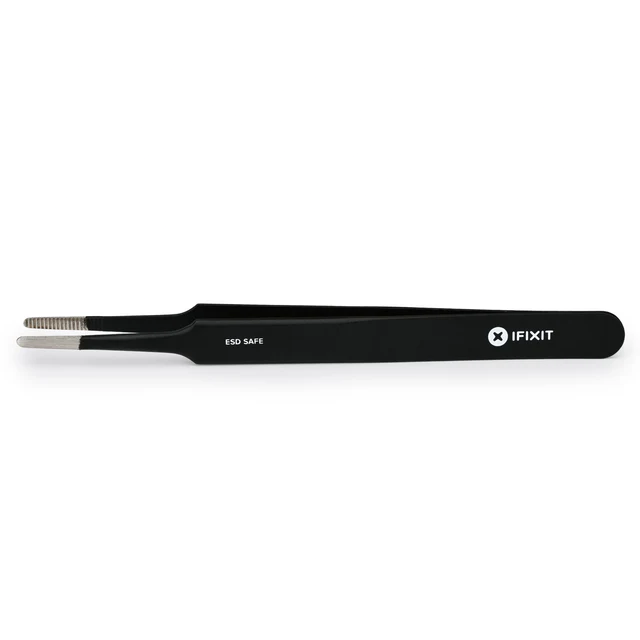

Precision Tweezers (for easier connector removal)
____________________________________________________________________________________
Step 1. Unscrew the 2 Screws holding the Front Tool Head Cover

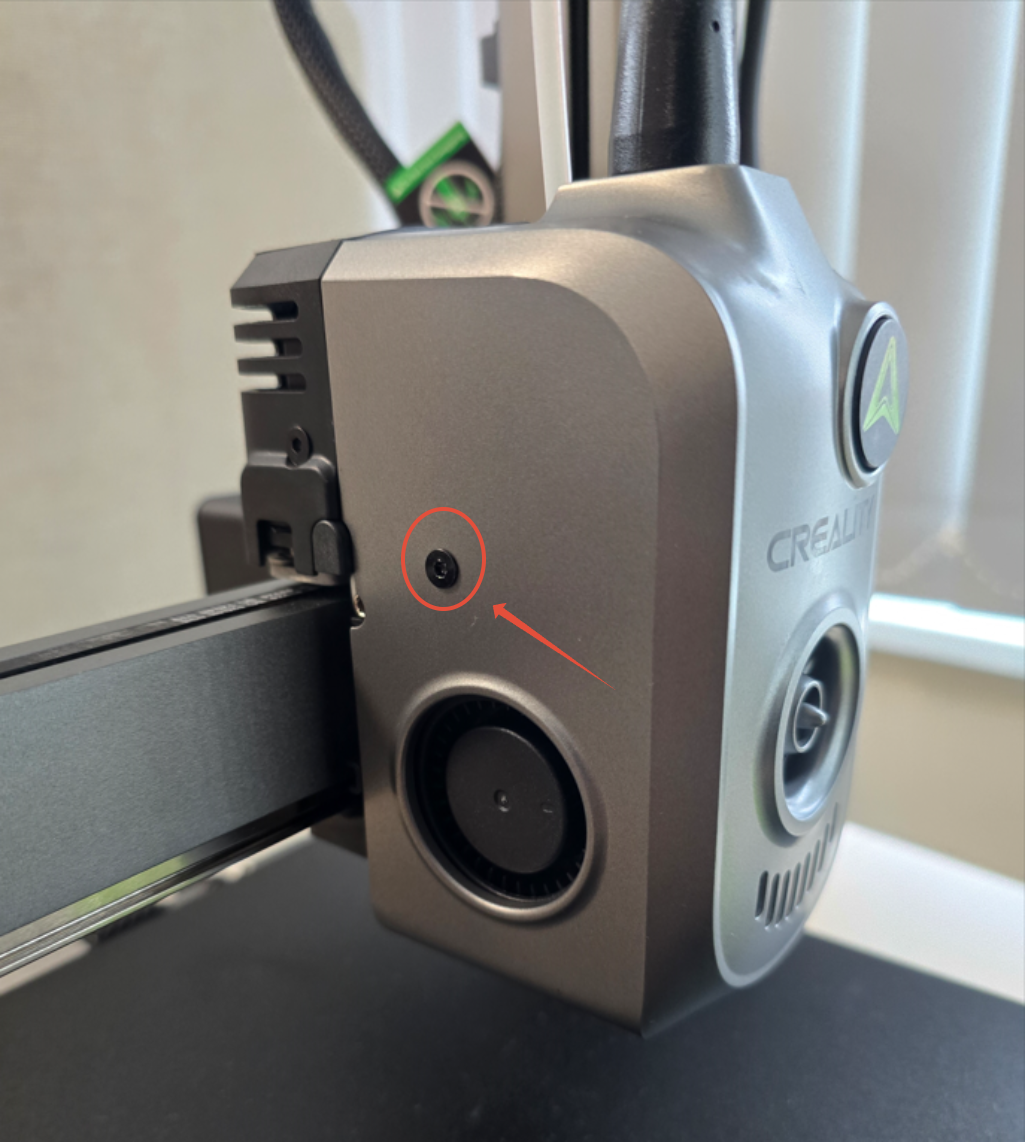

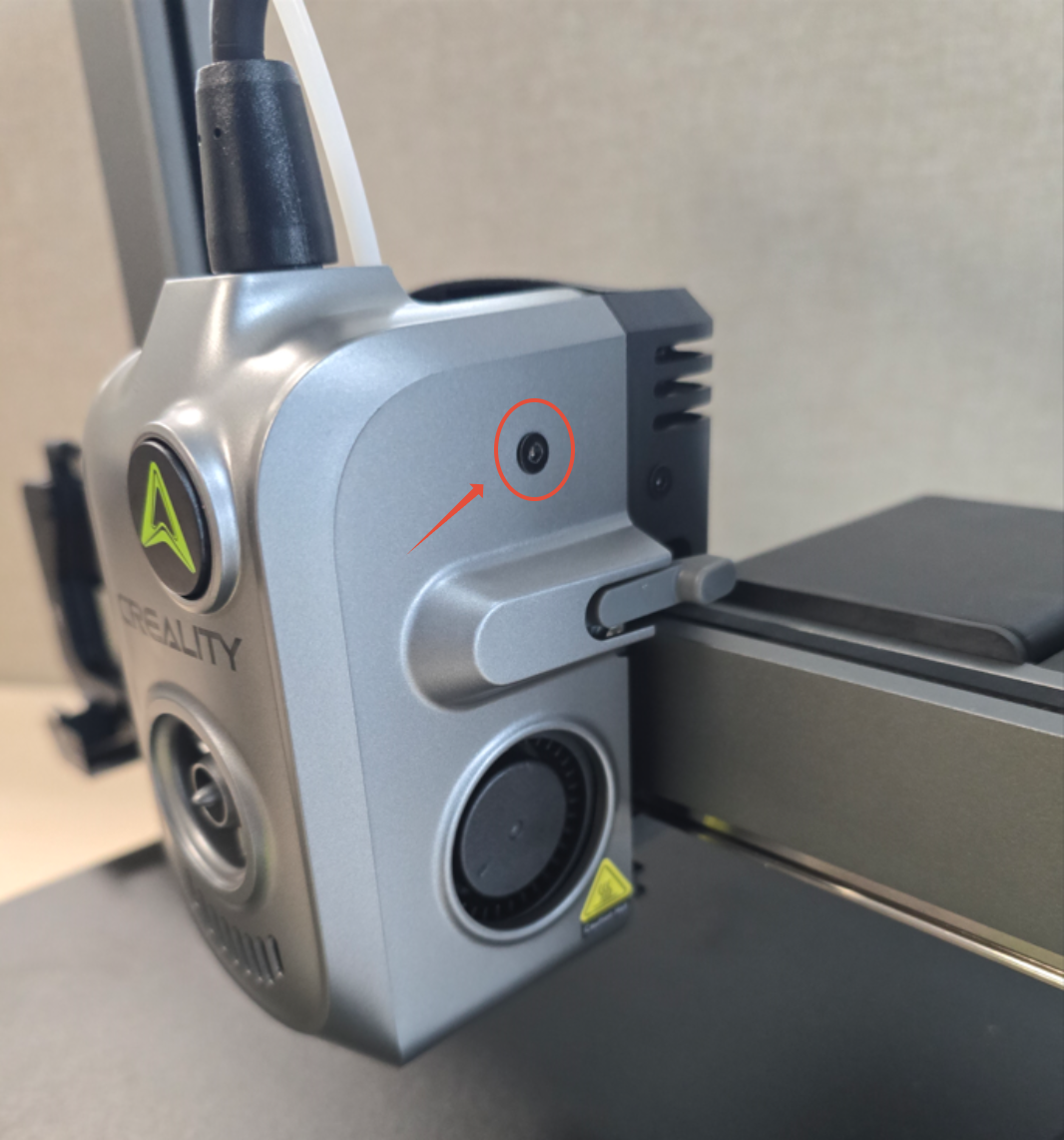

Use your 2mm Hex driver to remove the screws securing the front cover.
____________________________________________________________________________________
Step 2. Remove the Front Tool Head Cover

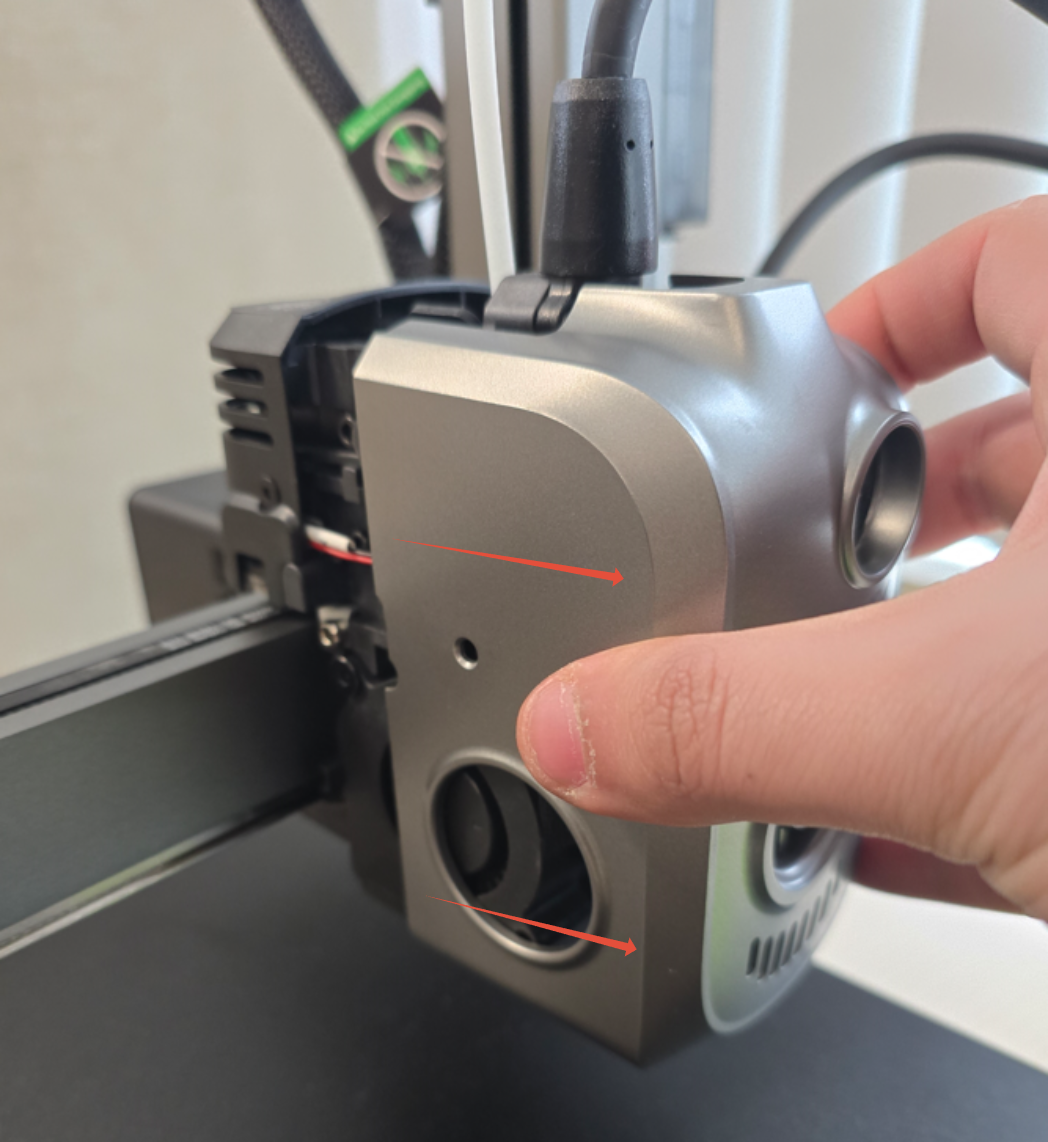

Pull the tool head cover towards you to slide it off easily.
Reference Photo:
____________________________________________________________________________________

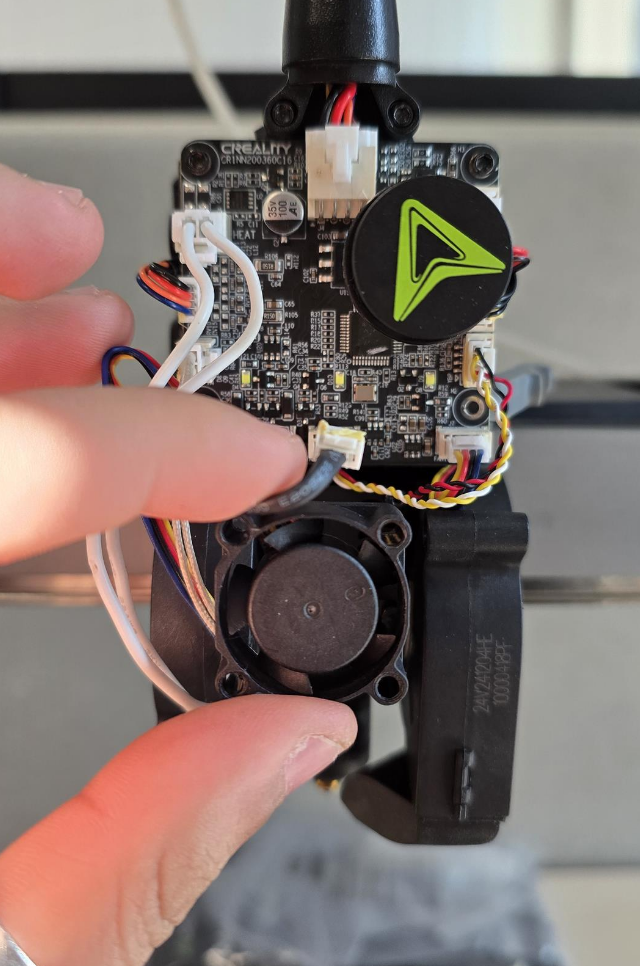

Step 3. Unplug the Hotend Fan cable from the Extruder Board

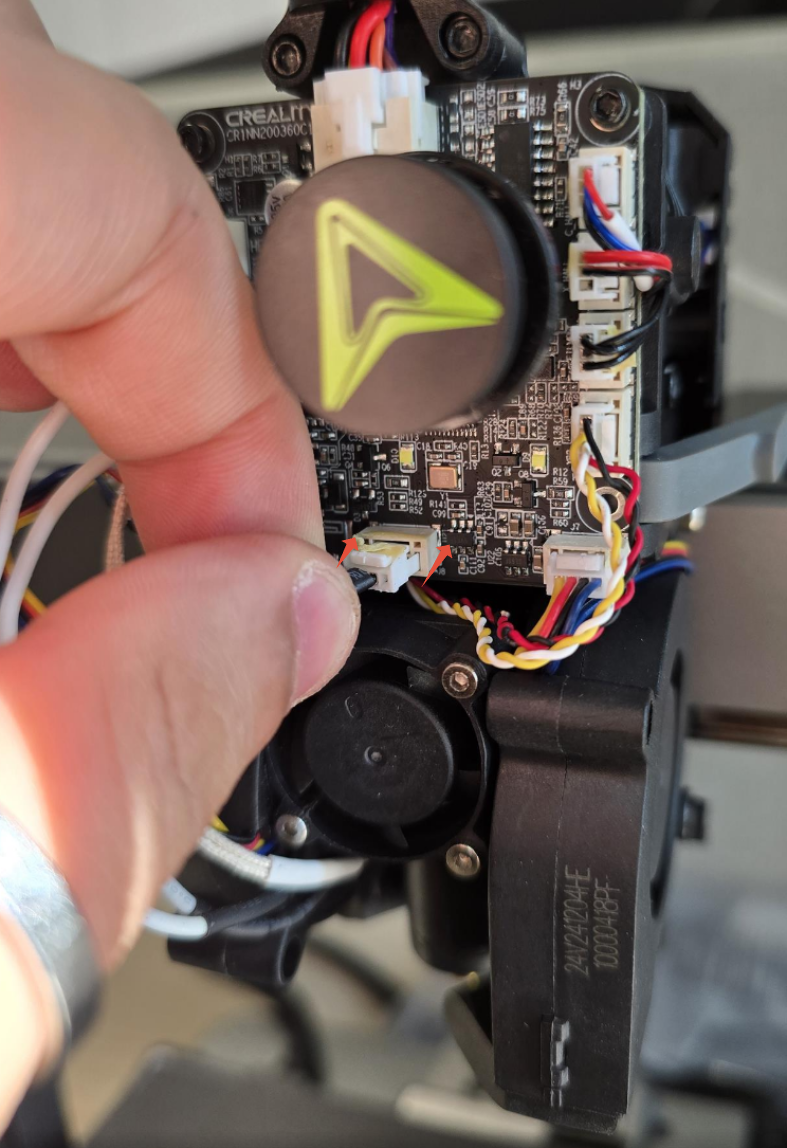

Press down on the latch, then gently wiggle and pull the connector to disconnect it.
Note: If there’s excess adhesive on the connector, you may need to carefully cut or wiggle it to loosen the connection.
____________________________________________________________________________________

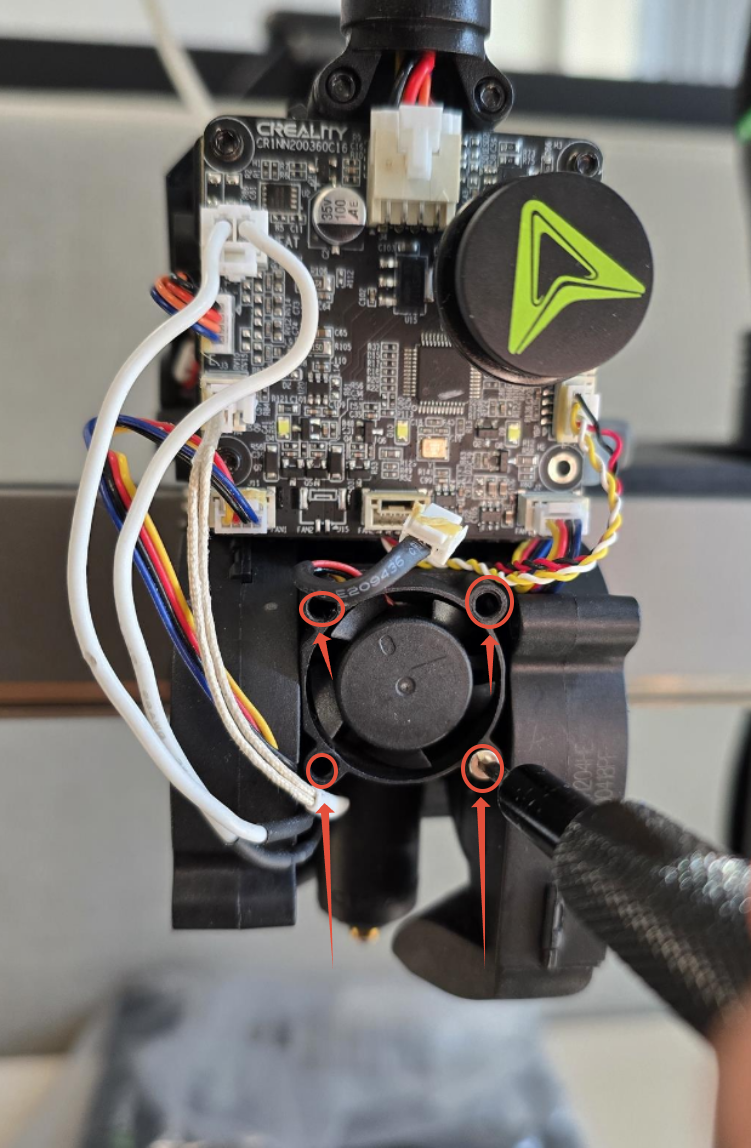

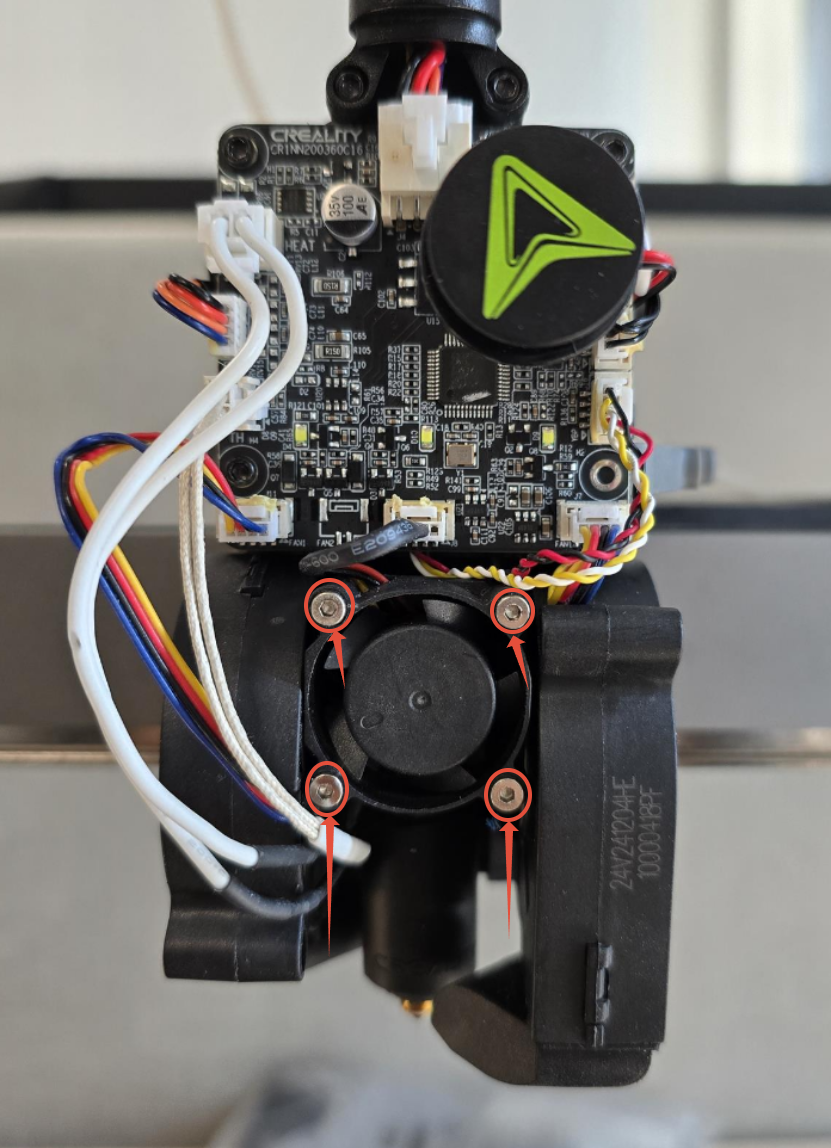

Step 4. Unscrew the 4 hotend fan screw securing it to the head sink.
Use your 1.5 mm Hex driver to remove the screws securing the hotend.
____________________________________________________________________________________
Step 5. Replace the Hotend Fan and Secure it to the Heat Sink.
Use your 1.5 mm Hex driver to secure the screws to the heat sink.
____________________________________________________________________________________
Step 6. Plug the Hotend Fan cable into the Extruder Board.
Ensure the connector is fully seated and that the latch is not compressed.
____________________________________________________________________________________
Step 7. Install the Front Tool Head Cover and screw it in place
Position the front tool head cover back into place and secure it with the screws.
____________________________________________________________________________________
Step 8. Turn on the machine and run Self Test / Calibration.
Power on the machine and run the self-test / calibration procedure. If no errors appear, the replacement was successful!
Your Hotend Fan replacement is complete!
