Creality Hi Filament Sensor PCB Replacement


Introduction


This guide will walk you through the process of disassembling the print head and Extruder replacing the Filament Sensor PCB.


Important Notes

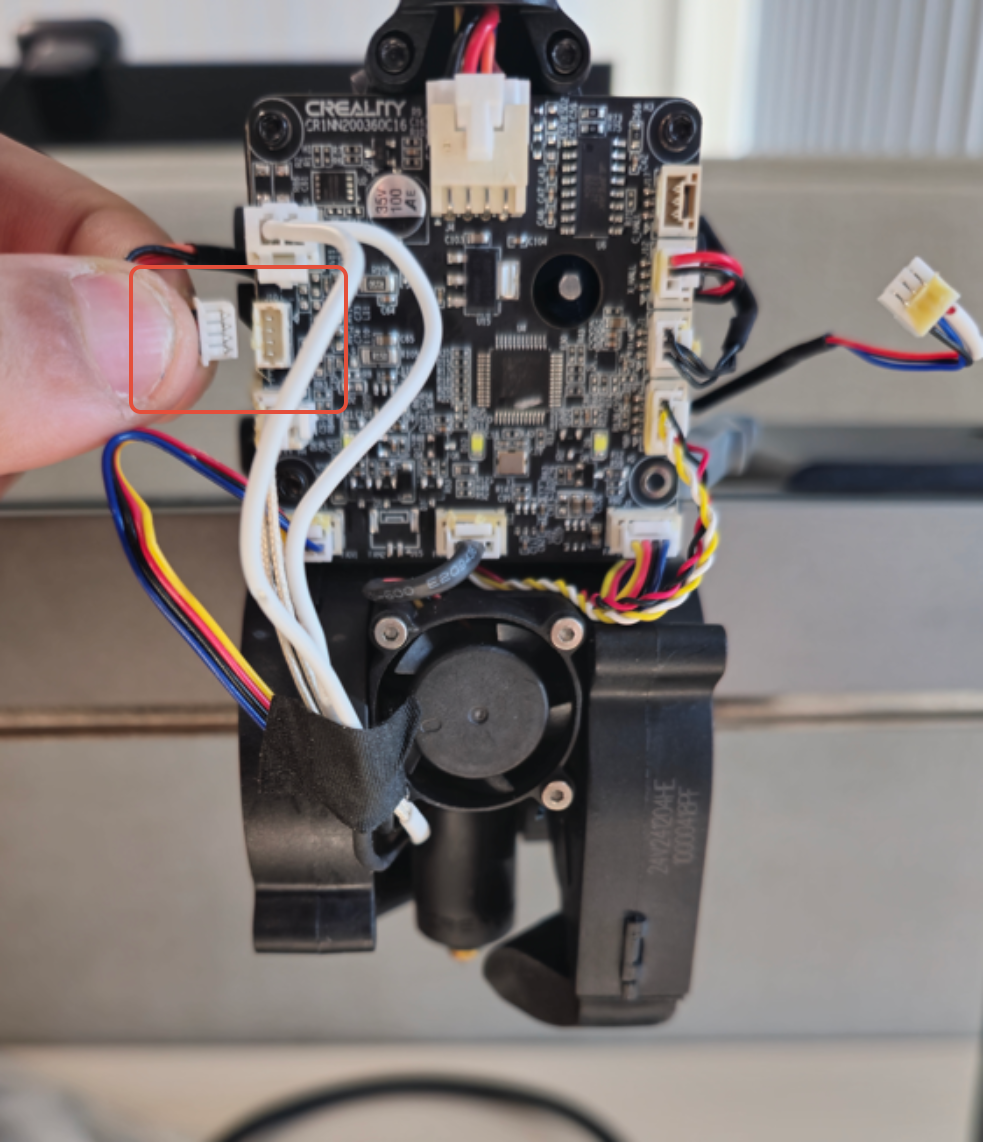

  1. Strong Yellow Glue: The connectors on the Extruder Board is secured with a strong yellow glue. You may need to carefully cut or gently wiggle the connectors to release them. Avoid forcing the connector, as this could damage both the Extruder Board and the cable.


Tools needed


1.5mm Hex Driver or Hex Key



2mm Hex Driver or Hex Key

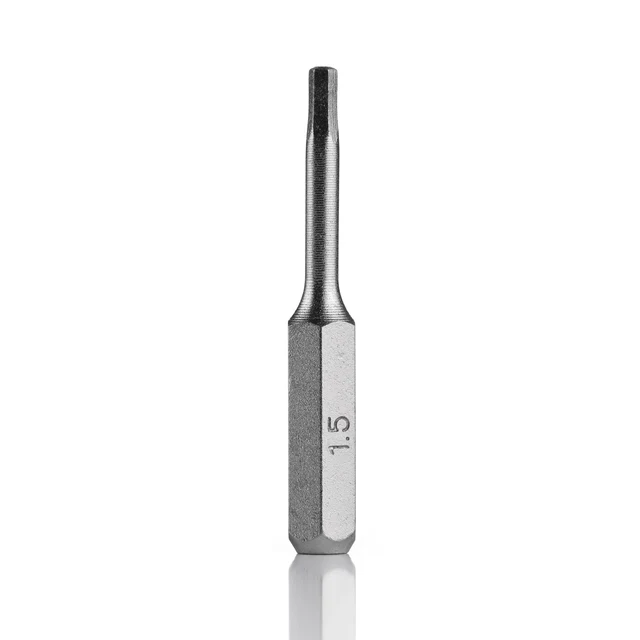

2.5mm Hex Driver or Hex Key


Precision Tweezers (for easier connector removal)

____________________________________________________________________________________

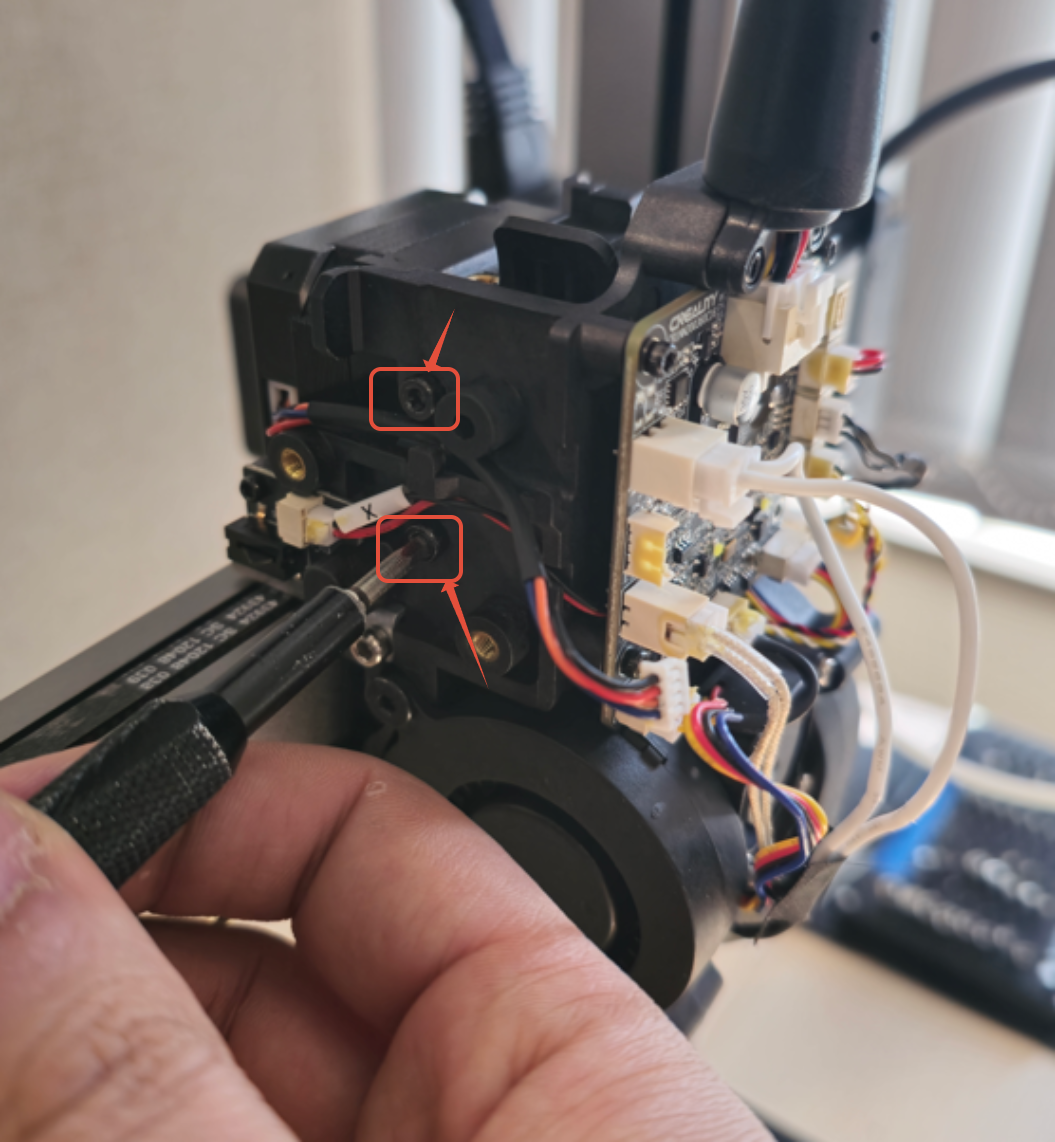

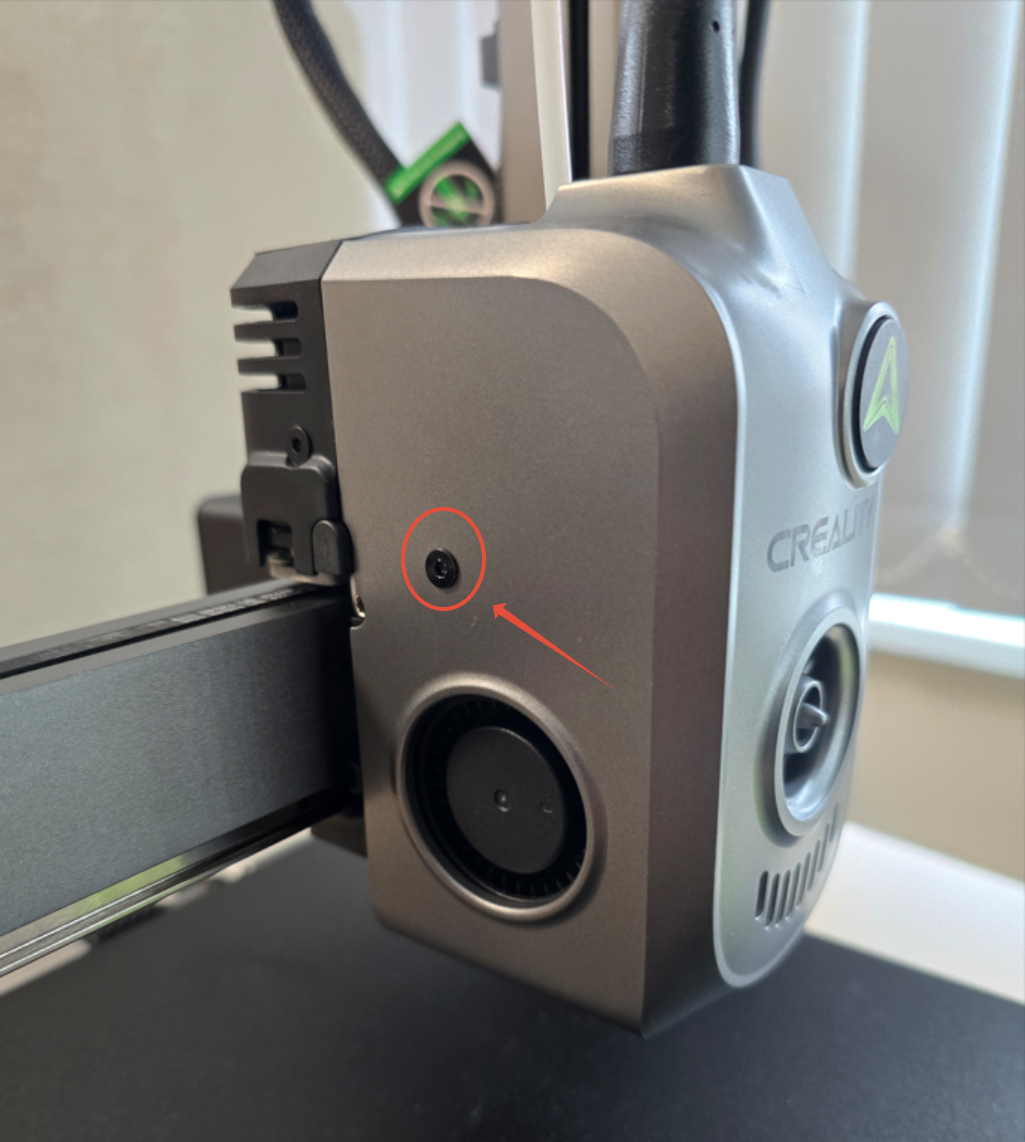

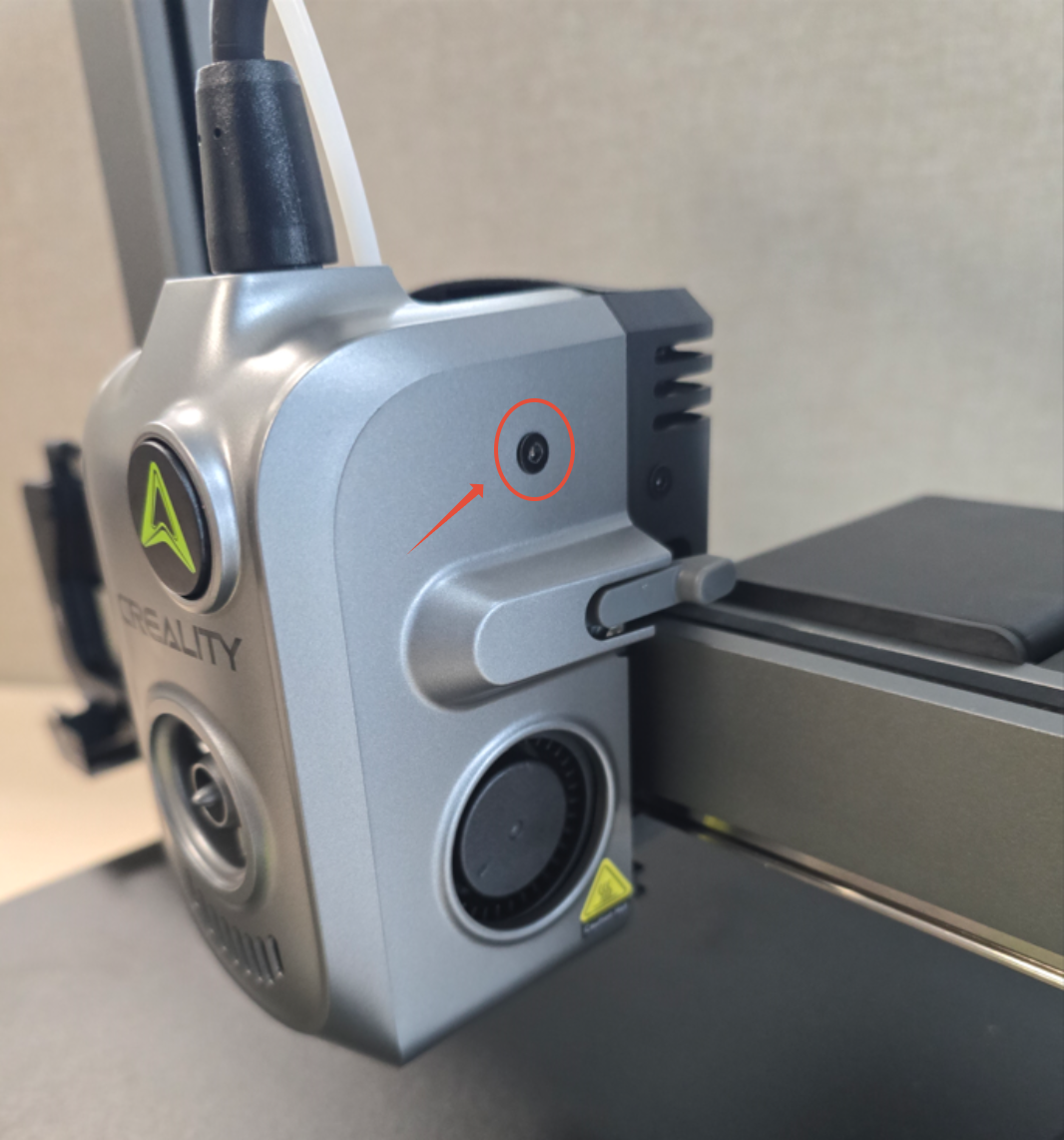

Step 1. Unscrew the 2 Screws holding the Front Tool Head Cover


Use your 2mm Hex driver to remove the screws securing the front cover.


____________________________________________________________________________________

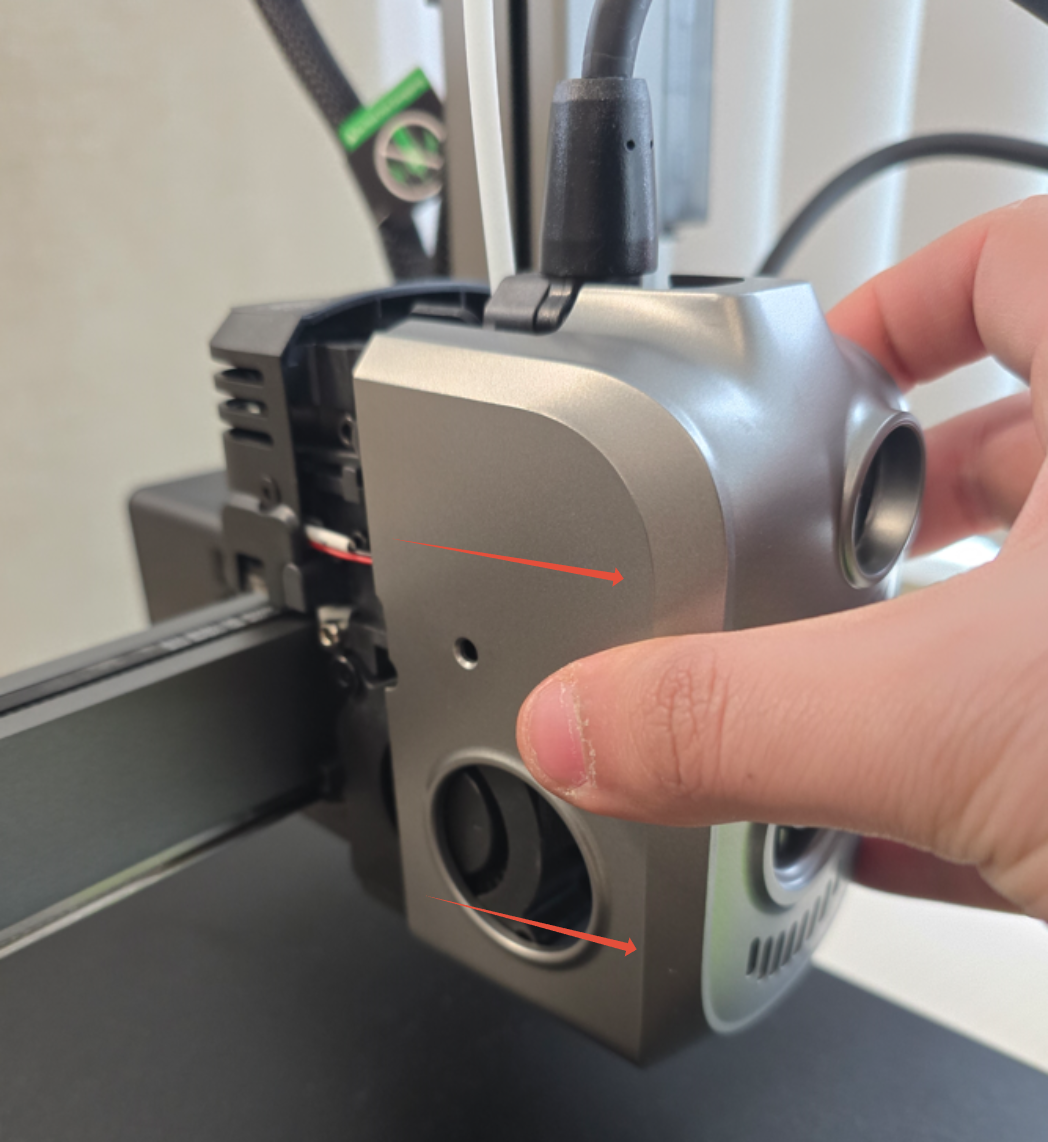

Step 2. Remove the Front Tool Head Cover


Pull the tool head cover towards you to slide it off easily.


Reference Photo:



____________________________________________________________________________________

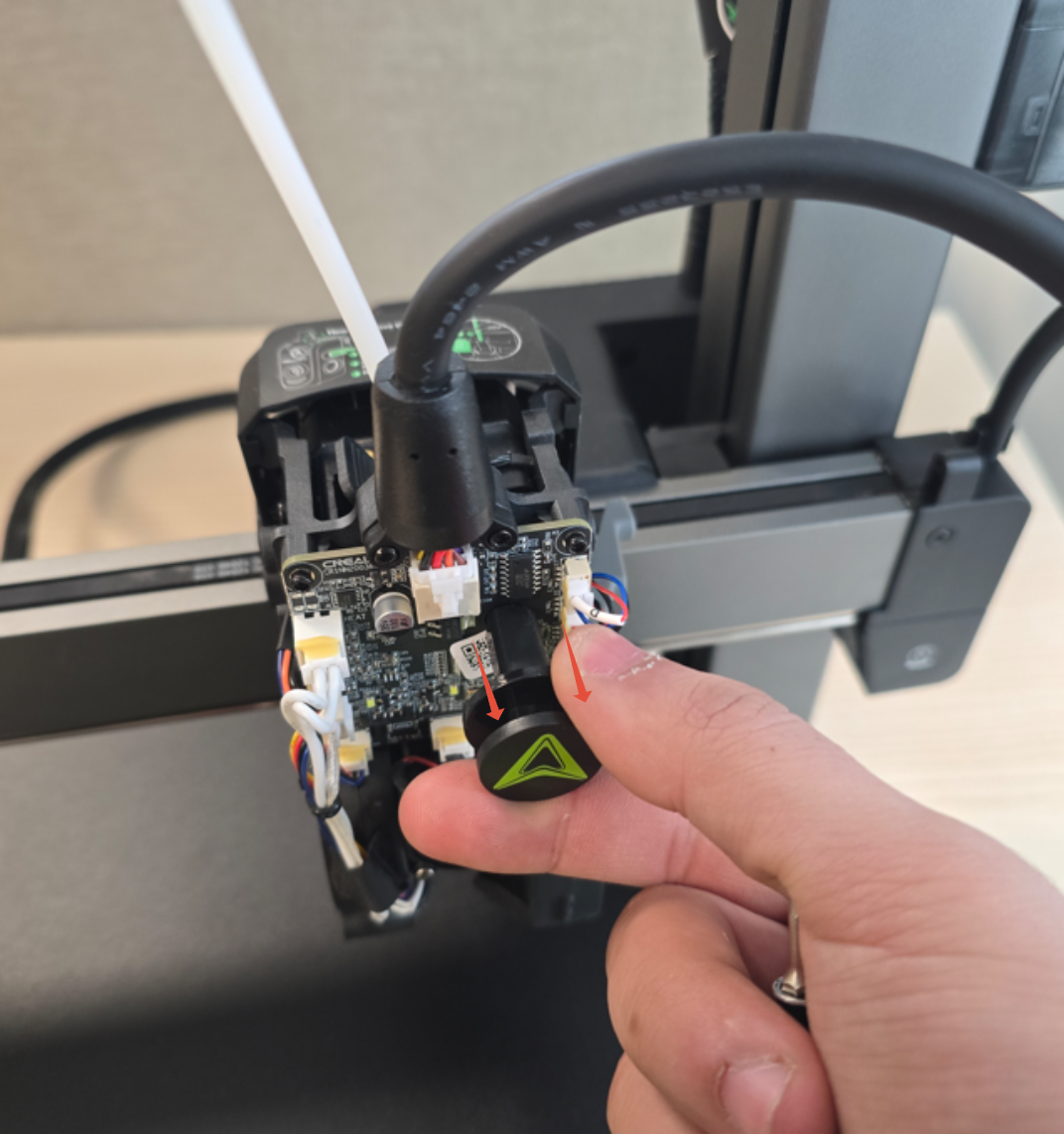

Step 3. Remove the Extruder Indicator Wheel


Pull the indicator wheel towards you to remove it.



____________________________________________________________________________________

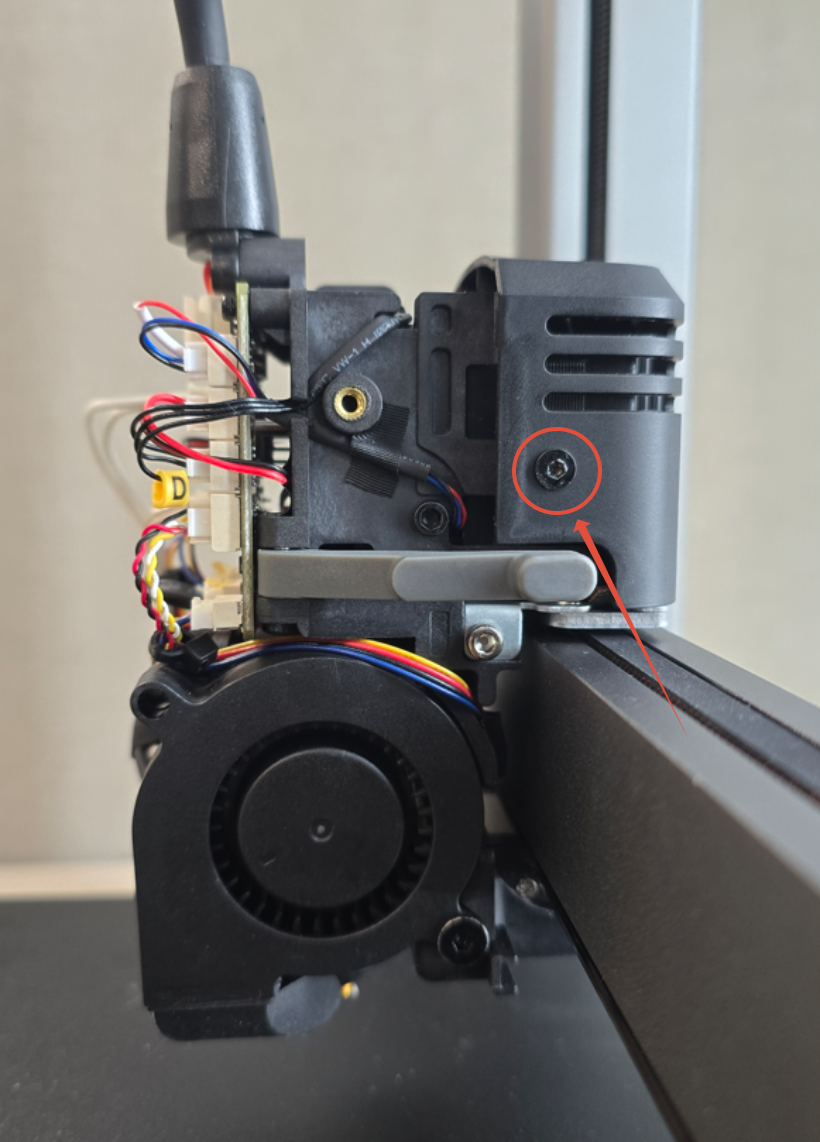

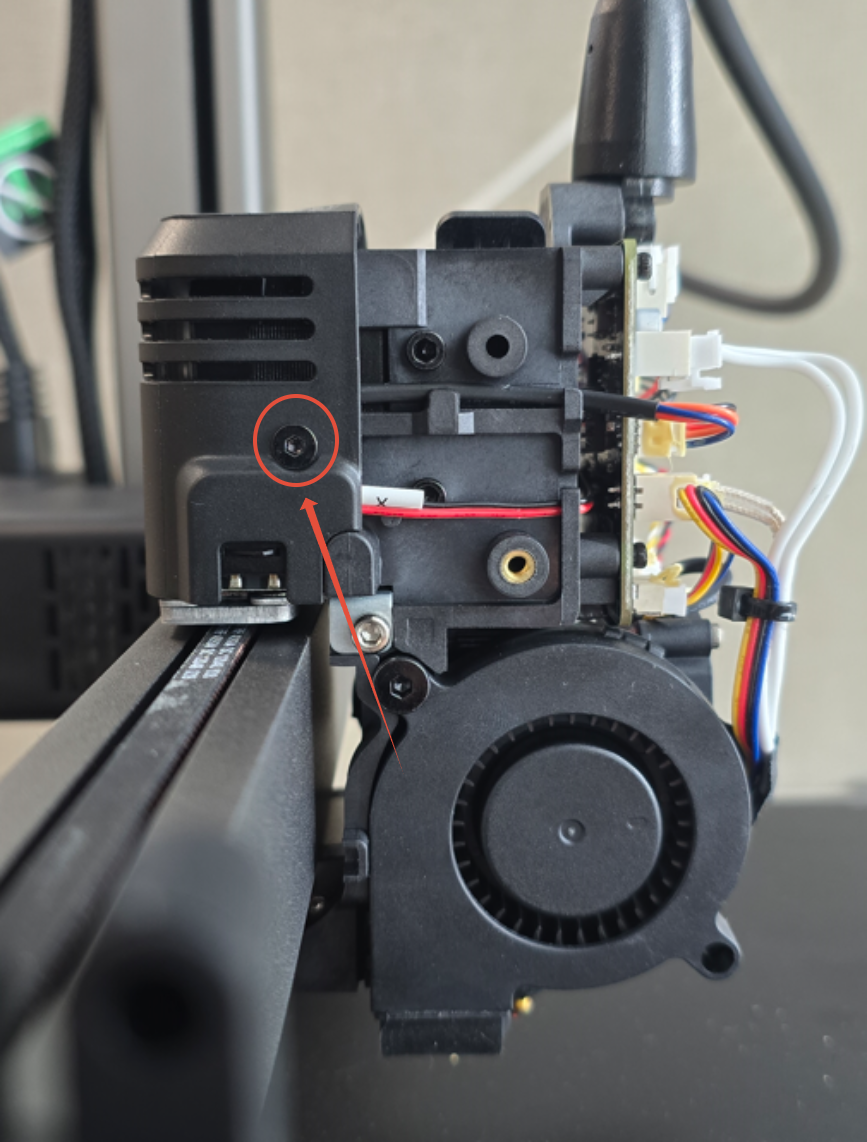

Step 4. Unscrew the 2 screws holding the Extruder Motor Cover and remove the extruder motor cover


Use your 2mm Hex driver to remove the screws securing the extruder motor cover.



____________________________________________________________________________________

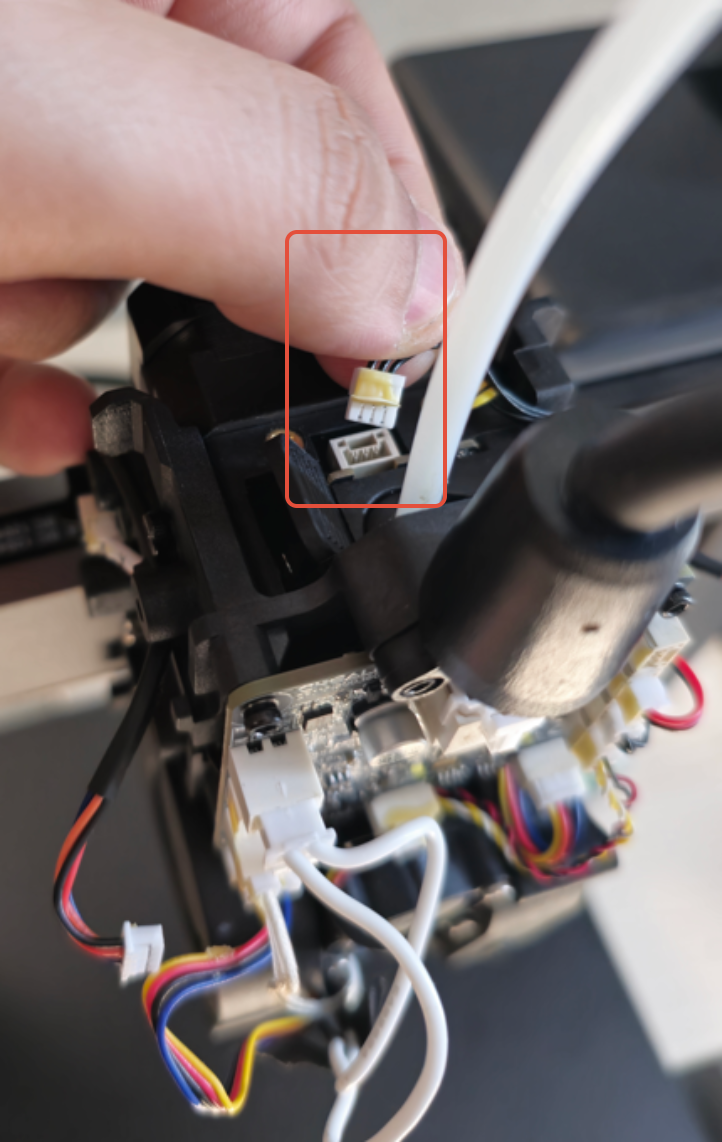

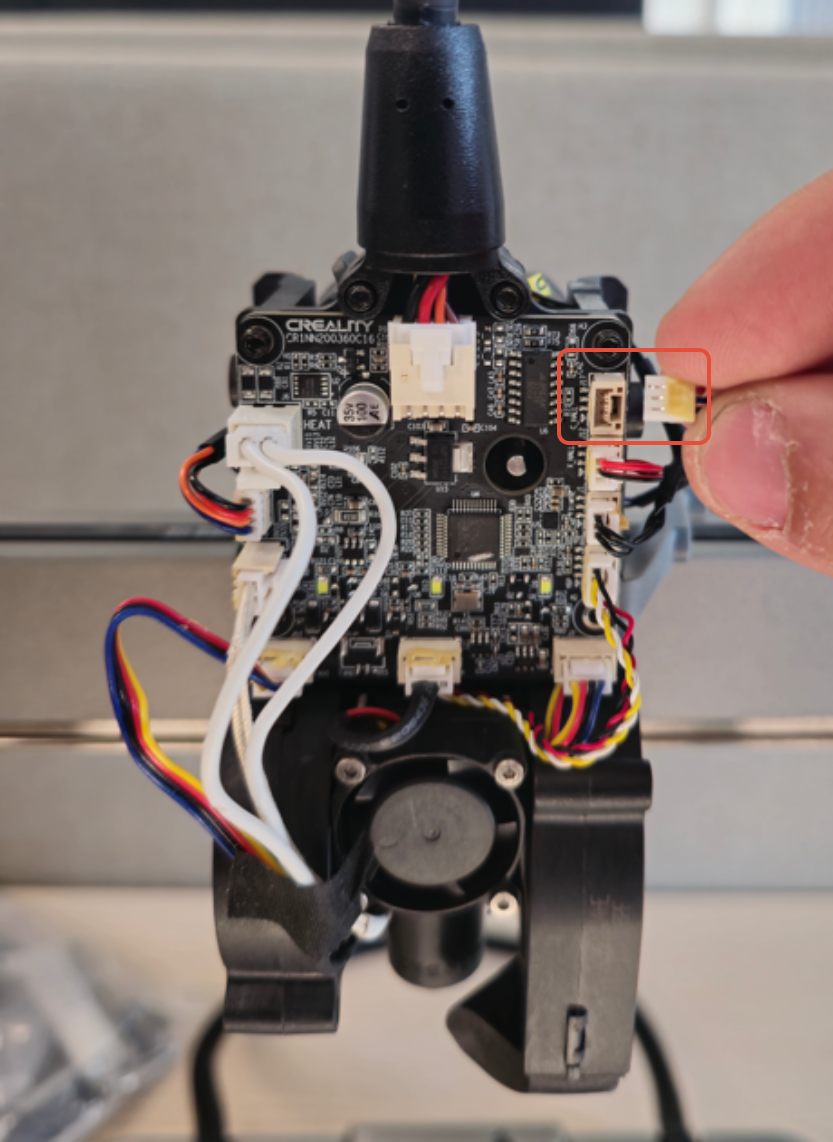

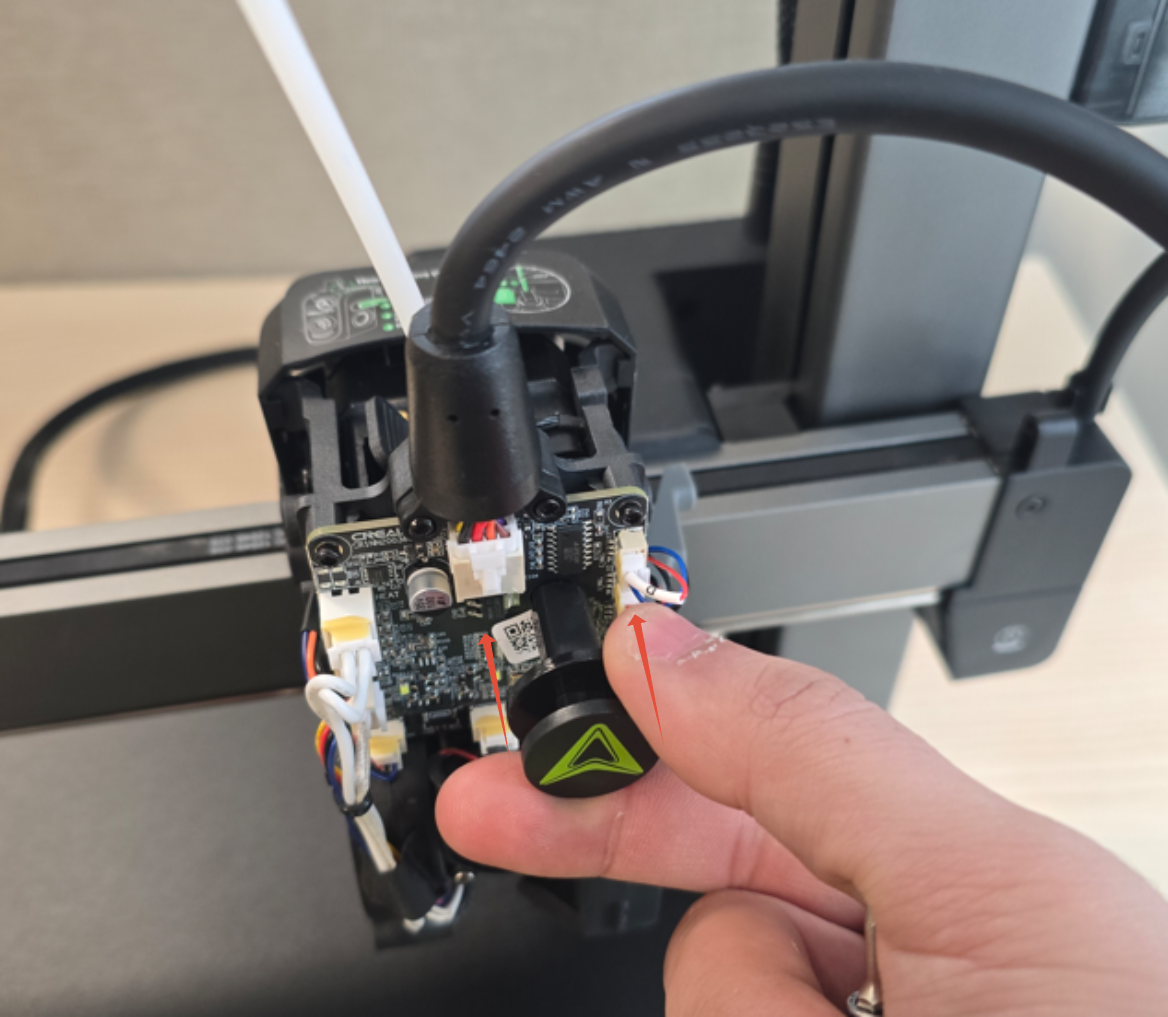

Step 5. Disconnect the Filament Cutter Cable and Extruder Motor Cable from the Extruder Board


Carefully disconnect both the filament cutter cable and the extruder motor cable from the extruder board.



____________________________________________________________________________________


Step 6. Unplug the Filament Sensor Cable from the Filament Sensor


Disconnect the filament sensor cable from the sensor.



____________________________________________________________________________________

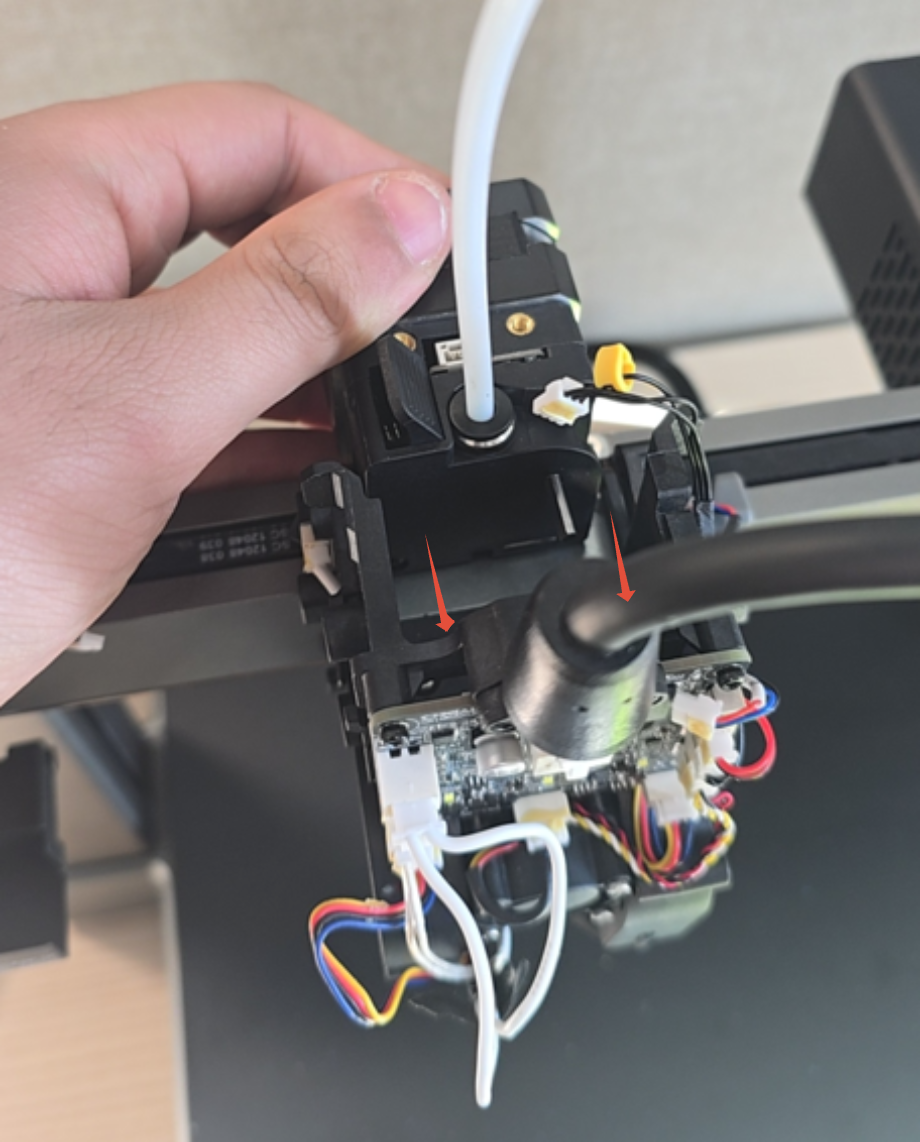

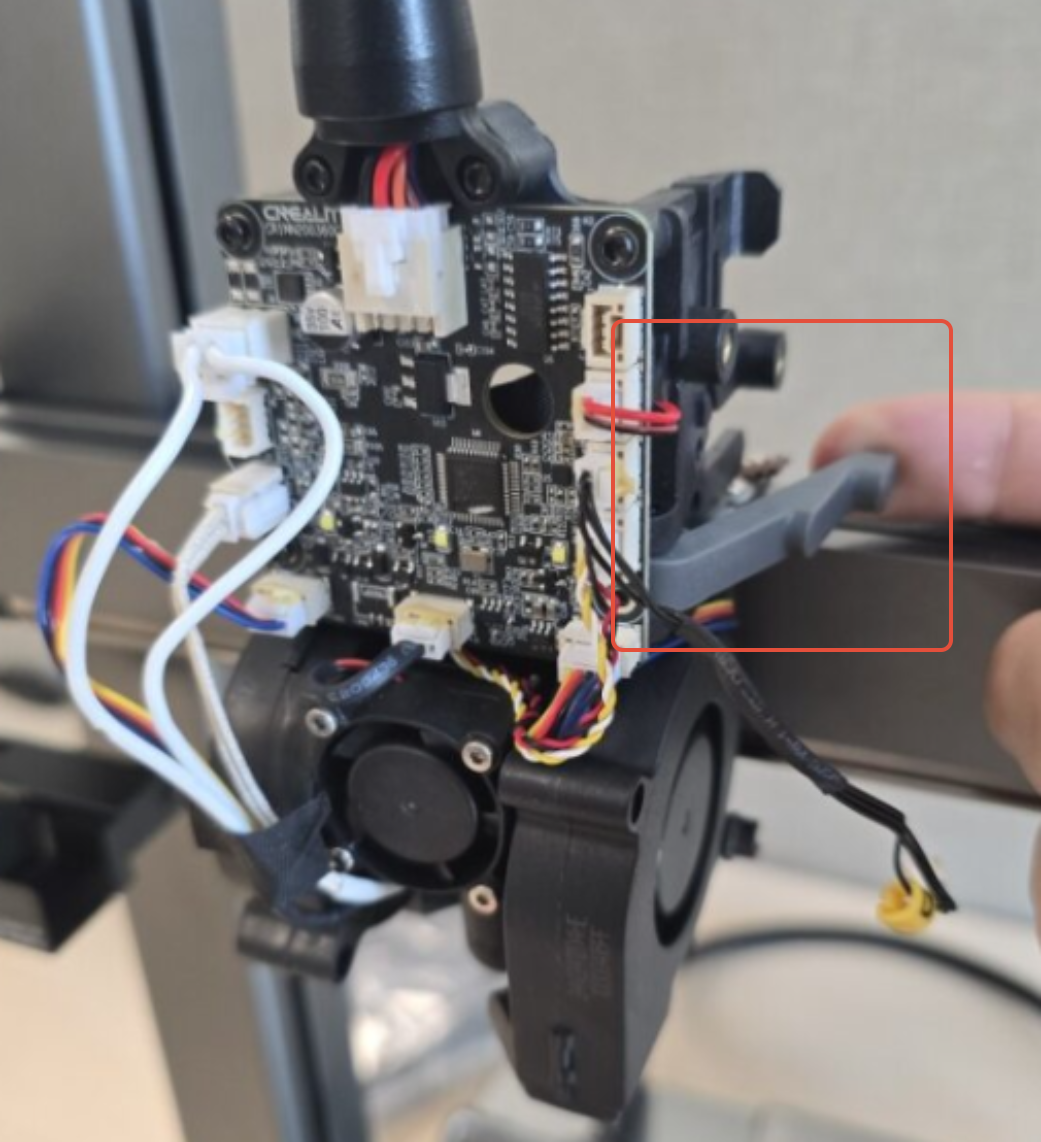

Step 7. Unscrew the mounting screws for the Extruder


Use the 2.5mm Hex driver to remove the screws securing the extruder to its mount.



____________________________________________________________________________________


Step 8.  Slide the Extruder out


Carefully slide the extruder out from its mount.



____________________________________________________________________________________

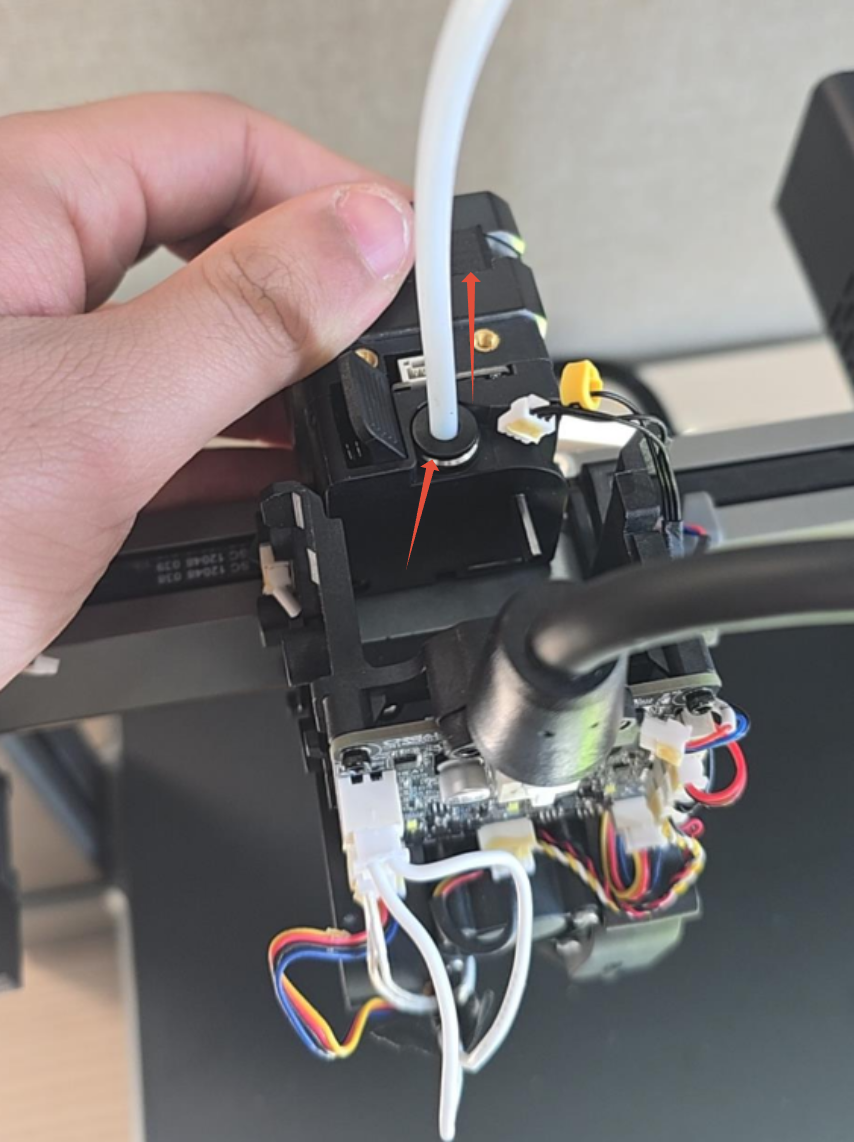

Step 9. Remove the PTFE tube from the Extruder

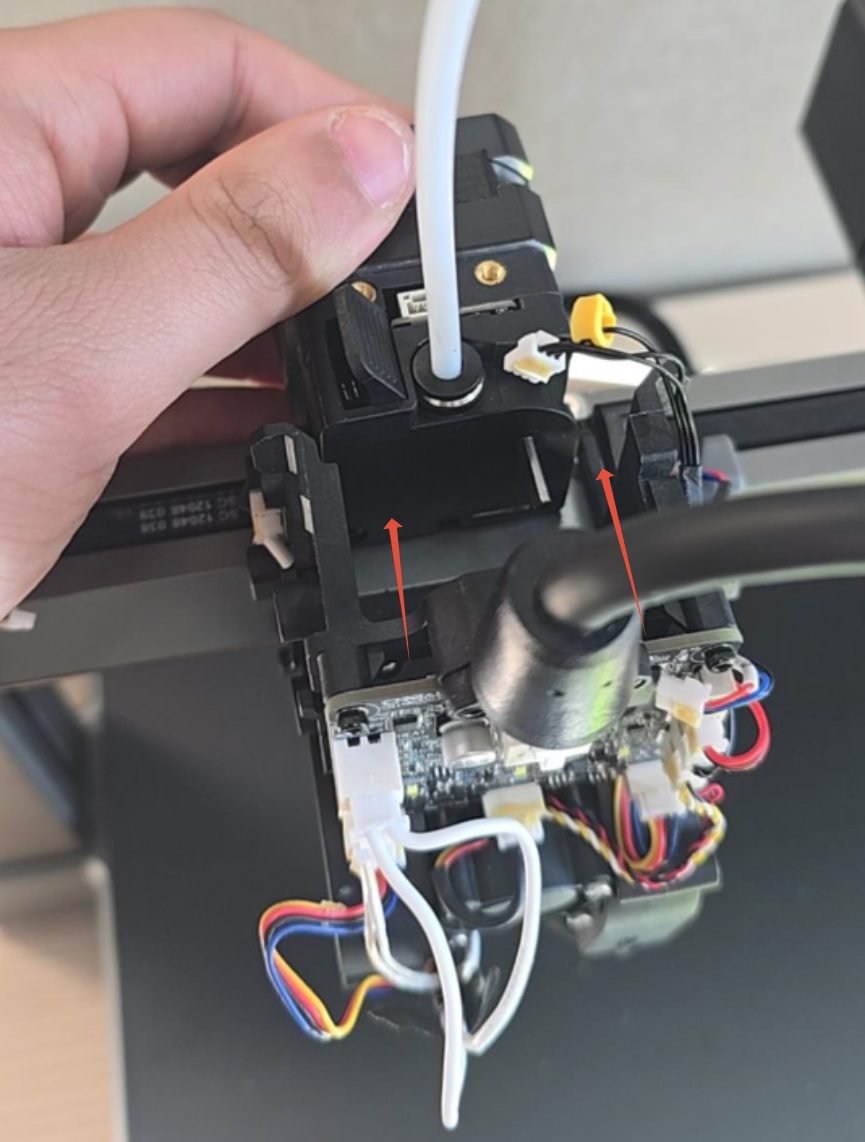

To remove the PTFE tube, first push the coupler down (marked with an arrow in the photo). Once released, pull the PTFE tube upwards to disconnect it.



____________________________________________________________________________________

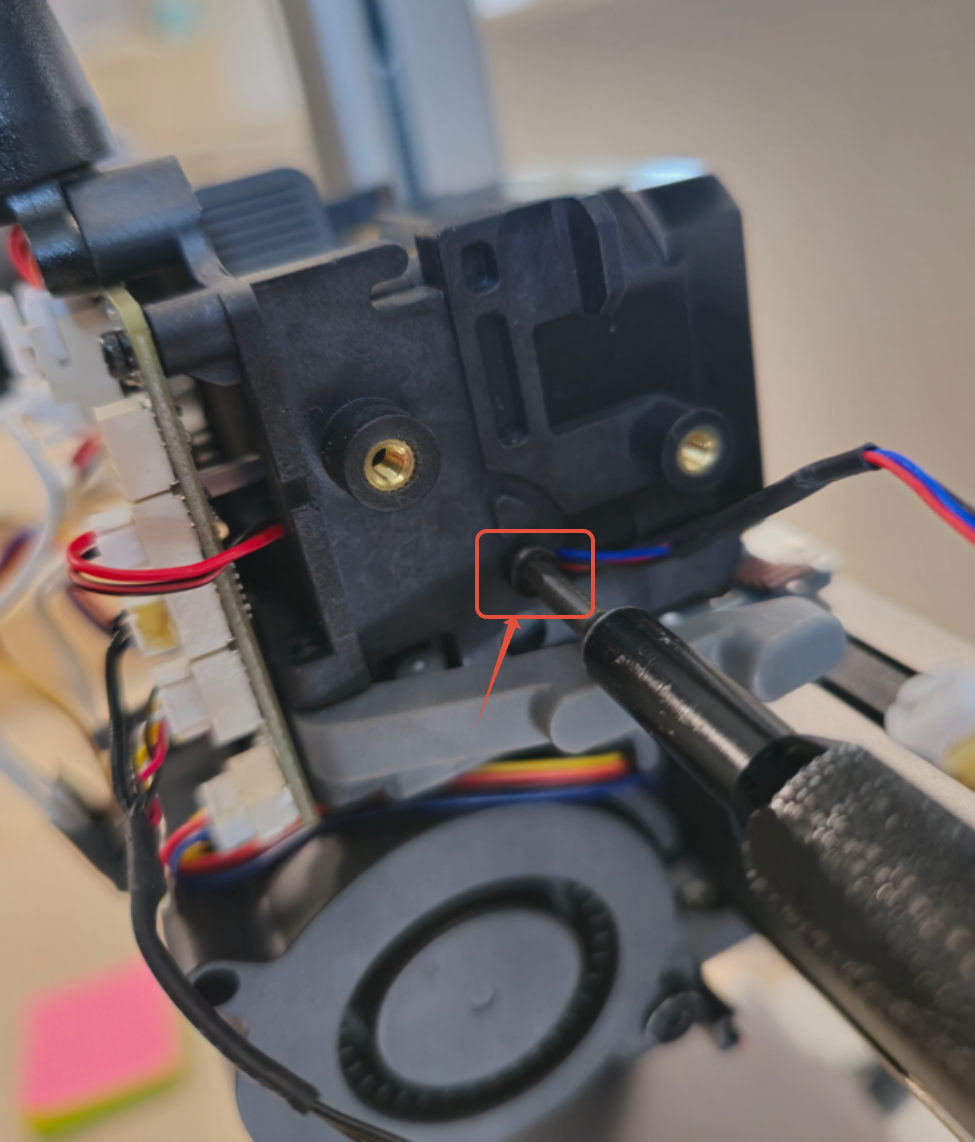

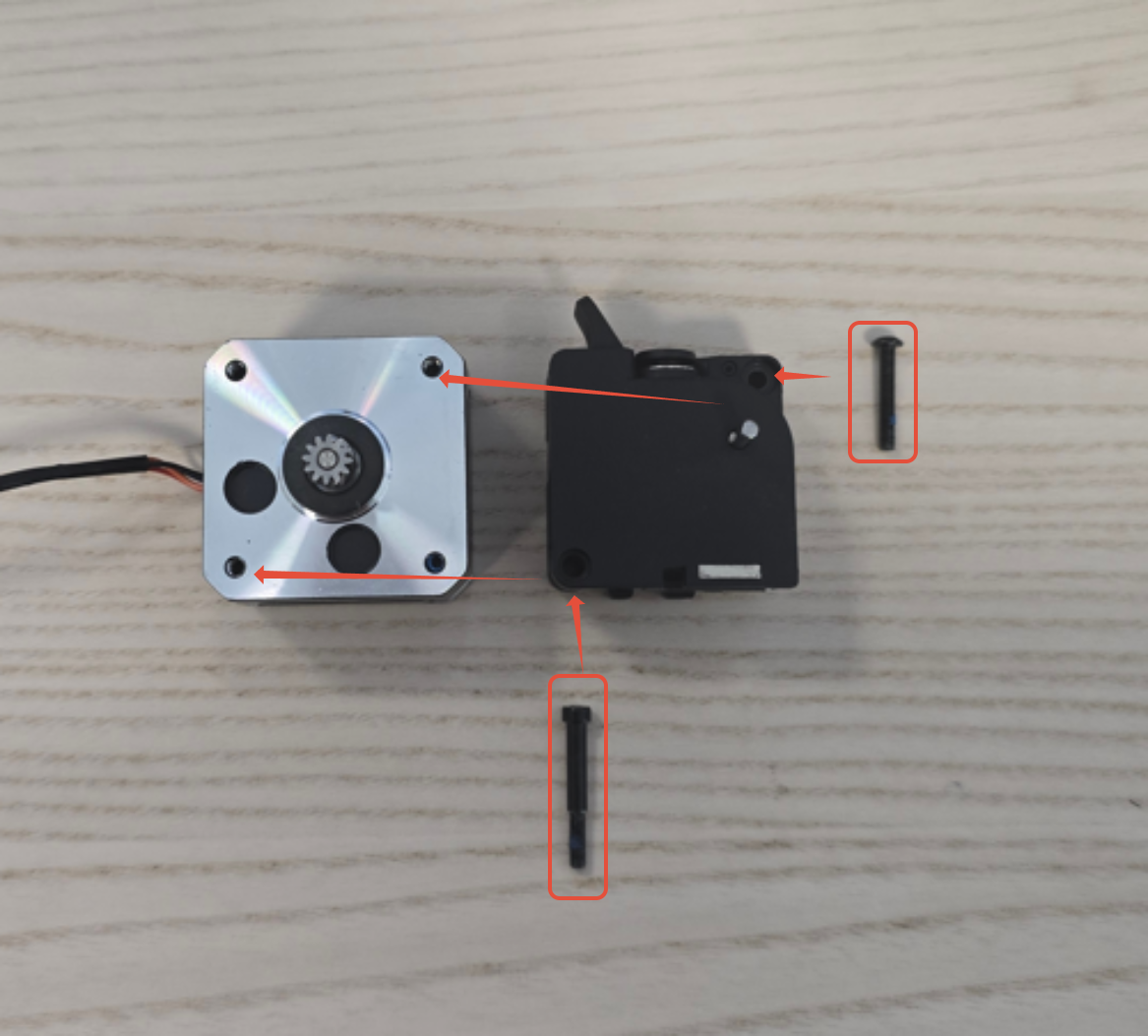

Step 10: Remove the Extruder Motor from the Extruder and disassemble it.

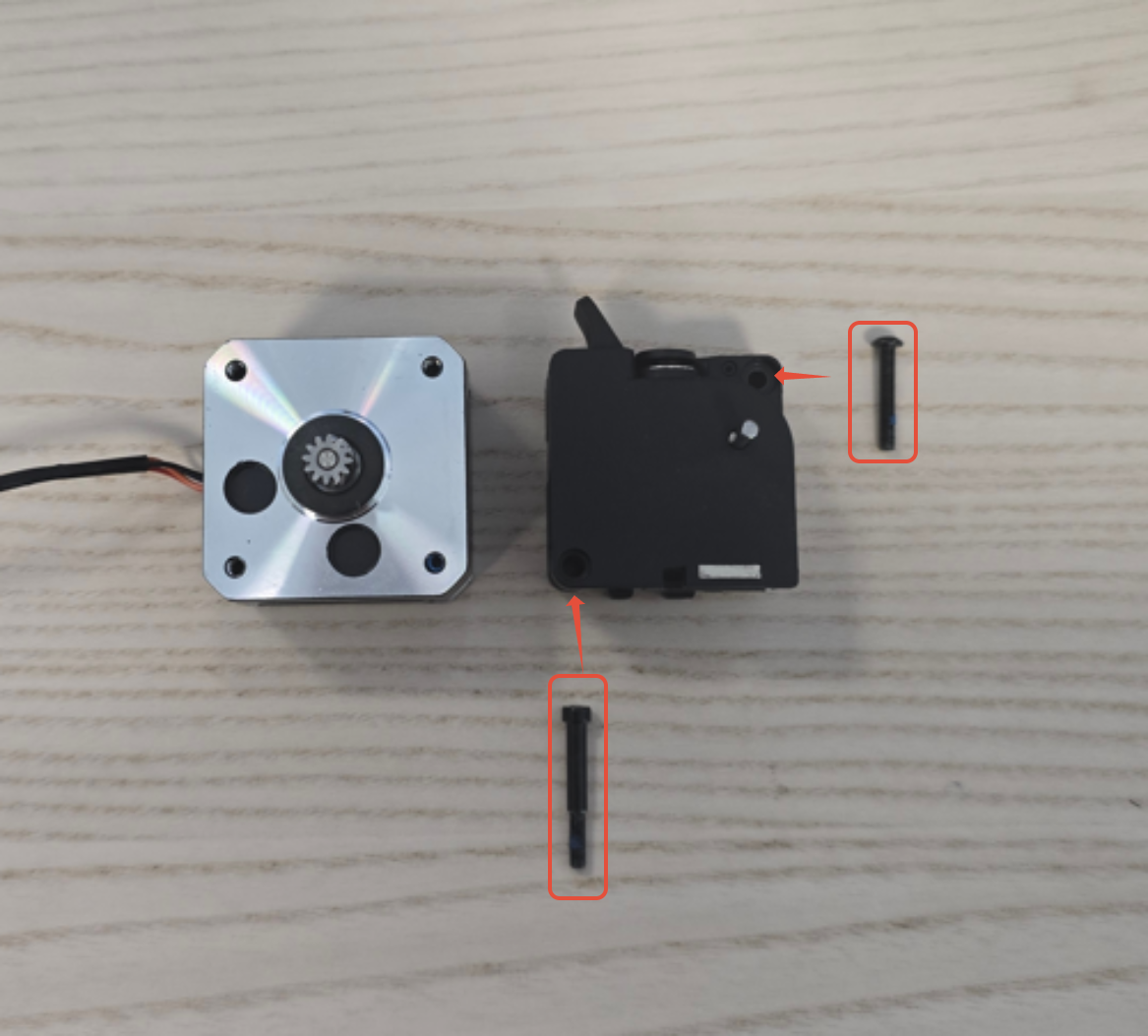

Unscrew the two screws securing the extruder to the motor. Then, remove the screw on the side that holds the extruder assembly together using your 2mm Hex driver.



____________________________________________________________________________________

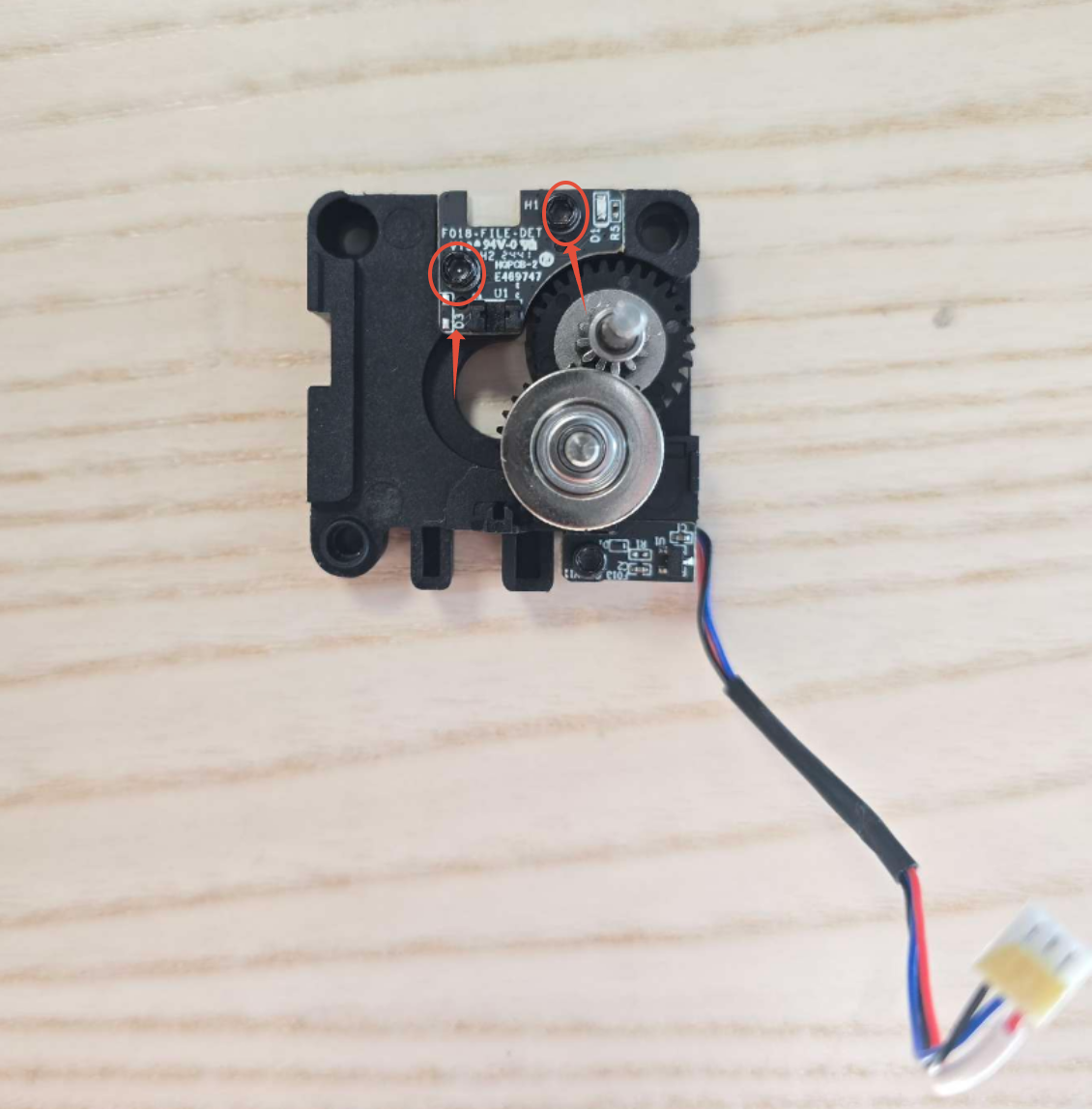

Step 11. Replace the Filament Sensor PCB


Using your 1.5mm Hex Driver, unscrew the two screws securing the Filament Sensor PCB.

Next, install the new PCB and secure it with the screws using the same 1.5mm Hex Driver.

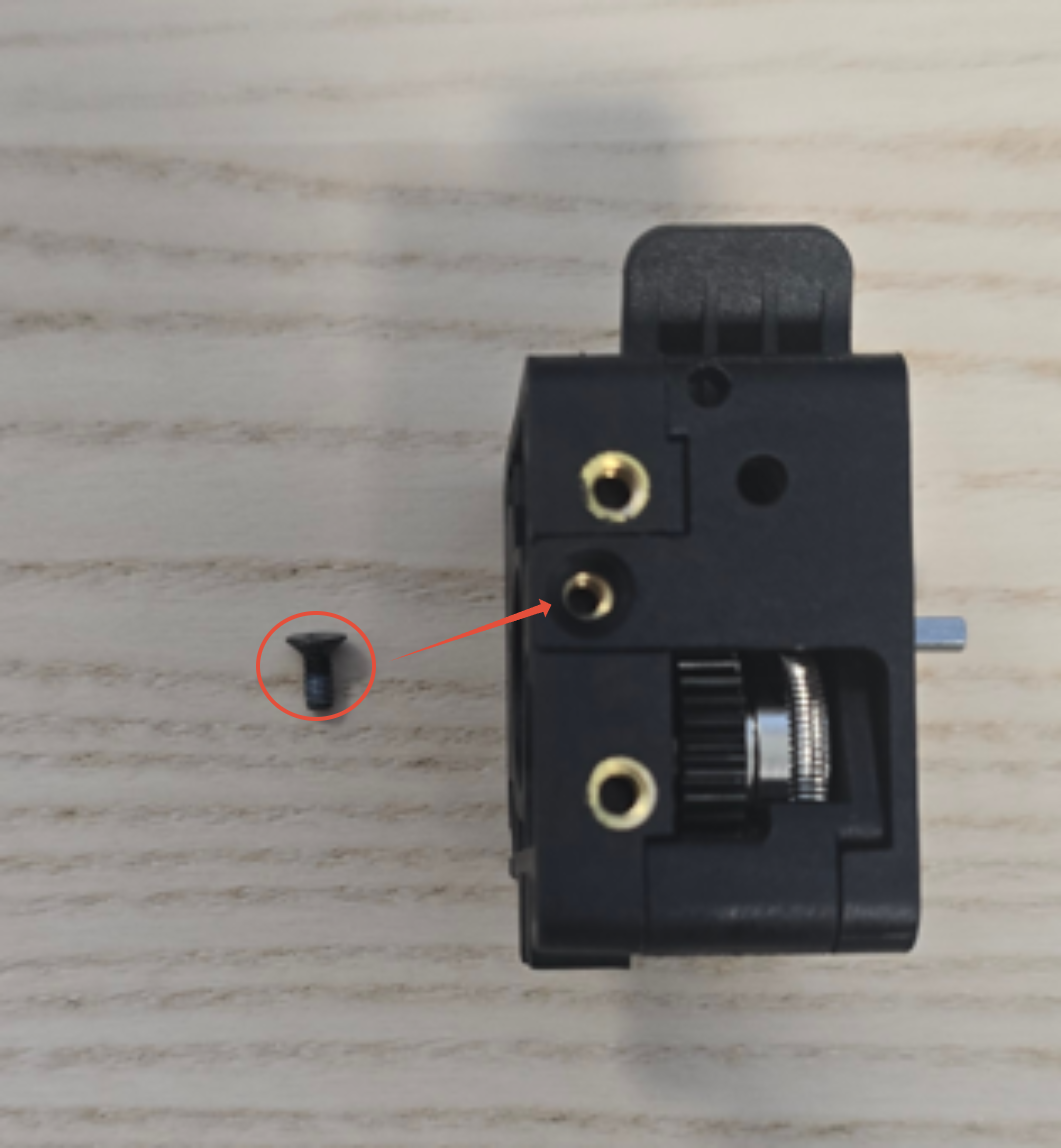

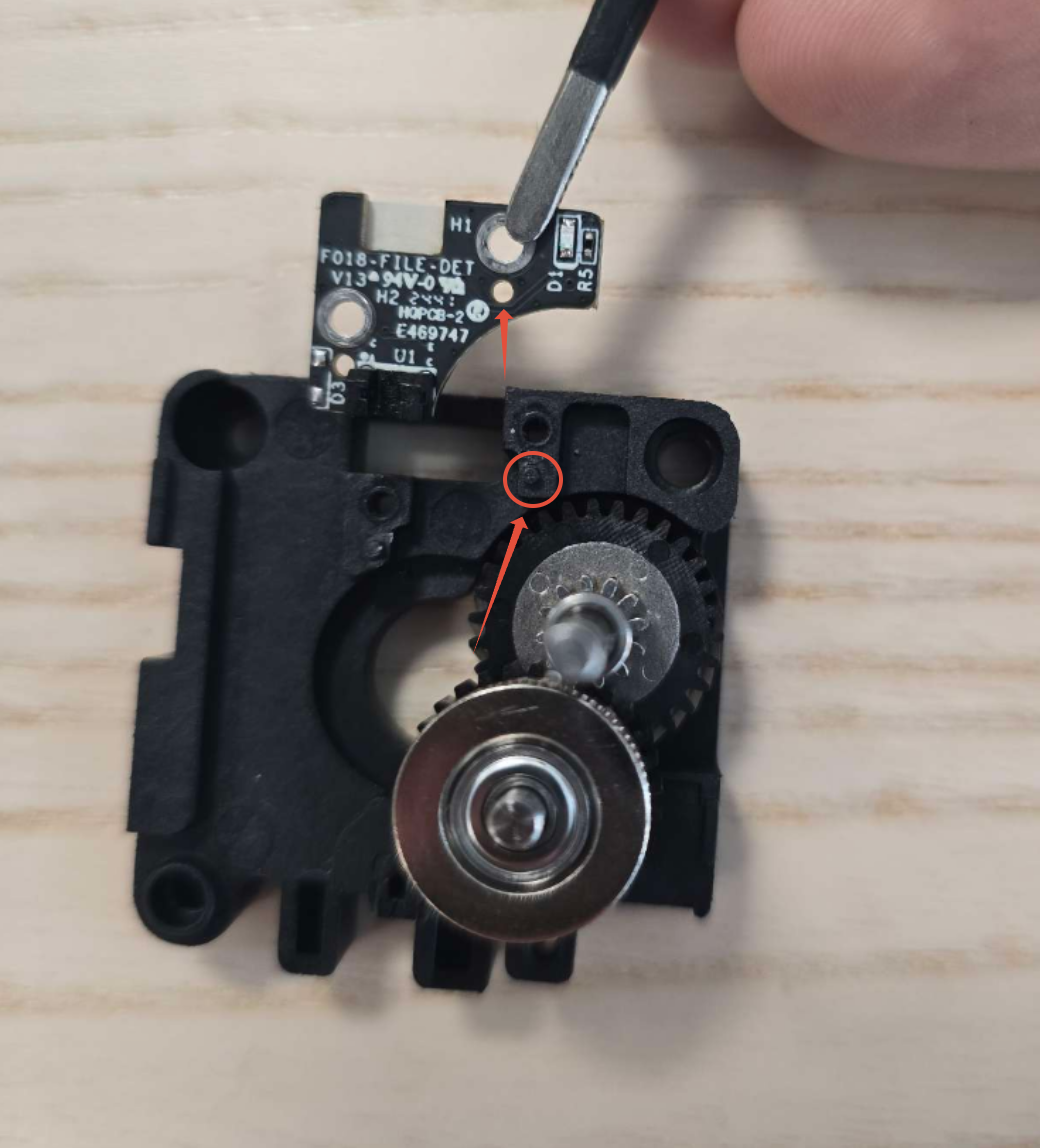

Note: There is a notch on the extruder casing where you can align the Filament Sensor PCB. Refer to the photo below to locate it.



____________________________________________________________________________________


Step 12. Reassemble the Extruder and mount it to the Extruder


Reassemble the extruder components and securely mount it to the motor using your 2mm Hex Driver.



____________________________________________________________________________________

Step 13. Insert the PTFE Tube and fasten the Extruder


Push the PTFE tube down into the coupler.

Slide the extruder back into place and secure it with the screws using the 2.5mm Hex driver. Ensure the filament cutter arm is in its open state.



____________________________________________________________________________________


Step 14. Plug in the the Filament Sensor Cable, Extruder Motor Cable and Filament Cutter Cable


Plug the filament sensor cable, extruder motor cable, and filament cutter cable back into their respective connectors.



____________________________________________________________________________________

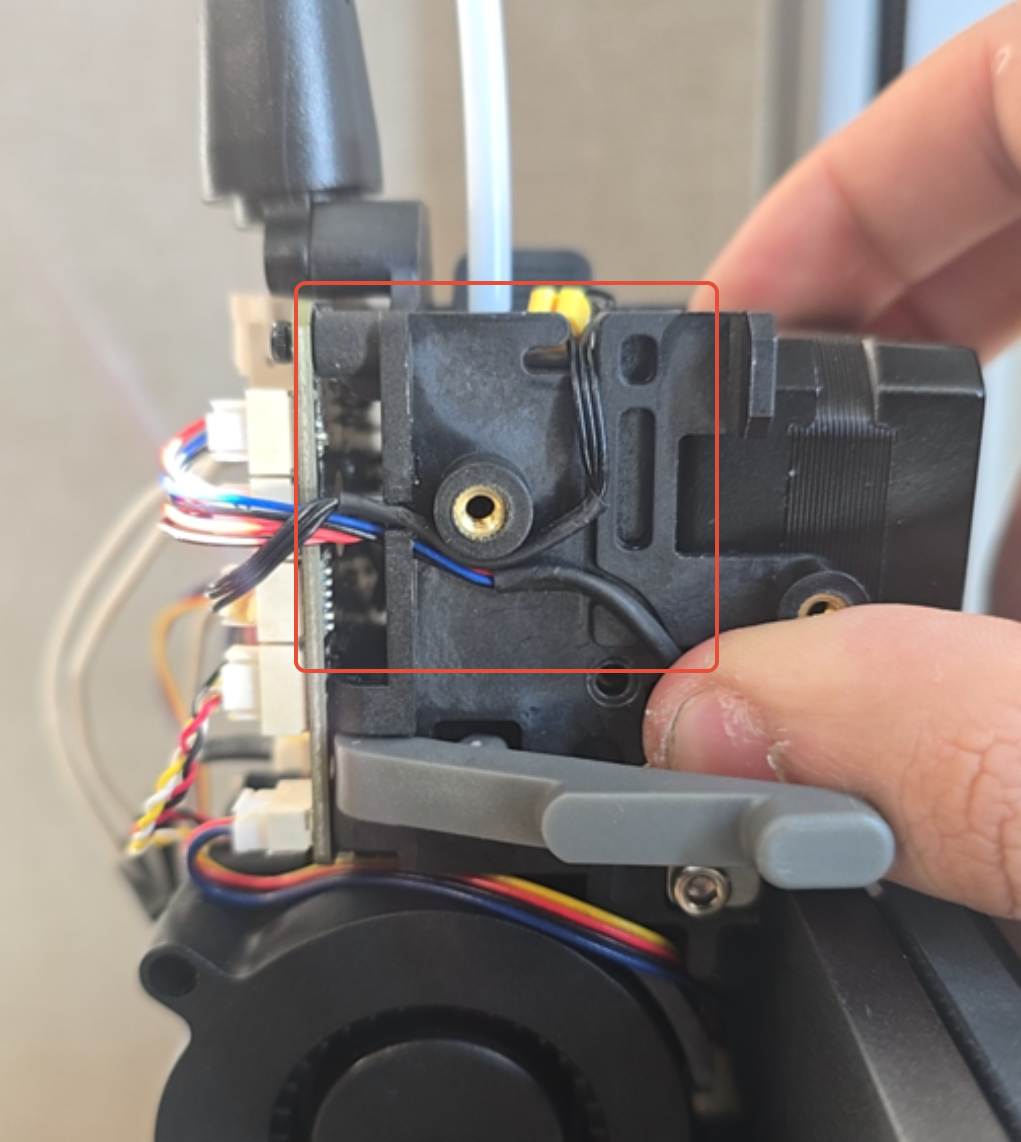

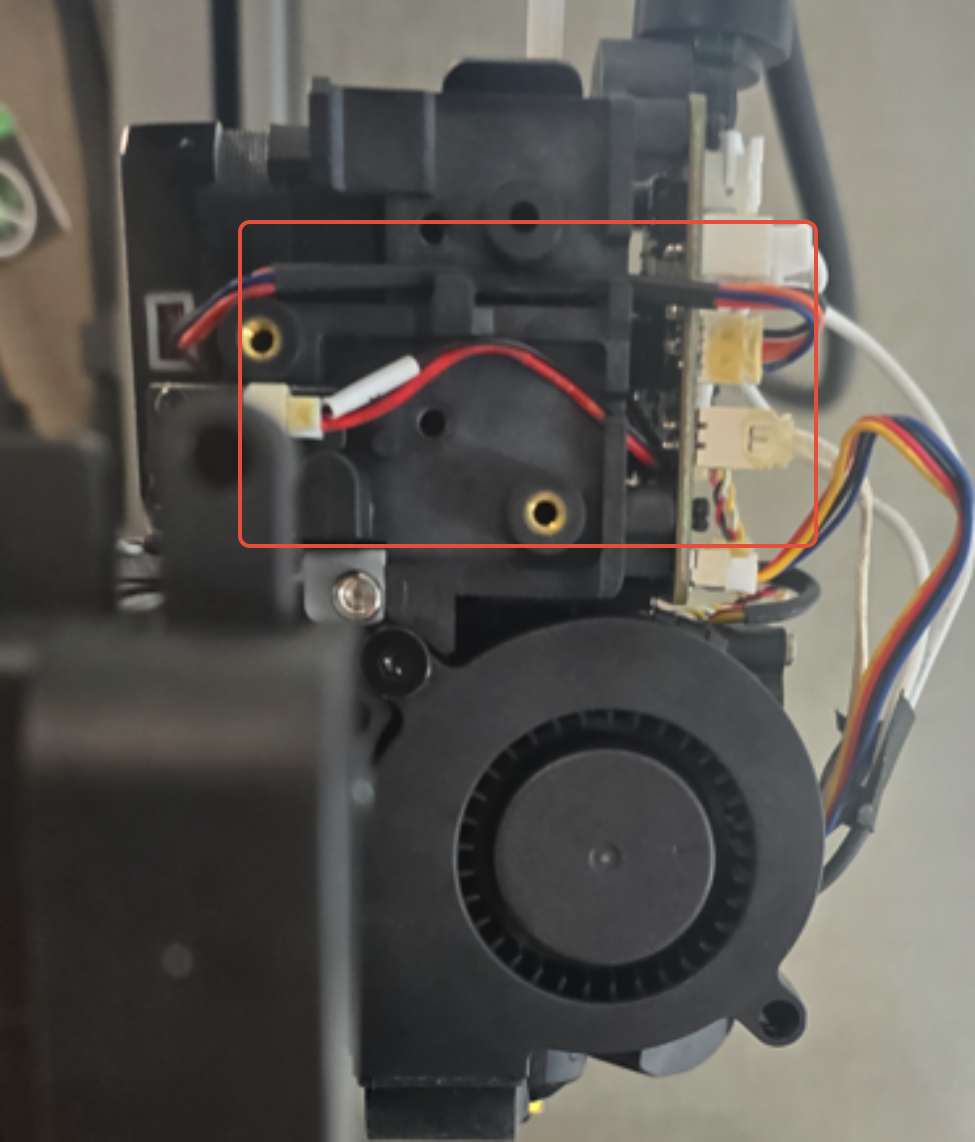

Step 15. Ensure that the cables are organized into their grooves


Ensure that the cables are properly routed into their grooves to avoid interference with other components.



____________________________________________________________________________________


Step 16. Install the Extruder Motor Cover


Use your 2mm Hex driver to secure the screws holding the extruder motor cover.



____________________________________________________________________________________



Step 17. Install the Extruder Indicator Wheel


Ensure the extruder indicator wheel is fully seated. If it's not properly aligned, the front tool head cover may not fit correctly.


____________________________________________________________________________________


Step 18. Install the Front Tool Head Cover and screw it in place


Position the front tool head cover back into place and secure it with the screws.



____________________________________________________________________________________


Step 19. Turn on the machine and run Self Test / Calibration.


Power on the machine and run the self-test / calibration procedure. If no errors appear, the replacement was successful!



Your Filament Sensor PCB replacement is complete!
