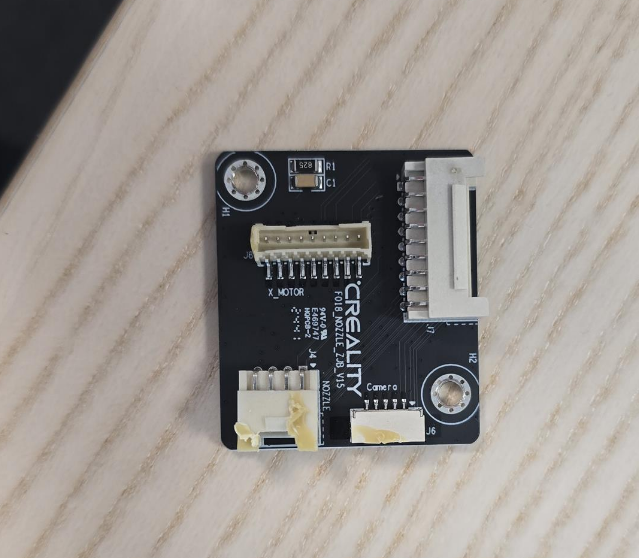

Creality Hi X-Axis Adapter Board Replacement

____________________________________________________________________________________


Introduction


This guide will walk you through the process of replacing the X-Axis Adapter Board, which is located on the backside of the Gantry / X-Axis.


Important Notes

  1. Strong Yellow Glue: The connectors on the X-Axis Adapter Board is secured with a strong yellow glue. You may need to carefully cut or gently wiggle the connectors to release them. Avoid forcing the connector, as this could damage both the X-Axis Adapter Board and the cable.


Tools needed

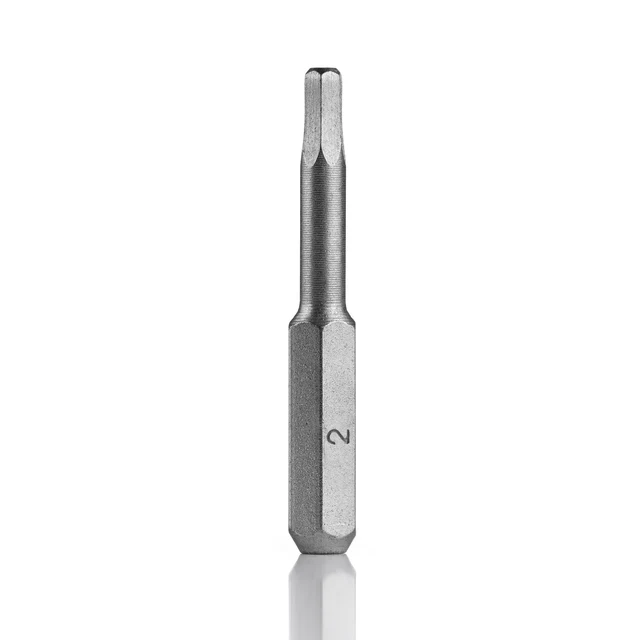

2mm Hex Driver or Hex Key


____________________________________________________________________________________

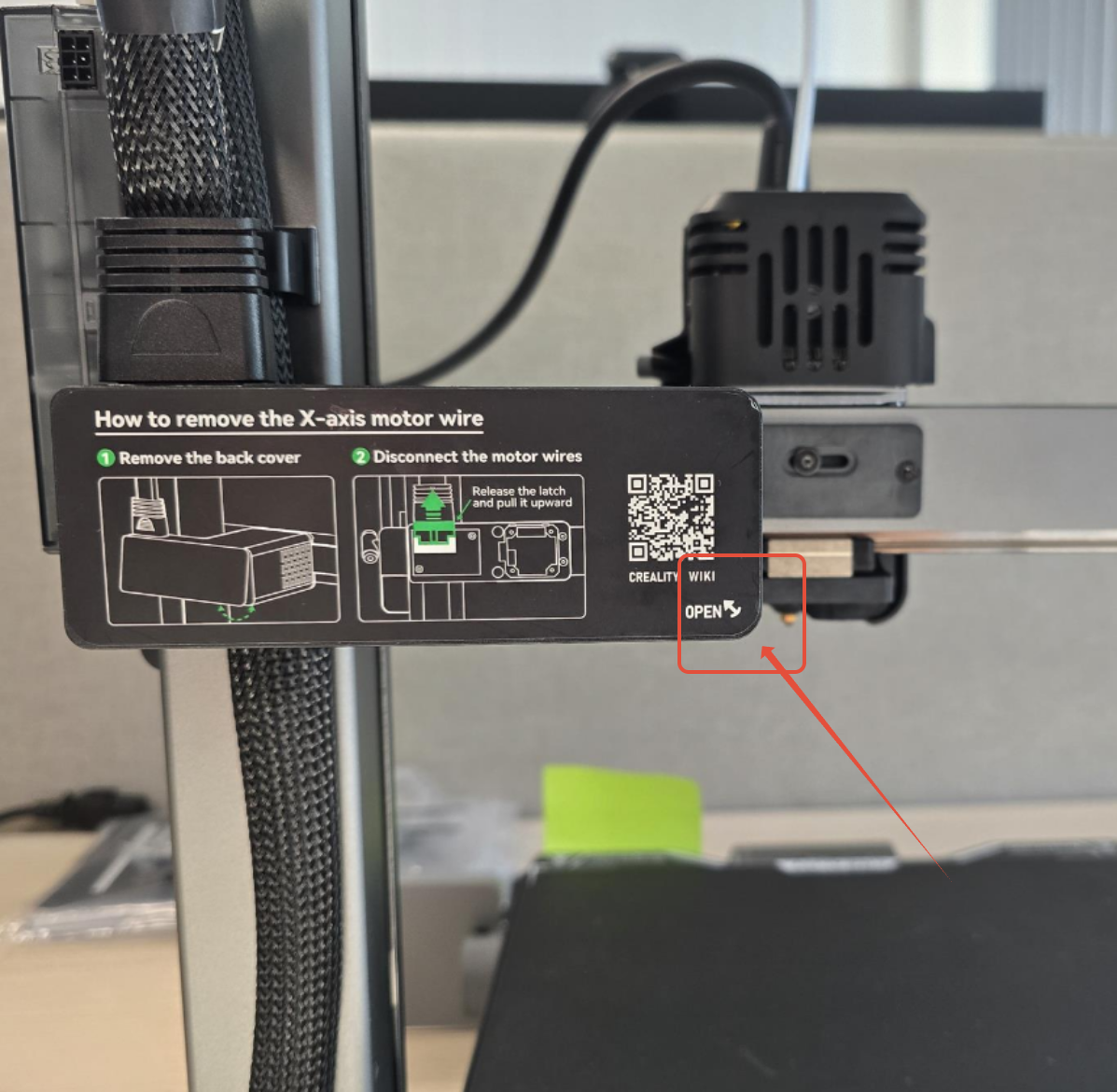

Step 1. Remove the X-Axis electronic compartment cover.


There is a small indent in the bottom-right corner where you can insert a nail or small flat-head screwdriver to open the cover.


____________________________________________________________________________________

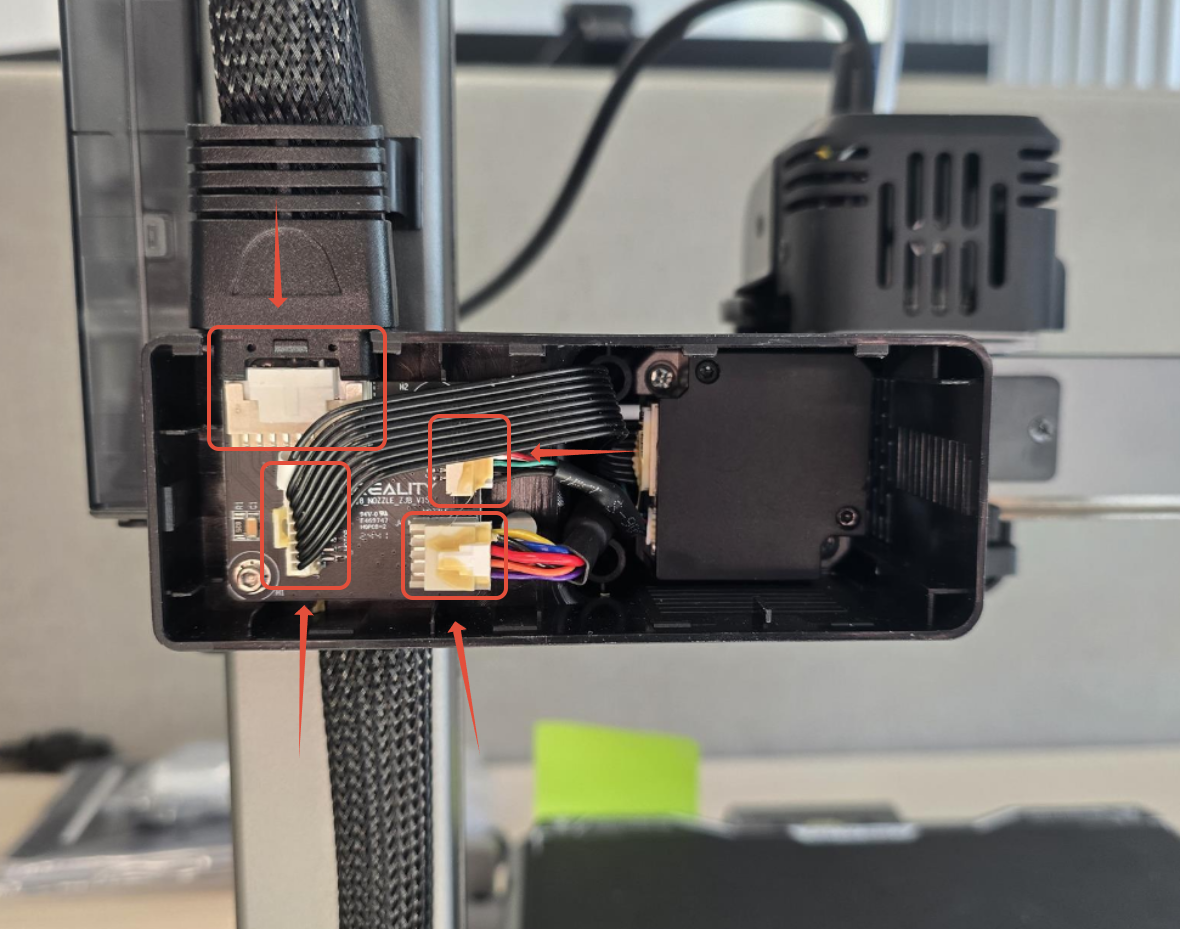

Step 2.  Disconnect the cables on the X-Axis Adapter Board.


All connectors on the X-Axis Adapter Board have a latch-based locking system.
Creality applies glue to secure the latches during transport. Use a small flat-head screwdriver to carefully cut or remove some of the glue to free the latch.


____________________________________________________________________________________

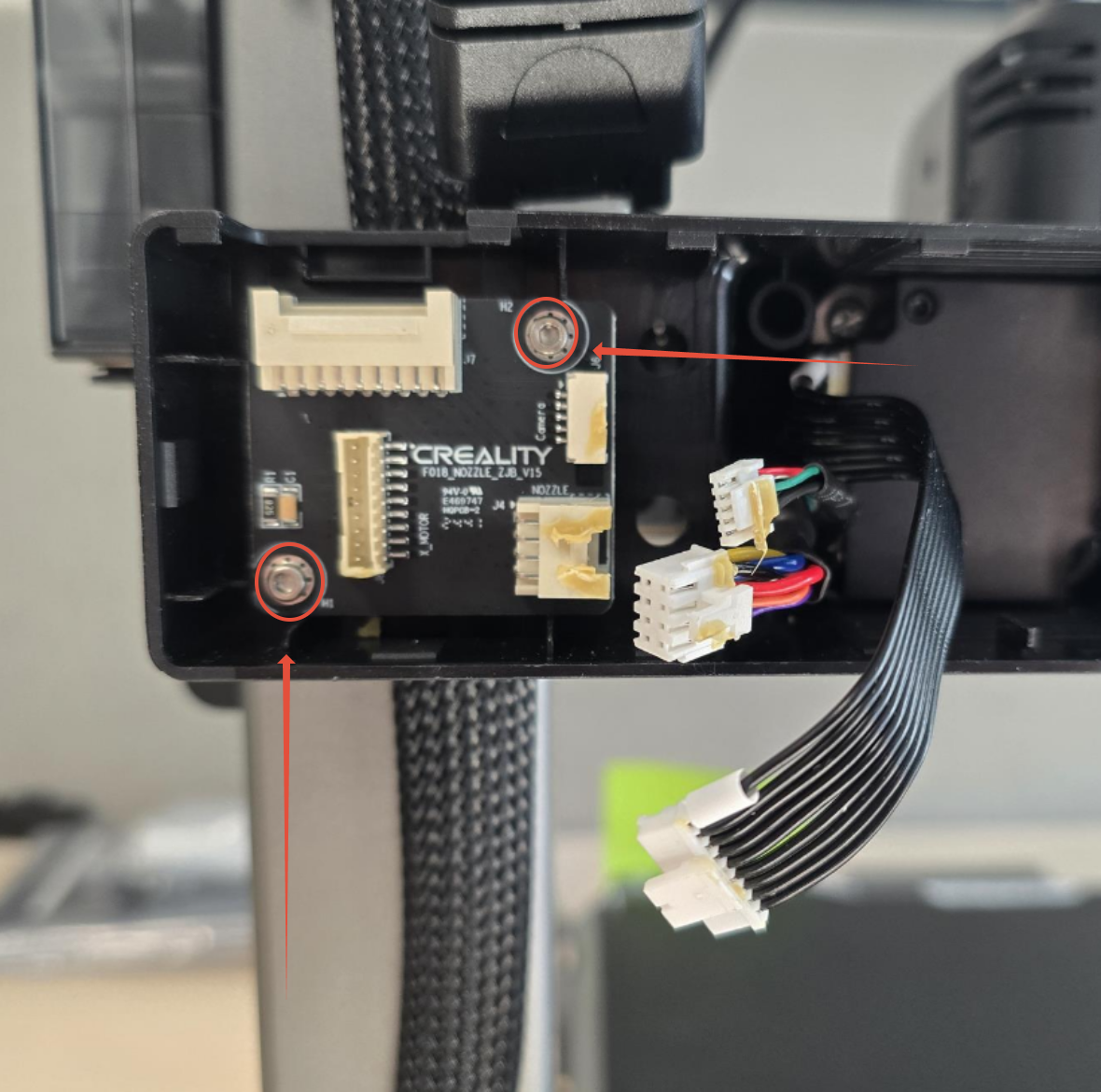

Step 3.  Unscrew and replace the X-Axis Adapter Board


Using a 2mm Hex Driver, remove the two screws securing the X-Axis Adapter Board. Once the screws are removed, take out the old board and carefully position the new X-Axis Adapter Board in its place. Ensure proper alignment before securing it with the same screws using your 2mm Hex Driver.


____________________________________________________________________________________

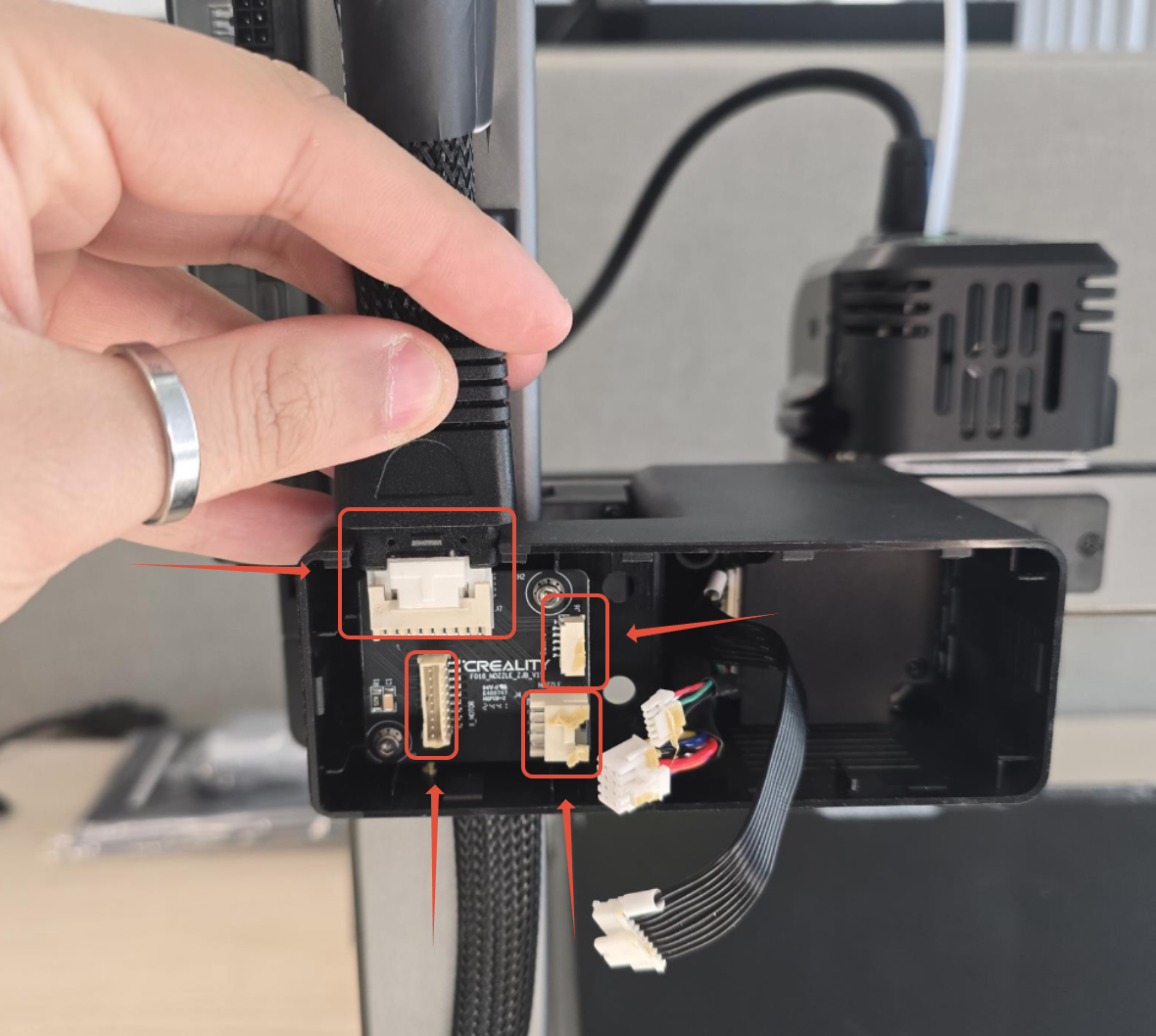

Step 4. Reconnect the Cables on the X-Axis Adapter Board


Once the board is installed, reconnect all cables, ensuring they are fully inserted and properly secured.

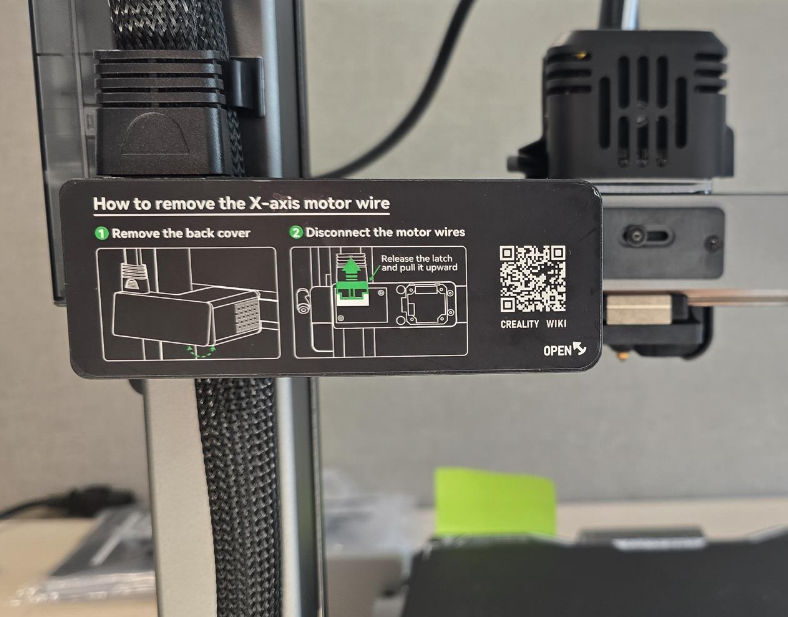

Step 5. Install the X-Axis electronic compartment cover.


Align the cover’s tabs with the corresponding slots in the compartment. First, fit one side into place, then press firmly to secure the cover completely.



____________________________________________________________________________________


Step 6. Turn on the machine and run Self Test / Calibration.


Power on the machine and run the self-test / calibration procedure. If no errors appear, the replacement was successful!


Your X-Axis Adapter Board has now been successfully replaced. If you experience any issues, double-check all connections and ensure the board is securely fastened.
