Creality Hi Mainboard Replacement

____________________________________________________________________________________


Introduction


This guide will walk you through the process of replacing the Mainboard on Creality Hi


Important Notes

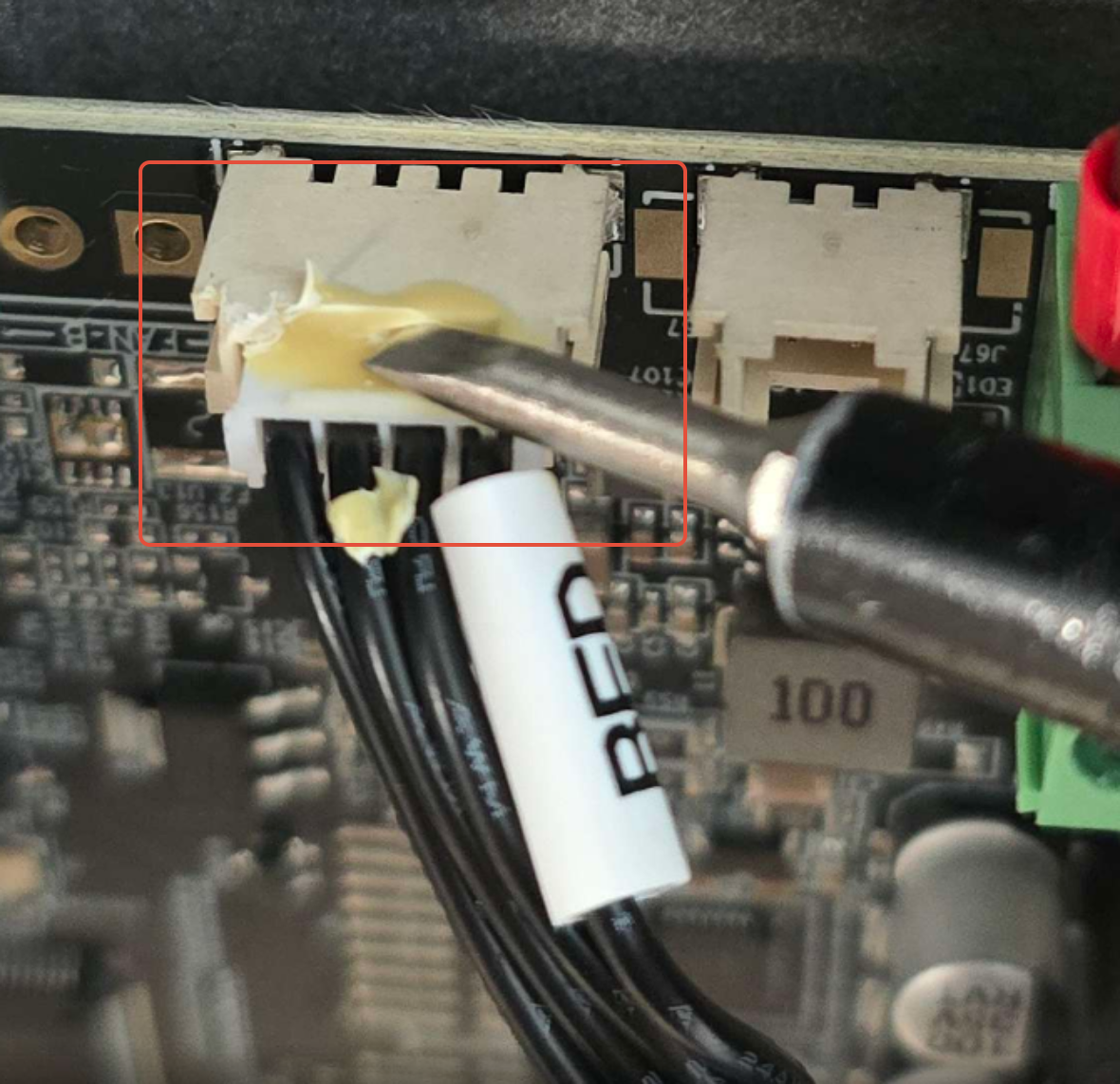

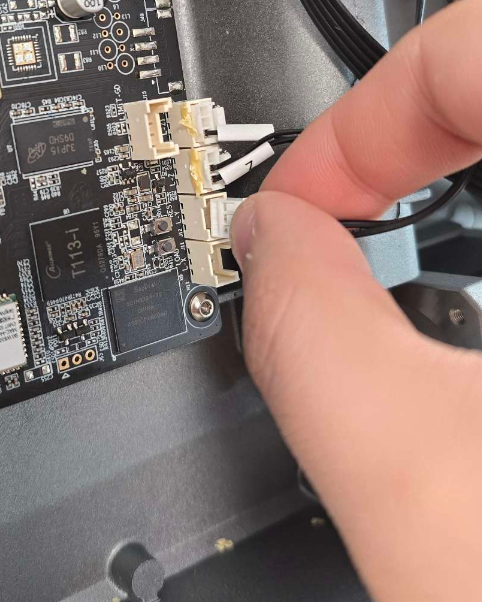

  1. Strong Yellow Glue: Many connectors on the mainboard are secured with strong yellow adhesive. You may need to carefully cut or gently loosen the glue to release the connectors. Avoid pulling or forcing them, as this can damage both the connectors and the mainboard.

    Reference photos below show how to remove the glue.
    (Carefully use the tools when removing the glue to avoid damages to the cables and connectors)


2. Power Safety:
Before starting, ensure the machine is completely powered off and the power cable is disconnected from the printer.


____________________________________________________________________________________



Tools needed

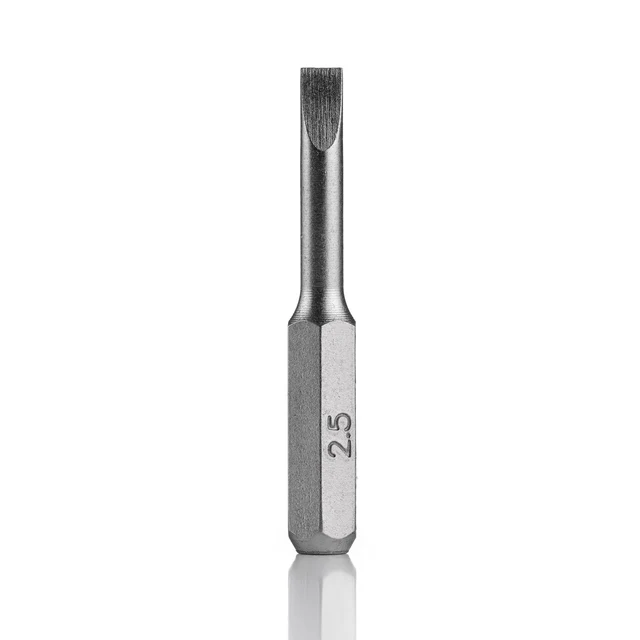

2.5mm Flat Head Driver

2mm Hex Driver or Hex Key

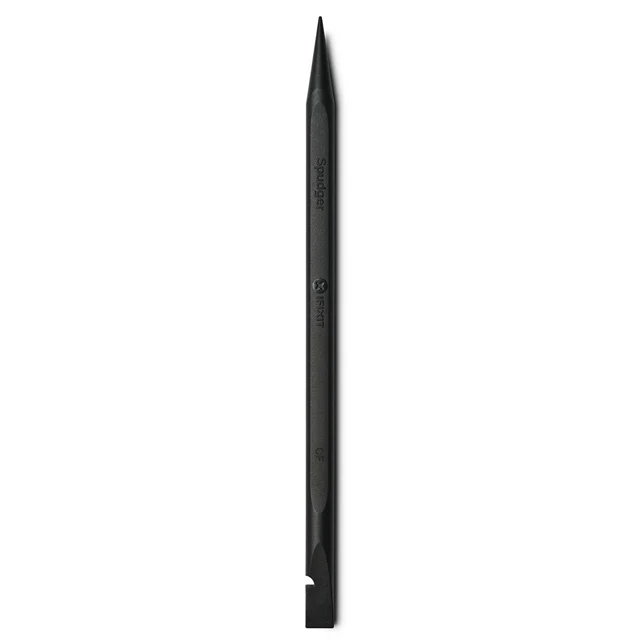

Spudger (for careful cable/connector handling

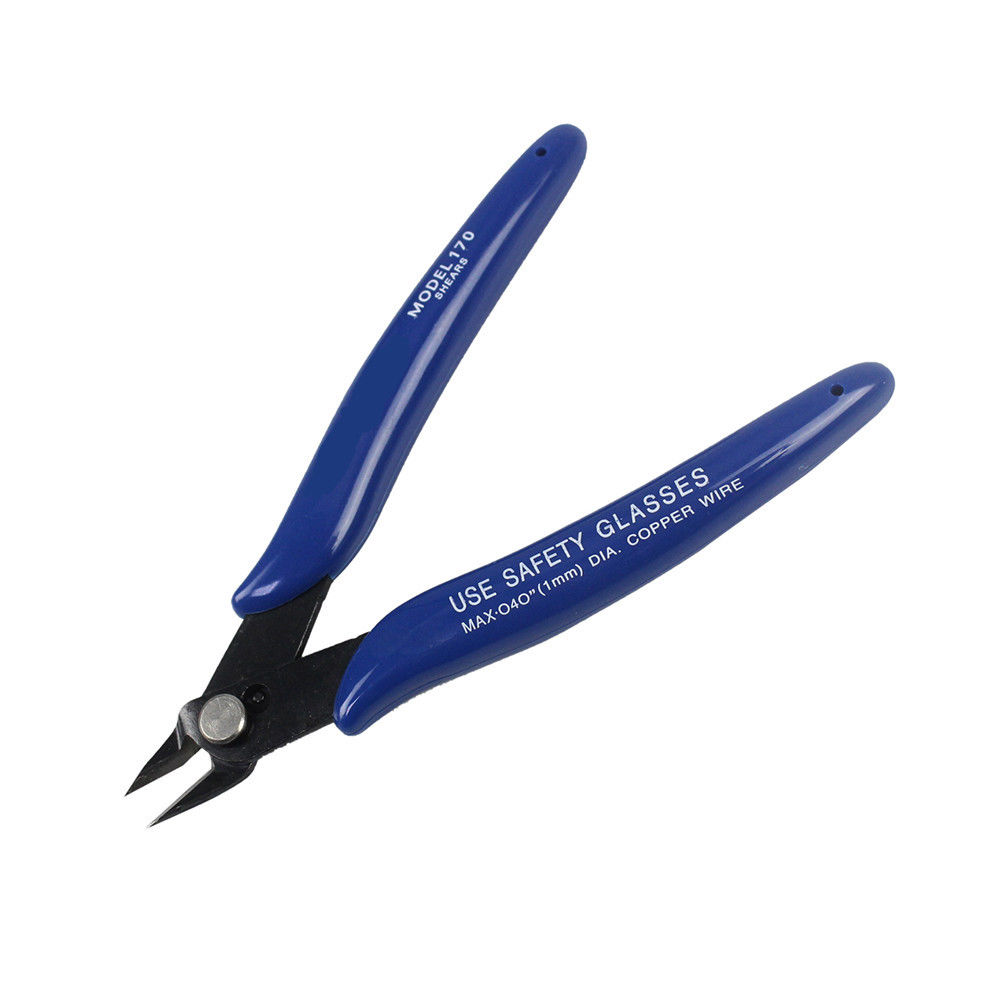

Nippers (for cutting through glue if needed


____________________________________________________________________________________



Step 1. Remove the Bottom Panel

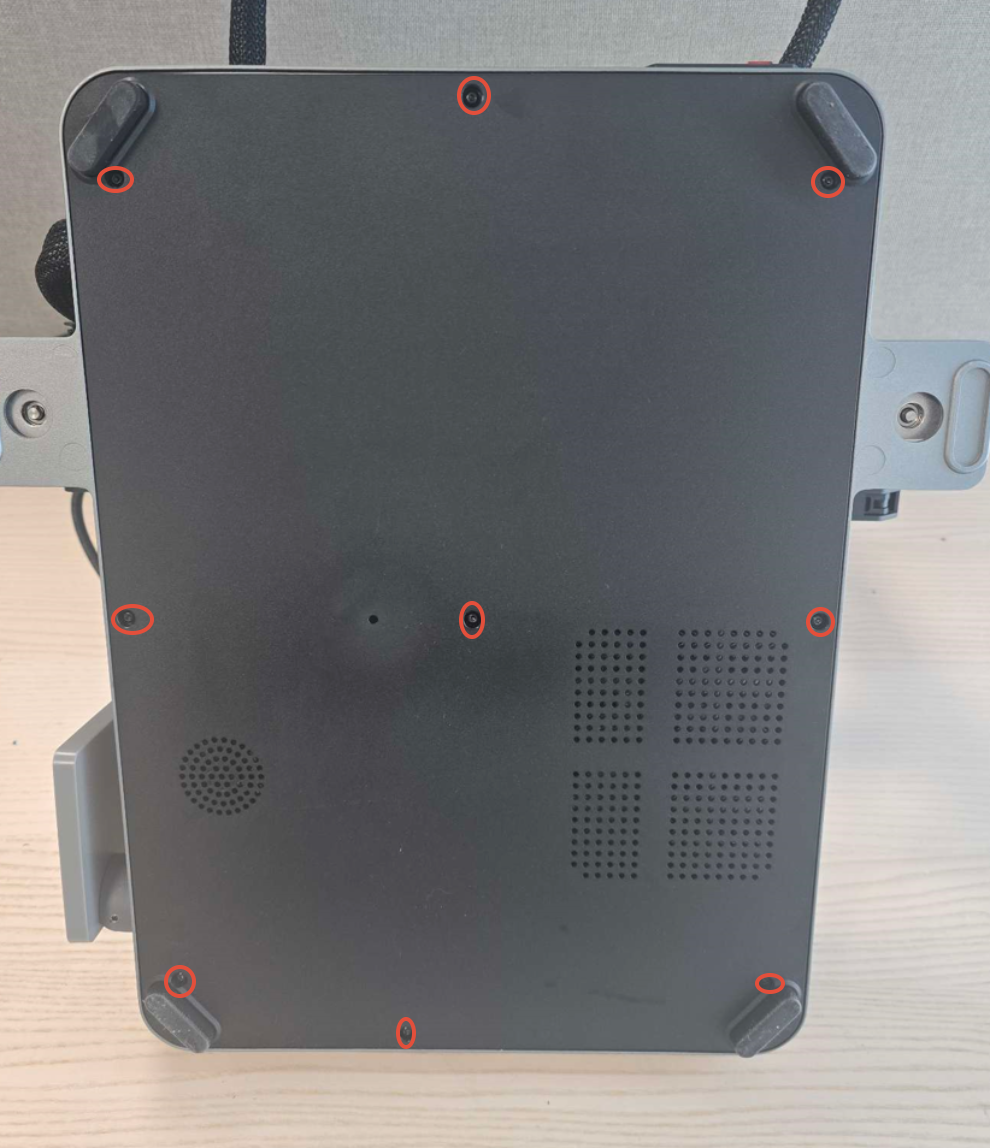

Using your 2mm Hex Driver, unscrew the nine screws securing the bottom panel to the chassis. Carefully remove the panel and set it aside.



____________________________________________________________________________________


Step 2. Disconnect the Cables on the Mainboard


Begin by loosening the 24V DC terminal block screws to release the power wires.

Next, disconnect all remaining cables connected to the mainboard.


⚠️ Note:

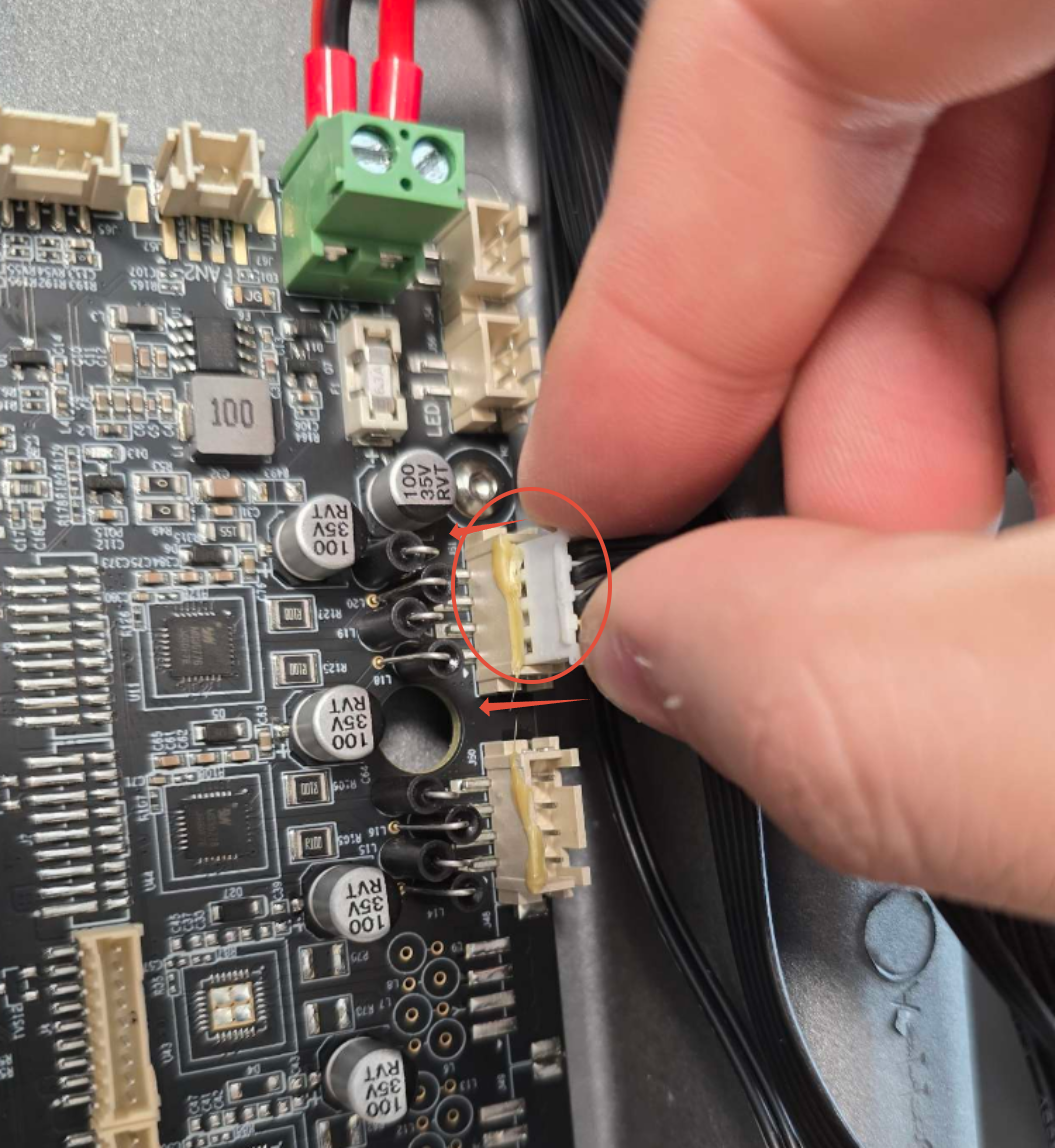

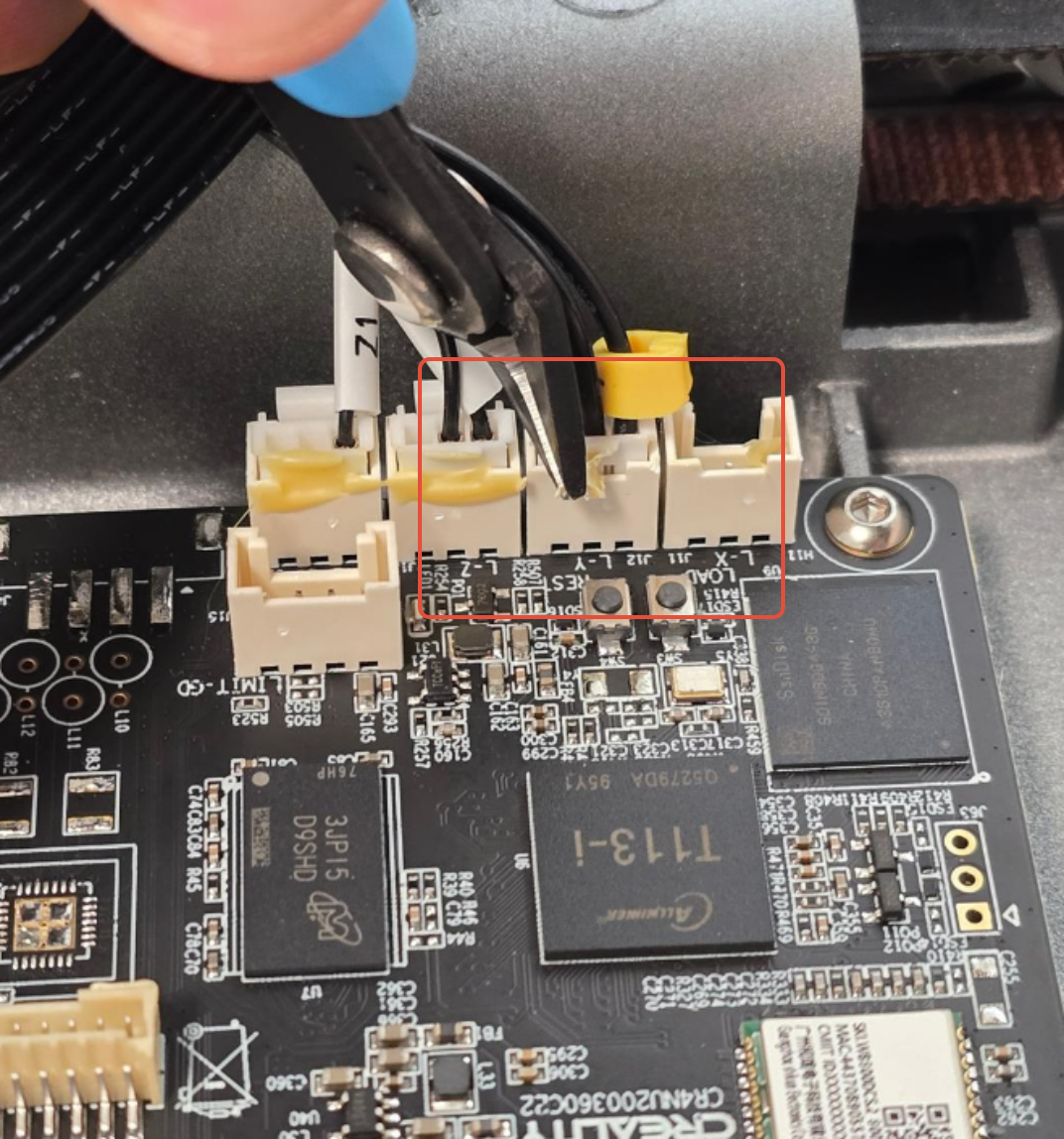

Most connectors are glued in place. Carefully cut or peel away the glue before unplugging. Use nippers and a flat head driver to cut or peel the glue.


____________________________________________________________________________________


Step 3. Unscrew the Mainboard from the Chassis

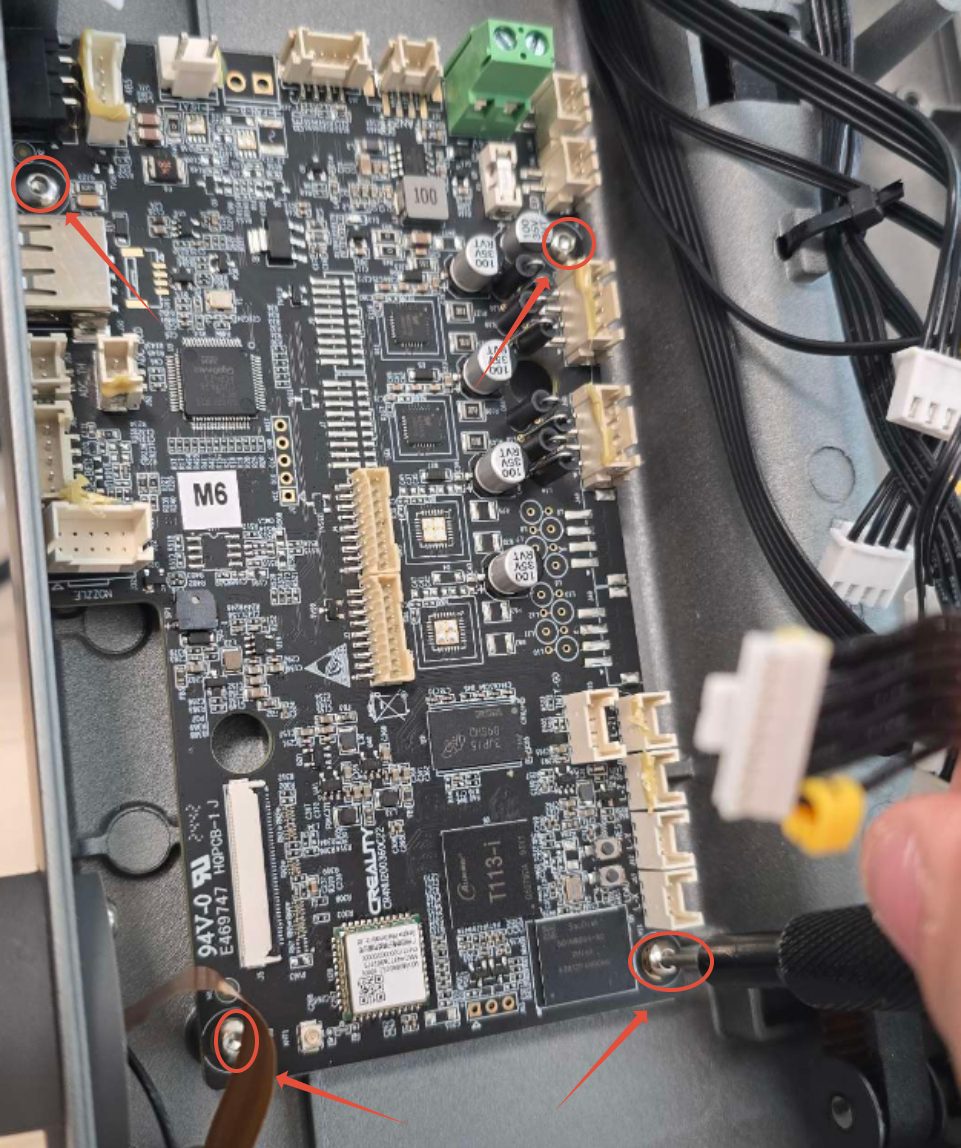

Using your 2mm Hex Driver, unscrew the four screws mounting the mainboard to the chassis.


____________________________________________________________________________________


Step 4.  Remove and Transfer the Thermal Pad

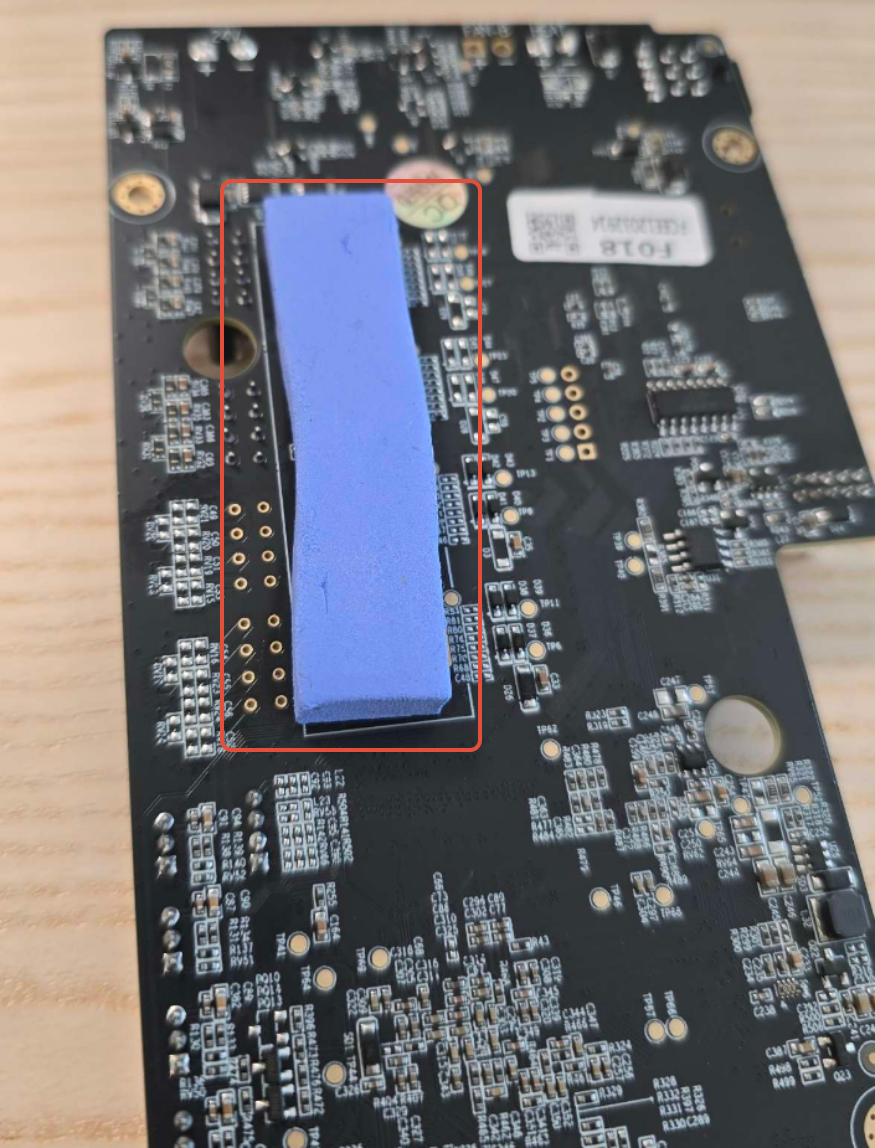

Flip the old mainboard over and remove the thermal pad from the back. Attach this thermal pad to the same position on your new mainboard before installation.




____________________________________________________________________________________


Step 5.  Install the New Mainboard


Place the new mainboard in position and secure it using the four screws with your 2mm Hex Driver.



____________________________________________________________________________________

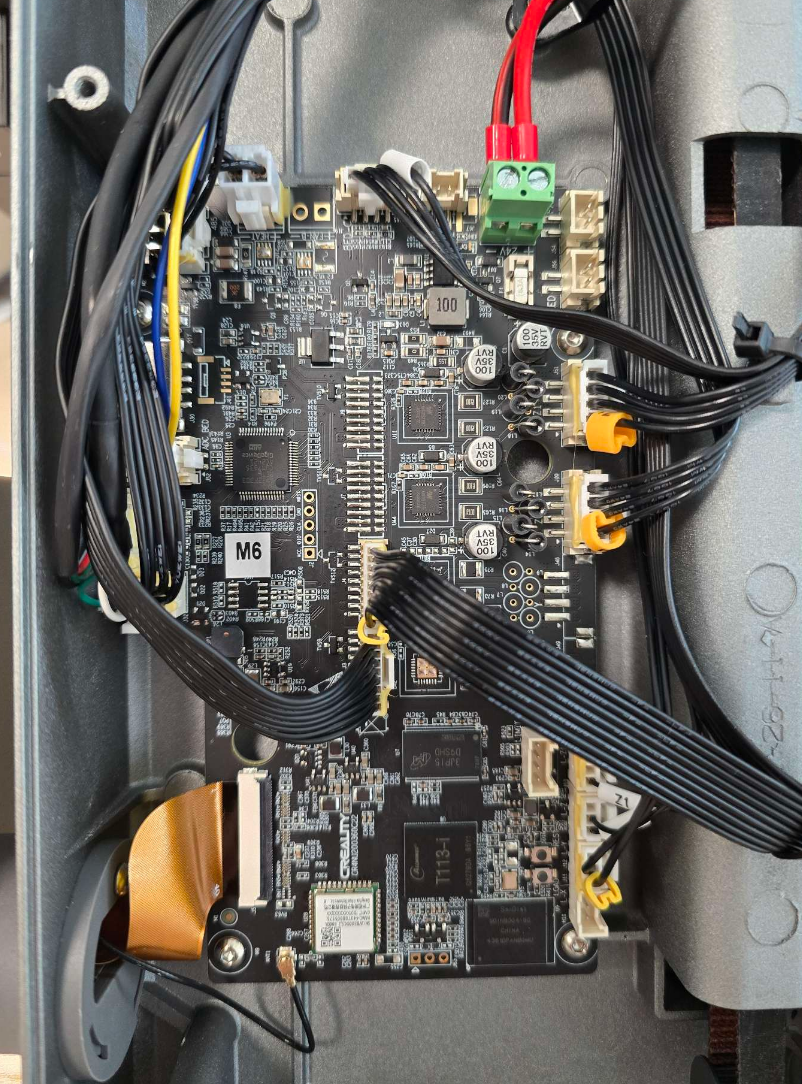

Step 6. Reconnect All Cable to the Mainboard


Carefully reconnect all the cables to the new mainboard, ensuring each connection is secure and fully seated.

Refer to the Wiring Diagram below if you’re unsure about cable placement.






____________________________________________________________________________________



Step 7. Reattach the Bottom Panel


Reinstall the bottom panel and secure it using the nine screws with your 2mm Hex Driver.



____________________________________________________________________________________


Step 8. Power On and Calibrate


Power on the machine and run the self-test / calibration procedure. If no errors appear, the replacement was successful!



Your Mainboard Replacement is complete!


____________________________________________________________________________________

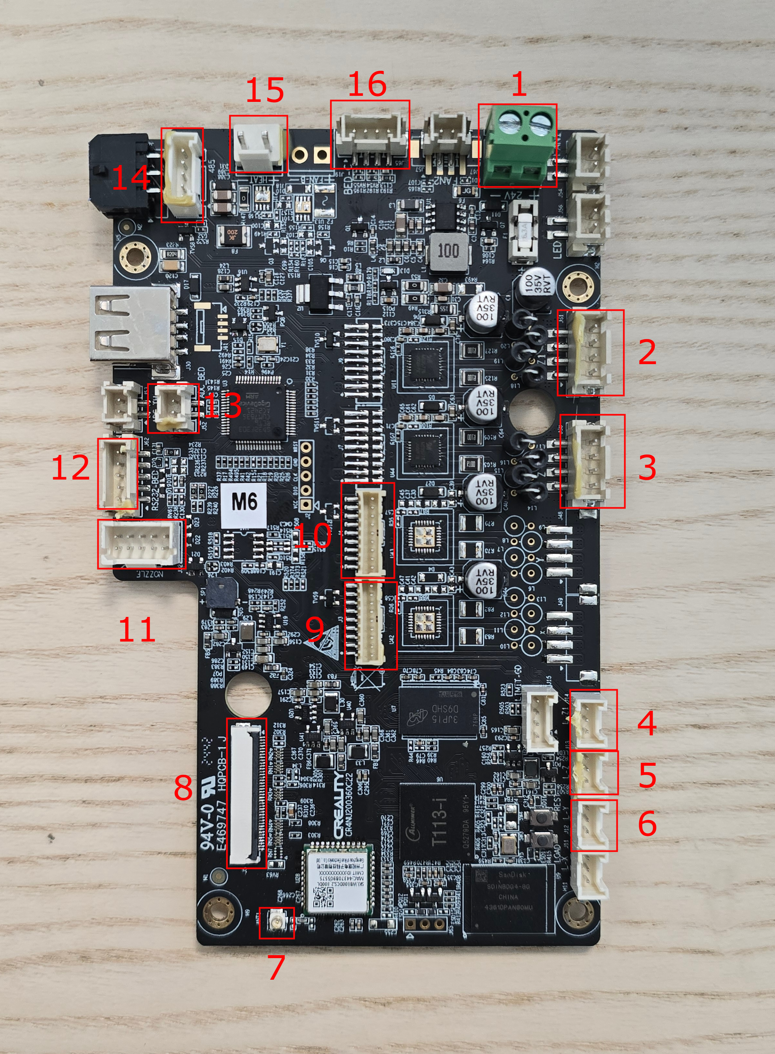

Wiring Diagram.


  1. 24V DC IN
  2. Z1 Motor
  3. Z Motor
  4. Limit Switch Z1
  5. Limit Switch Z
  6. Y Limit Switch
  7. Wifi Antenna
  8. Screen
  9. X Motor
  10. Y Motor
  11. Nozzle Cable
  12. RS232 Bed Communication
  13. ADC BED
  14. RFID
  15. Bed Power
  16. Bed to AC Cable
